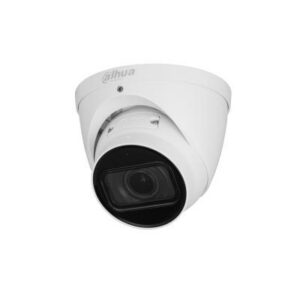

Dahua Technology WizSense HDBW3541R-ZAS-27135-S2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 114 – 32°, Lens viewing angle, vertical: 58 – 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 2.7 – 13.5 mm, Focus: Motorized, Detect distance (wide): 64 m
27 laos
27 laos
| Vendor | DAHUA |
|---|---|
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | IPC-HDBW3541R-ZAS-27135-S2 |
| Camera design | Dome |
| Network Camera Type | Outdoor |
| Resolution | 5 Mega Pixel |
| Focal Length | 2.7 mm-13.5 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7” CMOS |
| Min. Illumination | 0.0005 Lux |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | PoE / 12VDC power |
| Power consumption | 9.2 Watts |
| Environment | Outdoor |
| Operating temperature range | -30°C~+60°C |
| Dimensions | 94 mm × Φ122 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005956 cubm |
| Product Net Weight | 0.713 kg |
| Unit Calculated Weight | 0.8 kg |
| Summary | Dahua Technology WizSense HDBW3541R-ZAS-27135-S2. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 114 – 32°, Lens viewing angle, vertical: 58 – 17°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 – 13.5 mm, Focus: Motorized, Detect distance (wide): 64 m |
| Connectivity technology | Wired |
| Dynamic range | 120 dB |
| Placement supported | Outdoor |
| Type | IP security camera |
| Fog proof | Yes |
| Form factor | Dome |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black/White |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 355 ° |
| Camera shutter speed | 1/3 – 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 138 – 36 ° |
| Lens viewing angle, horizontal | 114 – 32 ° |
| Lens viewing angle, vertical | 58 – 17 ° |
| Number of Privacy masking areas | 4 |
| Pan range | 0 – 355 ° |
| Tilt angle range | 0 – 80 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.8 m |
| Detect distance (tele) | 210 m |
| Detect distance (wide) | 64 m |
| Focal length range | 2.7 – 13.5 mm |
| Focus | Motorized |
| Identify distance (tele) | 21 m |
| Identify distance (wide) | 6.4 m |
| Minimum aperture number | 1.5 |
| Number of lenses | 1 |
| Observe distance (tele) | 84 m |
| Observe distance (wide) | 25.6 m |
| Recognize distance (tele) | 42 m |
| Recognize distance (wide) | 12.8 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 3 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2960 x 1668 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.711a/G.711Mu/G.723/G.726/PCM |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 512 MB |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Mirror | Yes |
| Behavior analysis | Intrusion detection |
| Web browser | Yes |
| Web-based management | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 9.2 W |
| Power consumption (Power over Ethernet (PoE)) | 4.9 W |
| Power consumption (typical) | 4 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 94 mm |
| Height | 122 mm |
| Weight | 713 g |
| Package weight | 986 g |
| Number of cameras | 1 |
| Manufacturer Code | HDBW3541R-ZAS-27135-S2 |
| ELKO Code | 1387135 |
| Warranty | 36 |
