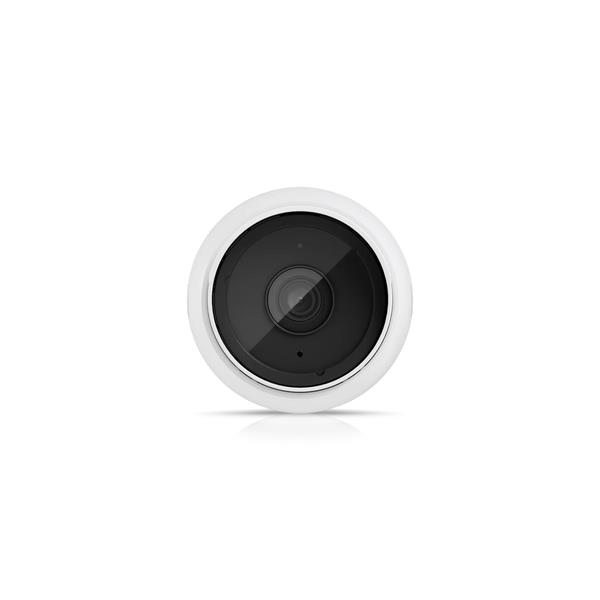

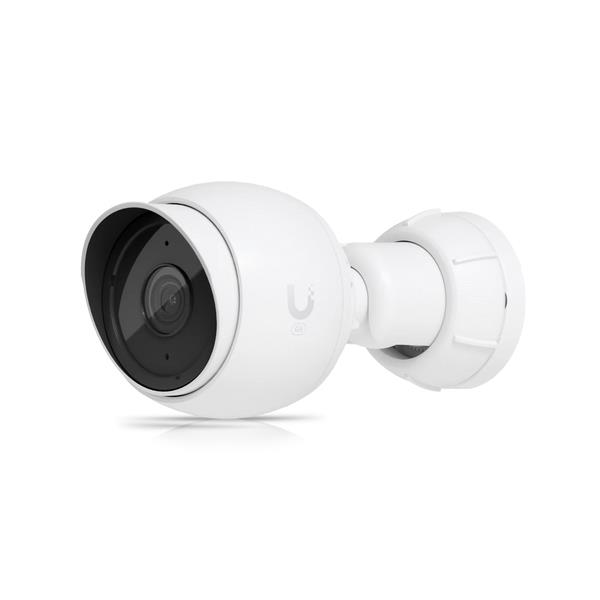

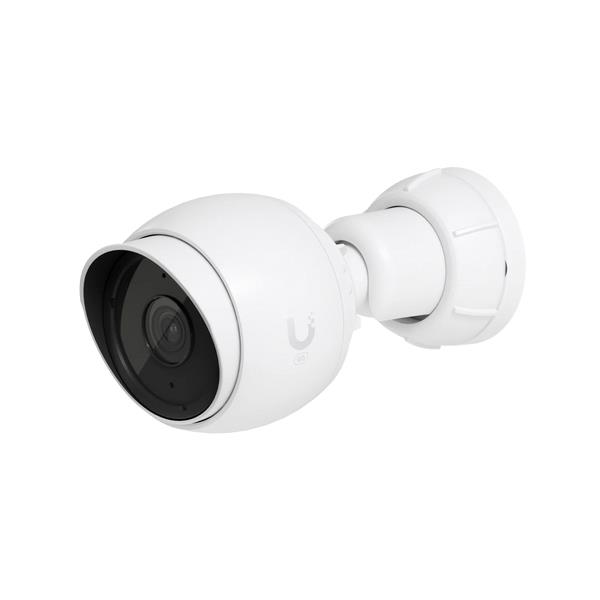

NET CAMERA 5MP IR BULLET/UVC-G5-BULLET UBIQUITI

131,49

Ubiquiti G5 Bullet. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 84.4°, Lens viewing angle, vertical: 45.4°, Lens viewing angle, diagonal: 99.8°. Sensor type: CMOS. LED type: IR

18 laos

18 laos

Tootekood: UVC-G5-BULLET Kategooriad: , , ,

Kirjeldus

Camera G5 Bullet
Next-gen indoor/outdoor 2K HD PoE Camera.

  • 2K HD, 30 FPS camera with a 5MP CMOS sensor
  • View angle (84.4˚)
  • Weatherproof IPX4-rated enclosure
  • Flexible, three-axes adjustment
  • Improved low-light performance and IR night vision up to 10m

Lisainfo

Kaal 0,315 kg
Vendor

UBIQUITI

RJ45

1

Model

G5 Bullet

Camera design

Bullet

Network Camera Type

Fixed

Resolution

5 Mega Pixel

IR Illumination

Yes

Power options

PoE

Power consumption

4 Watts

Operating temperature range

-20 — 40º C

Dimensions

Without mount: Ø75.5 x 74.4 mm; With wall mount: Ø75.5 x 150 mm

Units per Shipping Box

1

Unit Calculated Volume

0.0023 cubm

Product Net Weight

0.315 kg

Unit Calculated Weight

0.5 kg

Summary

Ubiquiti G5 Bullet. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: Black, White, Form factor: Bullet. Lens viewing angle, horizontal: 84.4°, Lens viewing angle, vertical: 45.4°, Lens viewing angle, diagonal: 99.8°. Sensor type: CMOS. LED type: IR

Built-in processor

Yes

Connectivity technology

Wired

Infrared (IR) cut-off filter

Yes

Placement supported

Indoor & outdoor

Processor model

ARM Cortex-A7

Type

IP security camera

Form factor

Bullet

Housing material

Aluminium/Polycarbonate (PC)

IK code

IK04

International Protection (IP) code

IP55

Mounting type

Wall/Pole

Product colour

Black/White

Lens viewing angle, diagonal

99.8 °

Lens viewing angle, horizontal

84.4 °

Lens viewing angle, vertical

45.4 °

Sensor type

CMOS

Number of lenses

1

LED type

IR

Night vision

Yes

Frame rate

30 fps

Image quality adjustment

Brightness/Contrast/Sharpness

Maximum resolution

2688 x 1512 pixels

Noise reduction

Yes

Noise reduction technology

2D noise reduction,3D noise reduction

Privacy masking

Yes

Supported graphics resolutions

2688 x 1512

Supported video modes

1512p

Text caption overlay

Yes

Total megapixels

4 MP

Video compression formats

H.264/M-JPEG

Built-in microphone

Yes

Bluetooth

No

Ethernet interface type

Fast Ethernet

Ethernet LAN

Yes

Wi-Fi

No

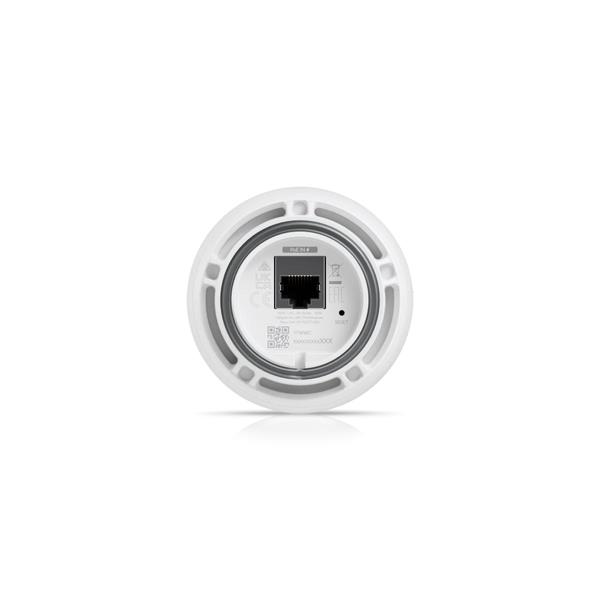

Ethernet LAN (RJ-45) ports

1

Management software

UniFi Protect

Reset button

Yes

DC output voltage

37,57

Power consumption (max)

4 W

Power source type

PoE

Operating relative humidity (H-H)

0 – 90 %

Operating temperature (T-T)

-20 – 40 °C

Diameter

75.5 mm

Length

74.4 mm

Weight

225 g

Compliance certificates

CE/Federal Communications Commission (FCC)

Sustainability compliance

Yes

Number of cameras

1

Manufacturer Code

UVC-G5-BULLET

ELKO Code

1392267

Warranty

12

Brand

UBIQUITI
