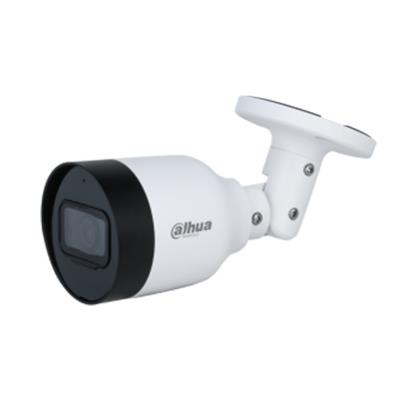

Dahua Technology IPC -HFW1530S-0280B-S6. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.03 lx, Field of view (FOV) angle: 106°, Angle of rotation: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″), Effective sensor resolution: 2 pixels. Minimum illumination (panoramic camera): 0.003 lx, Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
13 laos
13 laos
Series Overview
With features of simple installation, easy operation, and high
performance-cost ratio, Dahua Entry series network camera is applicable
to small and medium-sized scenes, such as homes/residences, smallsized retail stores, and other small and medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion
Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the
environment of low illuminance or completely dark environment.
According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving
target.
Image Flip
For narrow and long scenes, Dahua image flip technology flips the image
by 90°/180°/270° to realize better surveillance in rotation mode.
Cyber Security
Dahua network cameras employ a series of security technologies,
including security authentication and authorization, access control
protocols, trusted protection, encrypted transmission and encrypted
storage. These technologies improve the camera’s defense against
external cyber threats and prevent malicious programs from comprising
the device.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has
dust-proof function, and the enclosure can works normal after soaking
in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to
outdoor environment with instable voltage.
| Vendor | DAHUA |
|---|---|
| RJ45 | 1 |
| Model | IPC-HFW1530S-0280B-S6 |
| Camera design | Bullet |
| Network Camera Type | Fixed/Outdoor |
| Resolution | 5 Mega Pixel |
| Focal Length | 2.8mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" CMOS |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.003 Lux |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Power options | 12V/PoE |
| Power supply requirements | 12V DC/PoE (802.3af) |
| Power consumption | 6 Watts |
| Environment | Outdoor |
| Operating temperature range | -40°C~+60°C |
| Dimensions | 162.1 mm × Φ70.1 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00231 cubm |
| Product Net Weight | 0.32 kg |
| Unit Calculated Weight | 0.441 kg |
| Summary | Dahua Technology IPC -HFW1530S-0280B-S6. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.03 lx, Field of view (FOV) angle: 106°, Angle of rotation: 360°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Effective sensor resolution: 2 pixels. Minimum illumination (panoramic camera): 0.003 lx, Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 s-1/100,000 s |
| Camera shutter type | Electronic |
| Field of view (FOV) angle | 106 ° |
| Lens viewing angle, diagonal | 125 ° |
| Lens viewing angle, horizontal | 106 ° |
| Lens viewing angle, vertical | 56 ° |
| Minimum illumination | 0.03 lx |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
| Effective sensor resolution | 2 pixels |
| Minimum illumination (panoramic camera) | 0.003 lx |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 dB |
| Closest focusing distance | 0.8 m |
| Detect distance | 56 m |
| Focal length range | 2.8 mm |
| Identify distance | 5.6 m |
| Maximum aperture number | 2 |
| Number of lenses | 2 |
| Observe distance | 22.4 m |
| Recognize distance | 11.2 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 1 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 20 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2880 x 1620 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620 |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264B/H.265/MPEG7 |
| Video formats supported | H.264/H.264B/H.265 |
| Video recording | Yes |
| Video streaming | Yes |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Internal memory | 128 MB |
| ROM capacity | 16 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Mirror | Yes |
| Security algorithms | HTTPS |
| Video motion detection | Yes |
| Management software | Smart PSS; DSS; DMSS |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 4.5 W |
| Power consumption (typical) | 2.3 W |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Depth | 70.1 mm |
| Height | 70.1 mm |
| Weight | 320 g |
| Width | 162.1 mm |
| Number of cameras | 1 |
| Manufacturer Code | IPC-HFW1530S-0280B-S6 |
| ELKO Code | 1391312 |
| Warranty | 36 |
