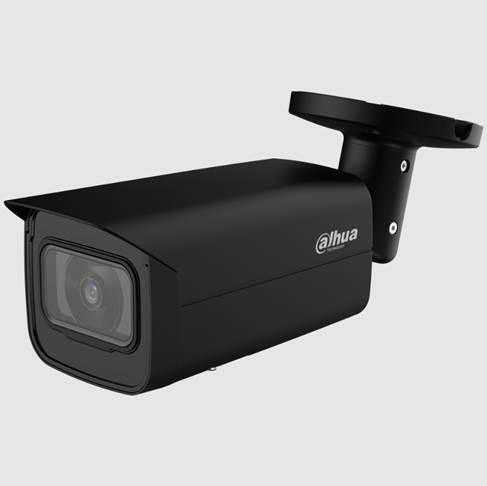

IPC-HFW5541T-ASE-S3
5MP IR Fixed-focal Bullet WizMind Network Camera
* The parameters and datasheets below can only be applied to 5541-ASE-S3 series.
> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960×1668) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
| Vendor | DAHUA |
|---|---|
| Model | IPC-HFW5541T-ASE-0360B-S3-B |
| Network Camera Type | Fixed/Outdoor |
| Resolution | 5 Mega Pixel |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm; 8mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" CMOS |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0005 Lux |
| Effective pixels | 2960×1668 |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Power options | 12V |
| Power supply requirements | 12 VDC/PoE (802.3af)/ePoE |
| Power consumption | 4.1 Watts |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Dimensions | 244.1 × 79.0 × 75.9 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00396 cubm |
| Product Net Weight | 0.82 kg |
| Unit Calculated Weight | 1.21 kg |
| Form factor | Bullet |
| Product colour | Black |
| Connectivity technology | Wired |
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Number of effective pixels (H x V) | 2960×1668 pixels |
| Optical sensor size | 1/2.7" " |
| Sensor type | CMOS |
| Focal length range | 2.8 mm; 3.6 mm; 6 mm; 8mm mm |
| Total megapixels | 5 MP |
| Number of microphones | 1 |
| Depth | 79 mm |
| Height | 75.9 mm |
| Weight | 820 g |
| Width | 244.1 mm |
| Lens mount interface | M12 |
| Power source | 12 VDC/PoE (802.3af)/ePoE |
| Suitable for outdoor use | Yes |
| Manufacturer Code | IPC-HFW5541T-ASE-0360BS3B |
| ELKO Code | 1415313 |
| Warranty | 36 |
