Security Solutions / Video Surveillance / IP Cameras / NET CAMERA 4MP PTZ/VIGI C540V TP-LINK

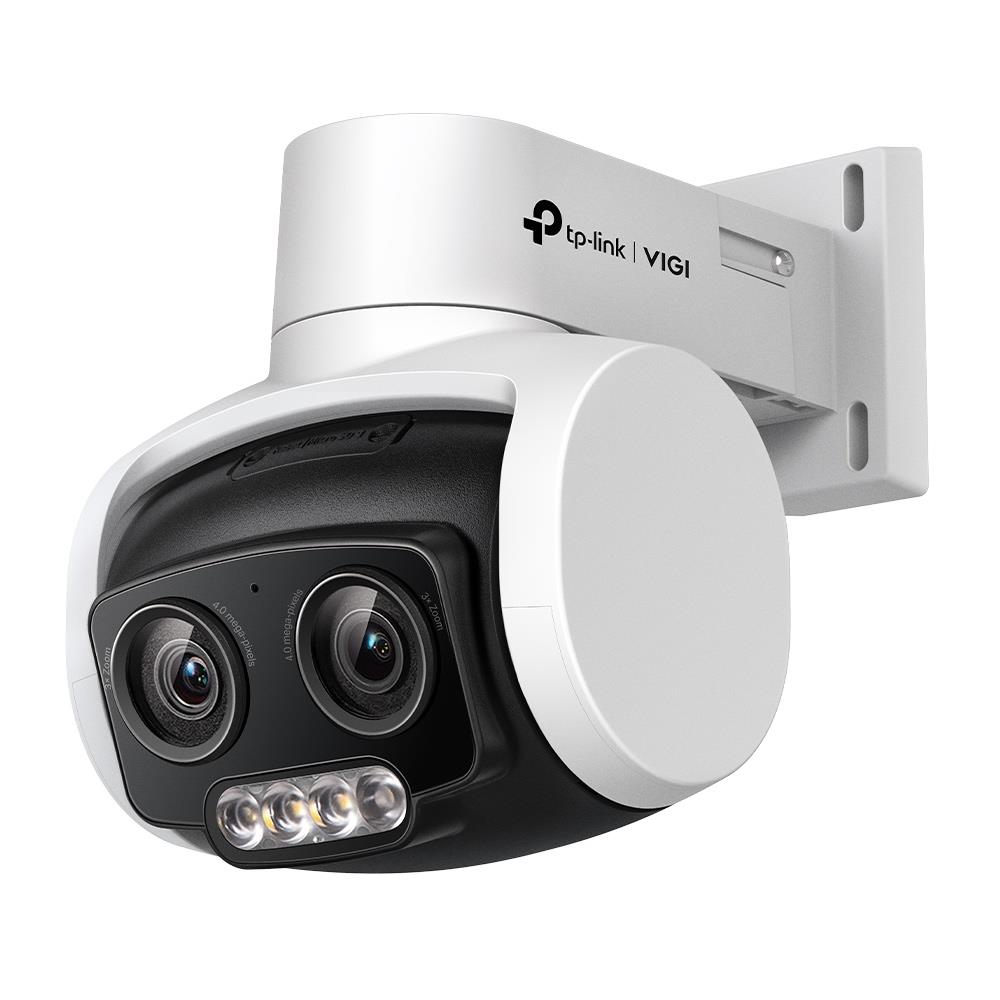

NET CAMERA 4MP PTZ/VIGI C540V TP-LINK

125,04

TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Housing material: Plastic. Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Digital zoom: 3x, Focal length range: 4 – 12 mm

5 laos

5 laos

Tootekood: VIGIC540V Kategooriad: , , ,

Kirjeldus

See More With Less
4MP Outdoor Full-Color Dual-Lens
Varifocal Pan Tilt Network Camera

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route).

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

PoE & IP66
Outdoor PoE connection makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Storage
Local storage is available for each method, as well as onbsoard storage with an SD card slot (up to 256 GB).

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details
  • 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights
  • 3× Zoom: Allows for closer viewing of objects in expansive areas
  • Instant Zoom: Zooming is instant without suffering from delays and image dragging
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, removes/abandons objects, or enters/exits certain region
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB)

Lisainfo

Kaal 0,43 kg
Vendor

TP-LINK

RJ45

1

Model

VIGI C540V

Camera design

PT/PTZ

Network Camera Type

Outdoor/PTZ

Resolution

4 Mega Pixel

Focal Length

4-12 mm

IR Illumination

Yes

Sensor size

1/3” Progressive Scan CMOS

Microphone

Built-in

Min. Illumination

0.005 Lux

Electronic Shutter Speed

1/3 to 1/10000 s

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W

Environment

Outdoor

Operating temperature range

-30–60 °C

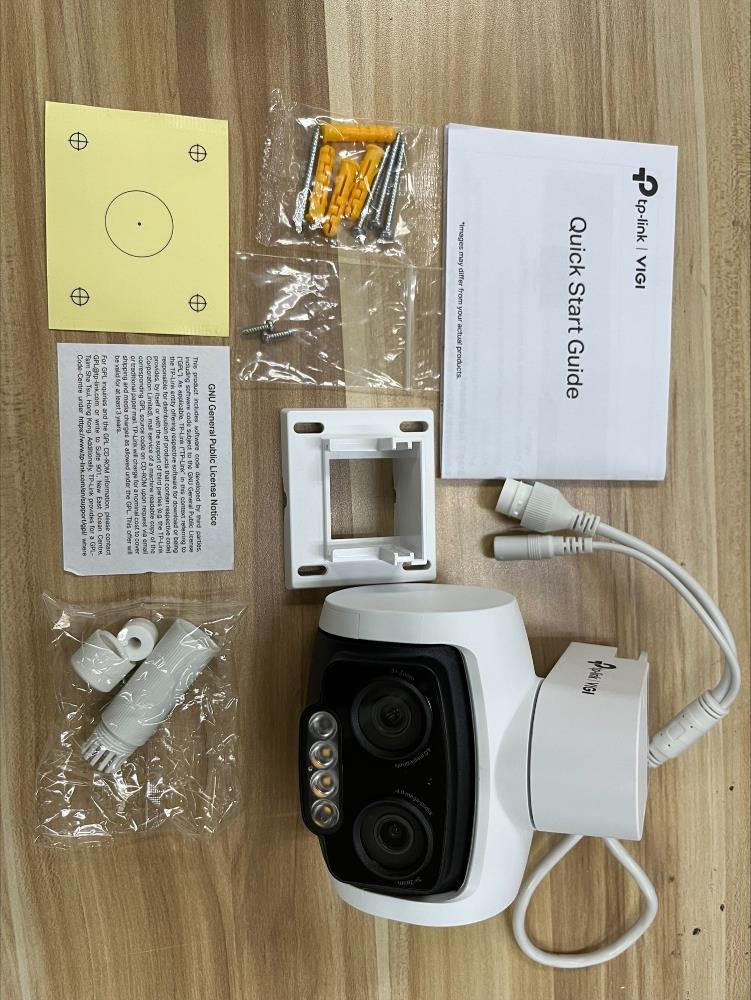

Included Accessories

Quick Start Guide;
Waterproof Cable Attachments;
Mounting Accessories

Colour

White

Dimensions

107× 136× 139 mm

Units per Shipping Box

1

Unit Calculated Volume

0.00456 cubm

Product Net Weight

0.43 kg

Unit Calculated Weight

0.7 kg

Summary

TP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Housing material: Plastic. Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 3x, Focal length range: 4 – 12 mm

Certification

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

Connectivity technology

Wired

Placement supported

Indoor & outdoor

PTZ control

Yes

Type

IP security camera

Housing material

Plastic

International Protection (IP) code

IP66

Mounting type

Ceiling

Product colour

Black/White

Camera pan control

Yes

Camera tilt control

Yes

Lens viewing angle, diagonal

100 °

Lens viewing angle, horizontal

84 °

Lens viewing angle, vertical

46 °

Pan range

0 – 332 °

Pan speed

55 °/sec

Tilt angle range

0 – 120 °

Tilt speed

40 °/sec

Number of sensors

1

Optical sensor size

1/3 "

Sensor type

CMOS

Digital zoom

3 x

Focal length range

4 – 12 mm

Maximum aperture number

1.6

Number of lenses

1

Zoom capability

Yes

Infra-red wavelength

850 nm

LED type

IR

Night vision

Yes

Night vision distance

30 m

Number of illumination LEDs

1

Bit rate

256 Kbps – 4 Mbps

Bit rate control

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Frame rate

30 fps

Maximum resolution

2560 x 1440 pixels

Supported graphics resolutions

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440

Supported video modes

1080p/1440p/720p

Total megapixels

4 MP

Video formats supported

H.264/H.264+/H.265/H.265+

Video recording

Yes

Bluetooth

No

Ethernet interface type

Fast Ethernet

Ethernet LAN

Yes

Wi-Fi

No

Built-in HDD

No

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Ethernet LAN (RJ-45) ports

1

DC output voltage

12

Power consumption (max)

14 W

Power consumption (typical)

2.9 W

Power source type

PoE

Operating relative humidity (H-H)

5 – 95 %

Operating temperature (T-T)

-30 – 60 °C

Storage relative humidity (H-H)

5 – 95 %

Storage temperature (T-T)

-40 – 60 °C

Depth

139 mm

Height

107 mm

Weight

430 g

Width

136 mm

Package type

Box

Package weight

660 g

Manual

Yes

Number of cameras

1

Manufacturer Code

VIGIC540V

ELKO Code

1402232

Warranty

36

Brand

TP-LINK
