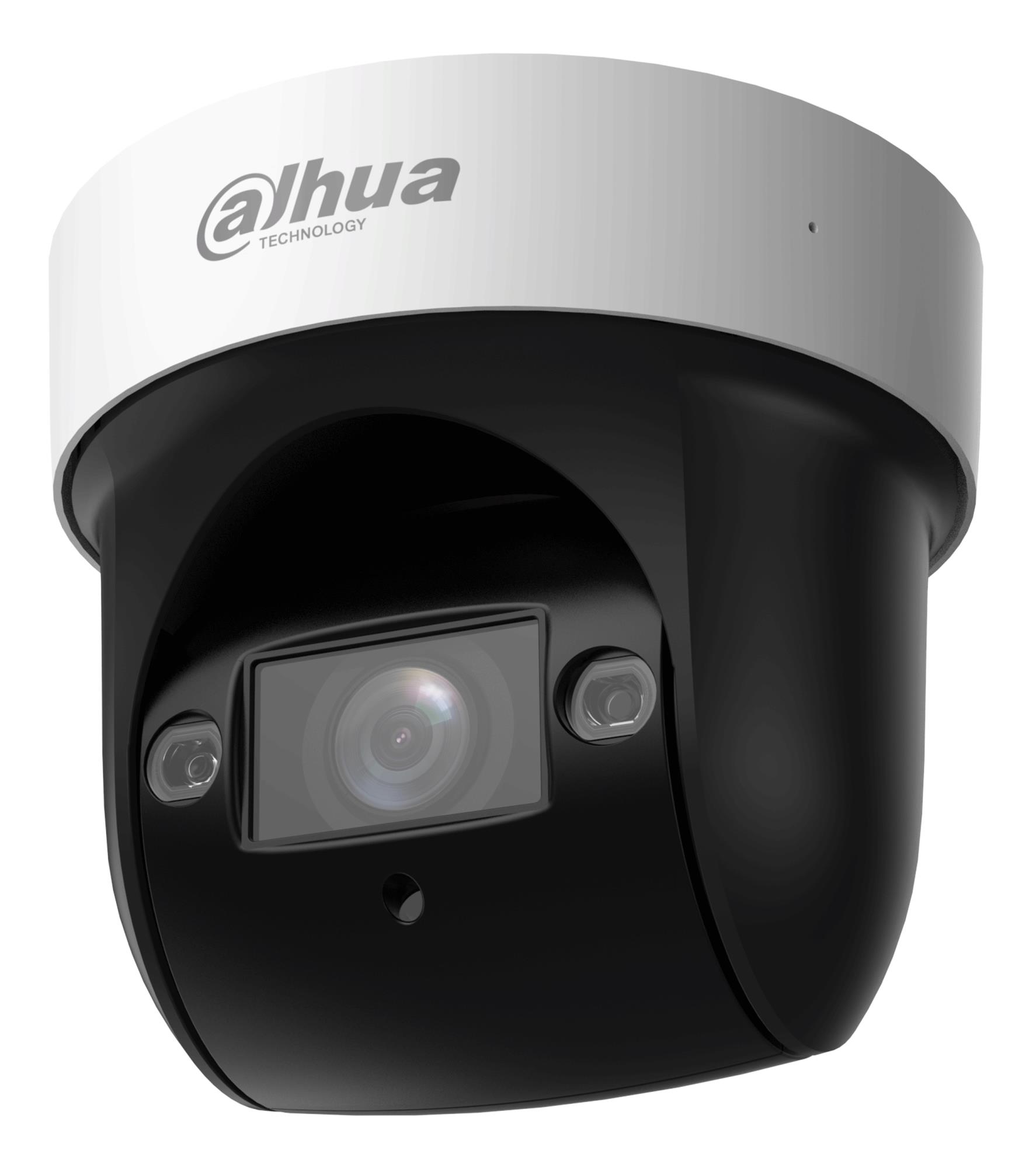

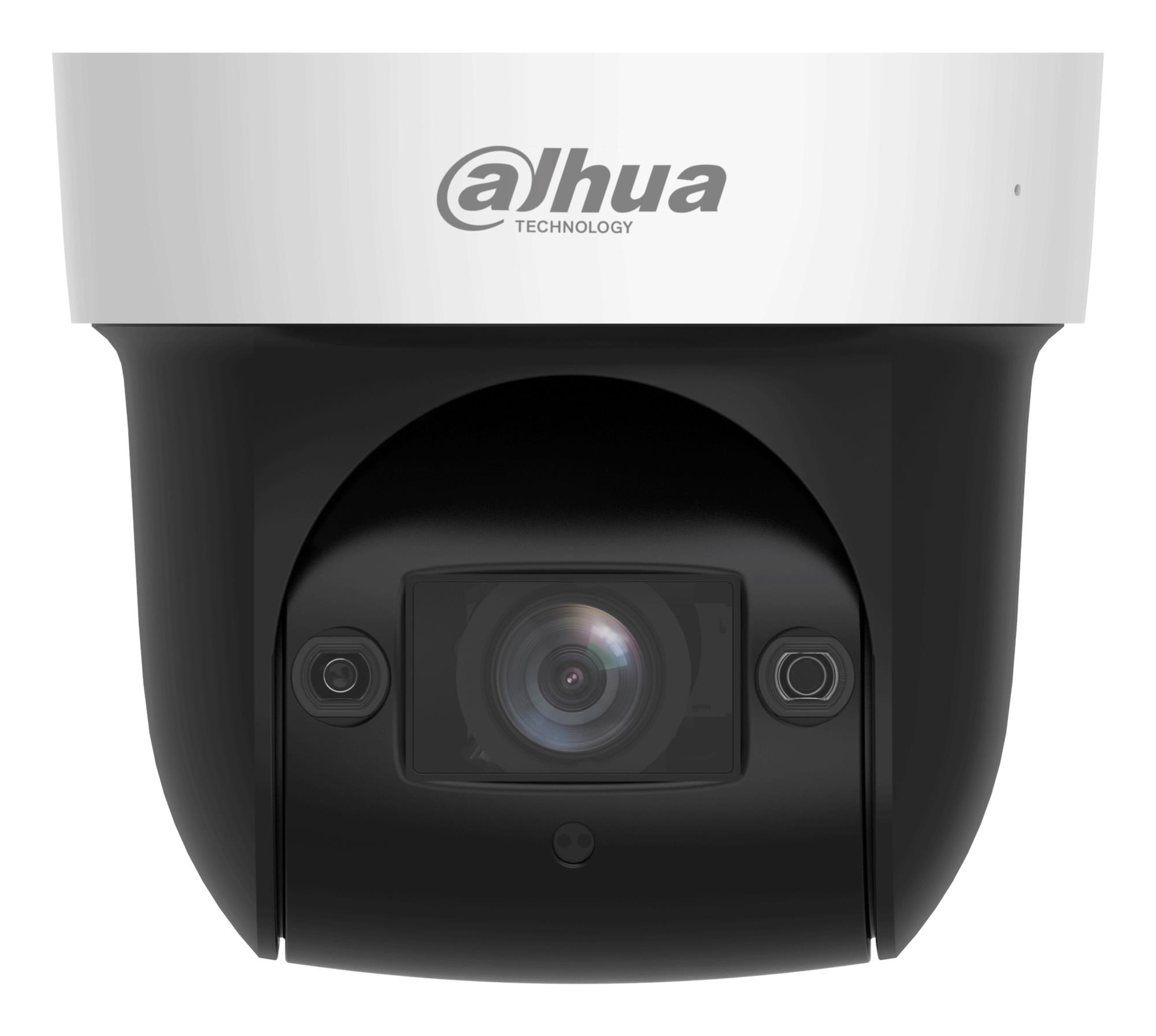

NET CAMERA 4MP PTZ DOME/SD29404DB-GNY DAHUA

390,31

Dahua Technology DH-SD29404DB-GNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Tilt angle range: 0 – 90°, Tilt speed: 60 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 171 m

8 laos

8 laos

Tootekood: SD29404DB-GNY Kategooriad: , , ,

Kirjeldus

Dahua WizSense PTZ camera adopts advanced deep learning algorithms to support primeter protection with high accuracy. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.

Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers best-in-class light sensitivity, capturing color details
in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, a
flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality videos without straining the network. Smart
H.265+ technology outranks standard H.265 video compression, reducing bit rate and storage requirements by up to 70%.

System Overview
Dahua WizSense PTZ camera adopts advanced deep learning algorithms to support primeter protection with high accuracy. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.

SMD 3.0
Empowered by Deep-Learning Algorithms, Dahua SMD filters out motion detection alarms triggered by targets that are not a concern. It quickly recognizes humans and vehicles, triggering alarms when an intrusion occurs.

Wide Dynamic Range
The camera produces vivid images, even in high-contrast lighting conditions, by using industry-leading wide dynamic range (WDR) technology. For scenes that quickly alternate between bright and low lighting, WDR adjusts to fully capture both the bright and dark areas of a scene, producing superior quality videos.

  • 1/2.8″ 4Megapixel CMOS
  • Max. 25/30fps@4MP
  • IR distance up to 50 m
  • 4x optical zoom
  • WDR
  • SMD 3.0
  • Built-in Mic
  • PoE

Lisainfo

Kaal 0,713 kg
Vendor

DAHUA

Alarm In

3

Alarm Out

2

RJ45

1

Model

SD29404DB-GNY

Camera design

PT/PTZ

Network Camera Type

Fixed/Outdoor/PTZ

Resolution

4 Mega Pixel

Focal Length

2.8 mm–12 mm

Optical zoom

4 x

IR Illumination

Yes

Sensor size

1/2.8" CMOS

Microphone

Built-in

Min. Illumination

0.005 Lux

Electronic Shutter Speed

1/1s–1/30,000s

Power options

PoE

Power supply requirements

12 VDC, 2A ± 10% (optional)

Power consumption

5 Watts

Environment

Outdoor

Operating temperature range

–30 °C to +50 °C

Colour

White

Dimensions

117.4 mm × Φ132.1 mm

Units per Shipping Box

1

Unit Calculated Volume

0.005206 cubm

Product Net Weight

0.713 kg

Unit Calculated Weight

1 kg

Summary

Dahua Technology DH-SD29404DB-GNY. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.0005 lx, Tilt angle range: 0 – 90°, Tilt speed: 60 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 171 m

Certification

CE: EN55032/EN 50130-4/EN 55035/EN61000-3-2/
EN61000-3-3

Connectivity technology

Wired

Day/night mode

Yes

Placement supported

Indoor & outdoor

PTZ control

Yes

PTZ modes

5 Pattern/5 Scan/8 Tour

PTZ protocols

DH-SD

Type

IP security camera

Wide Dynamic Range (WDR)

Yes

Fog proof

Yes

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

Black/White

Camera shutter speed

1/1 – 1/30000 s

Camera shutter type

Electronic

Minimum illumination

0.0005 lx

Pan preset speed

100 °/sec

Pan range

0 – 360 °

Pan speed

100 °/sec

Preset programs quantity

300

Tilt angle range

0 – 90 °

Tilt preset speed

60 °/sec

Tilt speed

60 °/sec

White balance

Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp

Optical sensor size

1/2.8 "

Progressive scan

Yes

Sensor type

CMOS

Closest focusing distance

1.5 m

Detect distance

171 m

Digital zoom

16 x

Focal length range

2.8 – 12 mm

Focus

Motorized/Manual

Identify distance

17 m

Maximum aperture number

1.6

Observe distance

67 m

Recognize distance

34 m

Zoom capability

Yes

Night vision

Yes

Night vision distance

50 m

Automatic gain control

Yes

Back Light Compensation (BLC)

Yes

Bit rate

H264: 24 Kbps-13056 Kbps H265: 9 Kbps-7936 Kbps

Bit rate control

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Frame rate

30 fps

Gain control type

Auto/Manual

Highlight Compensation (HLC)

Yes

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Noise reduction technology

2D noise reduction,3D noise reduction

Region of Interest (ROI) encoding

Yes

Supported graphics resolutions

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576

Supported video modes

1080p/720p

Total megapixels

2 MP

Video compression formats

H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG

Video streaming

Yes

Audio codecs

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Built-in microphone

Yes

Bluetooth

No

Cabling technology

10/100Base-T(X)

Client interoperability

CGI; SDK; ONVIF (Profile S&G&T); P2P

Ethernet interface type

Fast Ethernet

Ethernet LAN

Yes

Networking standards

IEEE 802.3af

Number of users

20 user(s)

Quality of Service (QoS) support

Yes

Streaming method

Multicast/Unicast

Supported network protocols

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Wi-Fi

No

Built-in HDD

No

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

Internal memory

512 MB

ROM capacity

128 MB

Interface

RJ-45

Intelligent Video Surveillance (IVS) system features

Abandoned object/Face detection/Intrusion/Missing object/Tripwire

Motion sensor

Yes

Management software

Smart PSS, DSS

Web browser

Yes

Power consumption (max)

10 W

Power consumption (typical)

5 W

Power over Ethernet (PoE)

Yes

Power source type

PoE

Operating relative humidity (H-H)

0 – 95 %

Operating temperature (T-T)

-30 – 50 °C

Mobile operating systems supported

Android/iOS

Diameter

132.1 mm

Height

117.4 mm

Weight

713 g

Package weight

1000 g

Number of cameras

1

Browser supported

IE, Chrome, Firefox, Safari

Number of video streams

3

Manufacturer Code

SD29404DB-GNY

ELKO Code

1425269

Warranty

36

Brand

DAHUA
