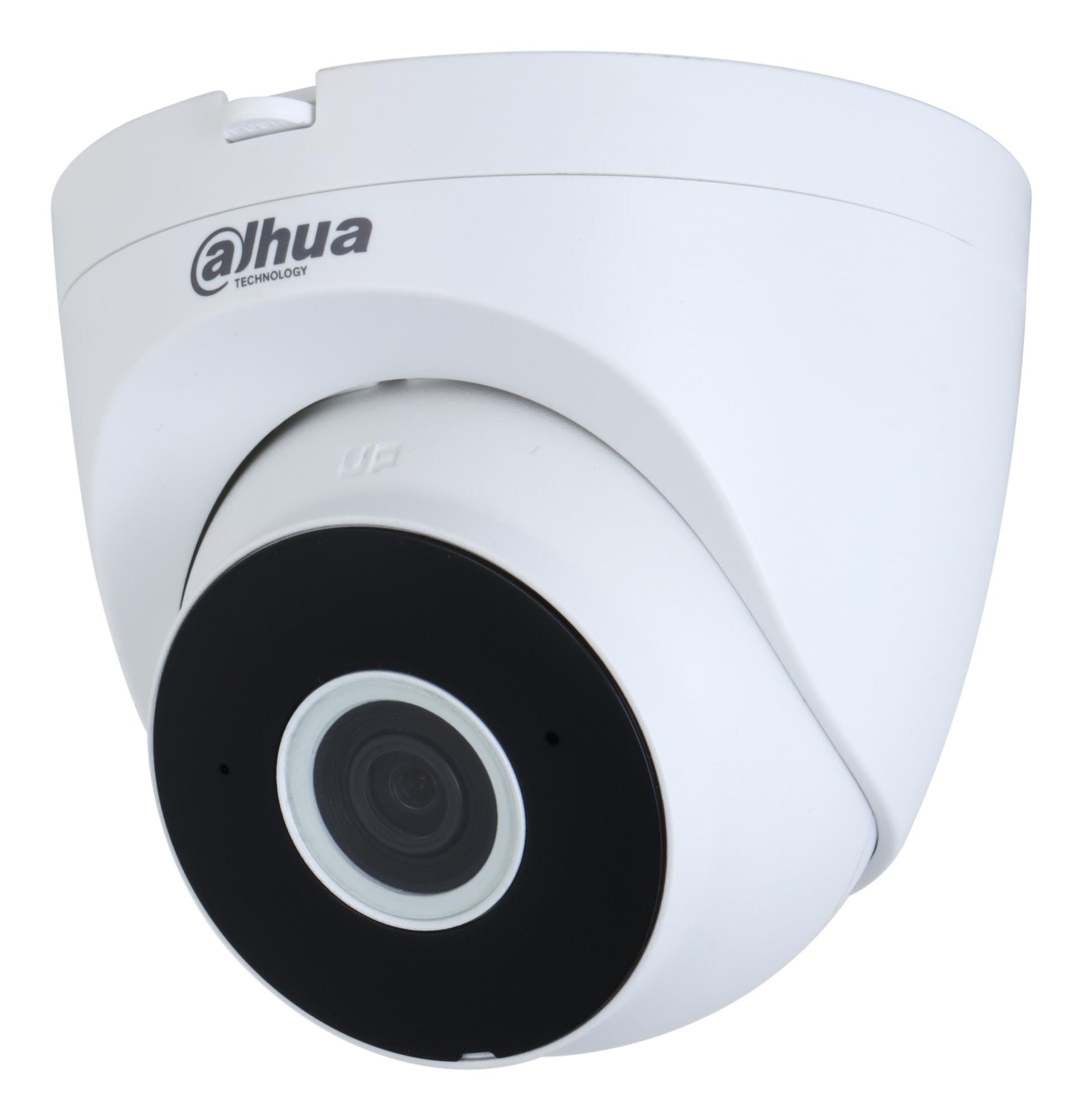

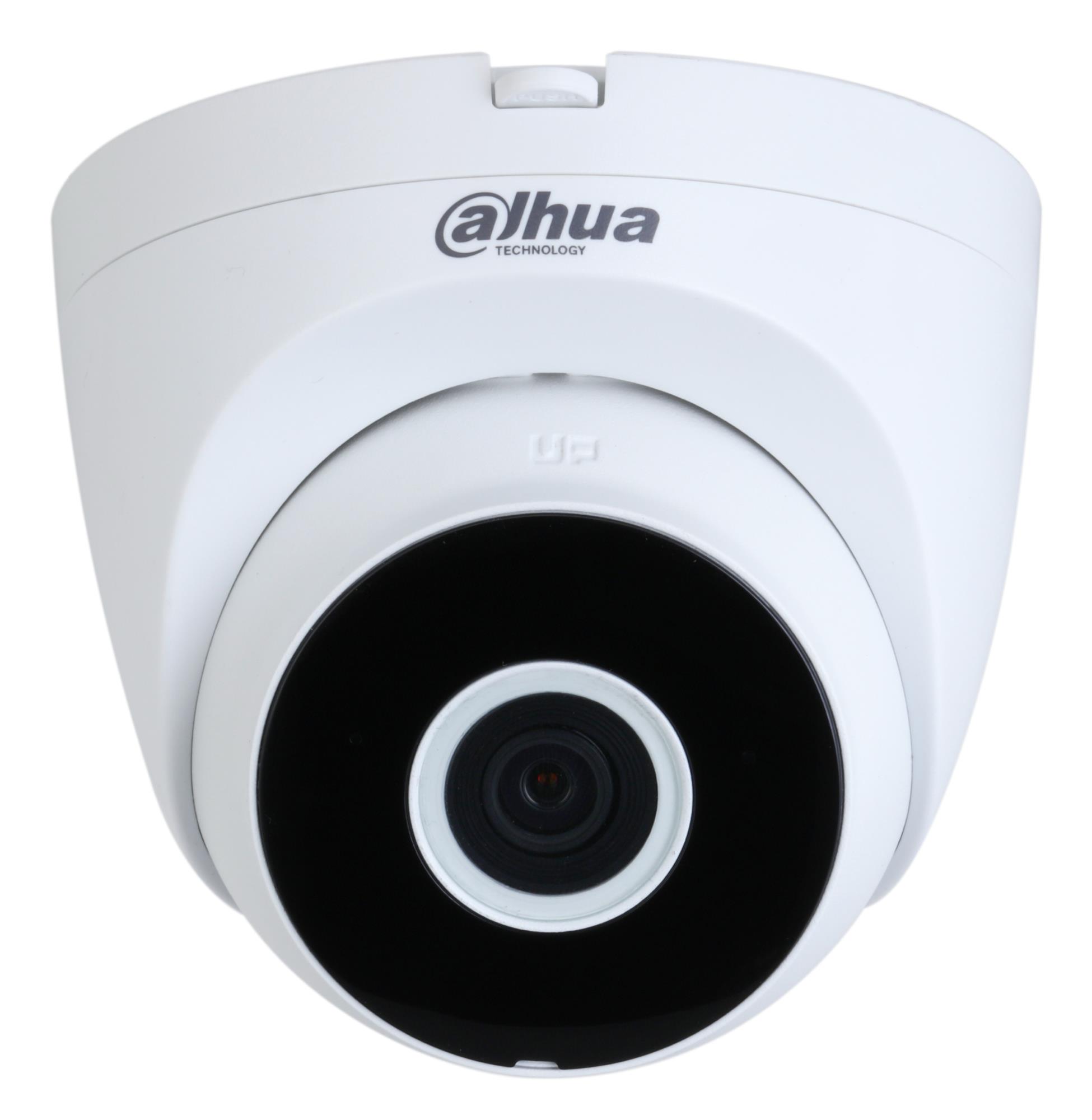

Dahua Technology IPC-HDW1430DT-SAW-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m
2 laos
2 laos
| Vendor | DAHUA |
|---|---|
| RJ45 | 1 |
| Model | IPC-HDW1430DT-SAW-0280B |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 4 Mega Pixel |
| Focal Length | 2.8mm |
| IR Illumination | Yes |
| Sensor size | 1/3" |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.003 Lux |
| Effective pixels | 2560 (H) × 1440 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s –1/100000 s |
| Supports card capacities up to | 256GB |
| Power options | 12V |
| Power supply requirements | 12 V DC /510 mA |
| Power consumption | 6.1 Watts |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | White |
| Dimensions | Ø 109.9 x 102.2 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001925 cubm |
| Product Net Weight | 0.32 kg |
| Unit Calculated Weight | 0.473 kg |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Connectivity technology | Wired & Wireless |
| Type | IP security camera |
| Camera shutter speed | 1/3 – 1/100000 s |
| Field of view (FOV) angle | 90 ° |
| Minimum illumination | 0.003 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/3 " |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC output voltage | 12 |
| Power consumption (typical) | 2 W |
| Power source type | DC |
| Operating temperature (T-T) | -30 – 60 °C |
| Diameter | 109.9 mm |
| Height | 102.2 mm |
| Weight | 316.9 g |
| Summary | Dahua Technology IPC-HDW1430DT-SAW-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 68 m, Observe distance: 27.2 m, Recognize distance: 13.6 m |
| Housing material | Metal/Plastic |
| Mounting type | Ceiling/Wall/Pole |
| Day/night mode | Yes |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 107 ° |
| Lens viewing angle, horizontal | 90 ° |
| Lens viewing angle, vertical | 50 ° |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 78 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Progressive scan | Yes |
| Closest focusing distance | 1 m |
| Detect distance | 68 m |
| Fixed focus | Yes |
| Identify distance | 6.8 m |
| Maximum aperture number | 2 |
| Observe distance | 27.2 m |
| Recognize distance | 13.6 m |
| Night vision distance | 30 m |
| Number of illumination LEDs | 1 |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Video compression formats | H.264/H.264B/H.264H/H.265 |
| Video recording | Yes |
| Video streaming | Yes |
| Built-in microphone | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Streaming method | Multicast |
| Supported network protocols | IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, RTMP |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| RAM capacity | 64 MB |
| ROM capacity | 16 MB |
| DC-in jack | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Video motion detection | Yes |
| Power consumption (max) | 4.2 W |
| Storage temperature (T-T) | -30 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| Package weight | 463 g |
| Manual | Yes |
| Number of cameras | 1 |
| Manufacturer Code | IPC-HDW1430DT-SAW-0280B |
| ELKO Code | 1437703 |
| Warranty | 36 |
