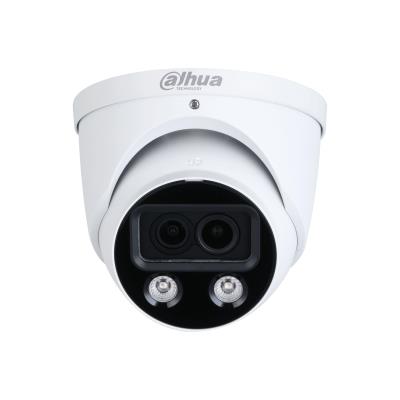

IPC-HDW5449H-ASE-D2
4 MP Dual Lens Fixed-focal Eyeball WizMind Full-color Network Camera
> Dual AI sensors with multi-spectral imaging technology that produces colorful images in low illumination conditions.
> Outputs max. 4 MP (2688 × 1520)@25/30 fps.
> Built-in warm light/IR LED, with a maximum illumination distance of 50 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and parking detection.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, and face exposure.
> People counting: Queue management, people counting in area, entered/exited people counting, and generating and exporting report (day/month/year).
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in Mic and speaker, support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
| Kaal | 0,75 kg |
|---|---|
| Vendor | DAHUA |
| RJ45 | 1 |
| Model | IPC-HDW5449H-ASE-D2 |
| Camera design | Eyeball |
| Network Camera Type | Fixed |
| Resolution | 4 Mega Pixel |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| IR Illumination | Yes |
| Sensor size | 1/1.8" + 1/1.8" CMOS |
| Microphone | Built-in |
| Lens Mount | M16 |
| Min. Illumination | 0.0002 Lux |
| Power options | PoE |
| Power consumption | 3.9 Watts |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Colour | White |
| Dimensions | 122 mm × 110.9 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003472 cubm |
| Product Net Weight | 0.75 kg |
| Unit Calculated Weight | 0.925 kg |
| Form factor | Eyeball |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Connectivity technology | Wired |
| Number of effective pixels (H x V) | 2688 (H) × 1520 (V) pixels |
| Number of sensors | 2 |
| Optical sensor size | 1/1.8" + 1/1.8" " |
| Sensor type | CMOS |
| Fixed focus | Yes |
| Focal length range | 2.8 mm; 3.6 mm; 6 mm mm |
| Maximum aperture number | 1 |
| 3D NR (Noise Reduction) | Yes |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Total megapixels | 4 MP |
| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Diameter | 122 mm |
| Weight | 750 g |
| Width | 110.9 mm |
| Audio input | 1 channel (RCA port) |
| Audio output | 1 channel (RCA port) |
| Power requirements | 12 VDC (±30%); PoE (802.3af); ePoE |
| Manufacturer Code | IPC-HDW5449H-ASE-D2-0280B |
| ELKO Code | 1389494 |
| Warranty | 36 |
