Dahua Technology WizSense IPC-HDBW3441E-AS-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Black, Form factor: Spherical. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Tilt angle range: 0 – 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Night vision distance: 50 m, LED type: IR
30 laos
30 laos

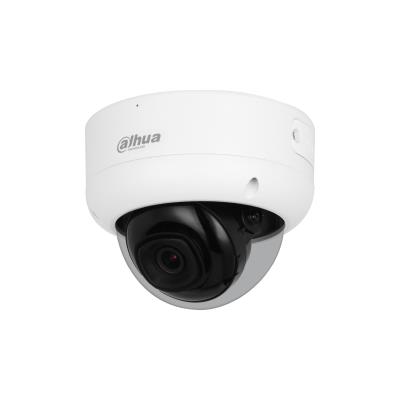

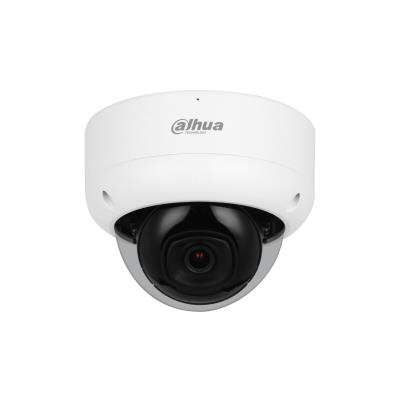

4MP IR Fixed-focal Dome WizSense Network Camera
| Kaal | 0,516 kg |
|---|---|
| Warranty | 36 |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | IPC-HDBW3441E-AS-S2 |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/Outdoor |
| Resolution | 4 Mega Pixel |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.9" CMOS |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0005 Lux |
| Effective pixels | 2688 (H) × 1520 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 512GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Dimensions | 89.1 mm × Φ111.7 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003243 cubm |
| Product Net Weight | 0.516 kg |
| Unit Calculated Weight | 0.694 kg |
| Form factor | Spherical |
| Product colour | Black/White |
| Connectivity technology | Wired |
| Field of view (FOV) angle | 107 ° |
| Effective sensor resolution | 4 pixels |
| Optical sensor size | 1/3 " |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| B/W night vision distance | 50 m |
| Night vision | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power consumption (max) | 8.3 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 – 60 °C |
| Diameter | 111.7 mm |
| Height | 89.1 mm |
| Lens mount interface | M12 |
| Suitable for outdoor use | Yes |
| Summary | Dahua Technology WizSense IPC-HDBW3441E-AS-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Black, Form factor: Spherical. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Tilt angle range: 0 – 75°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Night vision distance: 50 m, LED type: IR |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Desk |
| Alarm input/output | Yes |
| Certification | CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 355 ° |
| Camera shutter speed | 1/3 – 1/100000 s |
| Camera shutter type | Electronic |
| Minimum illumination | 0.0005 lx |
| Number of Privacy masking areas | 4 |
| Pan range | 0 – 355 ° |
| Tilt angle range | 0 – 75 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Progressive scan | Yes |
| Fixed focus | Yes |
| LED type | IR |
| Night vision distance | 50 m |
| Number of illumination LEDs | 3 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video streaming | Yes |
| Audio formats supported | G.711/G.723/G.726/PCM |
| Bit rate range | 3 – 8192 Kbit/s |
| Built-in microphone | Yes |
| Bluetooth | No |
| Ethernet interface type | 100 Gigabit Ethernet/Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Video motion detection | Yes |
| Power source type | PoE |
| Storage temperature (T-T) | -40 – 60 °C |
| Depth | 111.7 mm |
| Weight | 516 g |
| Width | 89.1 mm |
| Package weight | 670 g |
| Number of cameras | 1 |
| CnCode | 85258900 |
