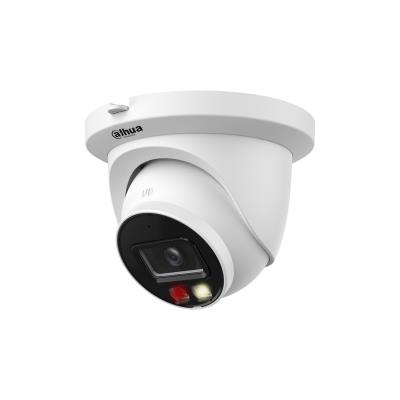

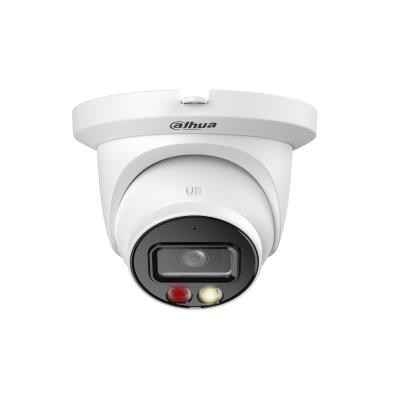

Dahua Technology WizSense IPC-HDW2449TM-S-IL-0360B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Detect distance: 85.4 m, Observe distance: 34.2 m, Recognize distance: 17.1 m
30 laos
30 laos
| Kaal | 0,46 kg |
|---|---|
| Warranty | 36 |
| RJ45 | 1 |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 4 Mega Pixel |
| Focal Length | 2.8mm |
| IR Illumination | Yes |
| Sensor size | 1/2.9" |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0006 Lux |
| Effective pixels | 2688 (H) × 1520 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Colour | White |
| Dimensions | 99.1 mm × Φ121.9 mm |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.00273 cubm |
| Product Net Weight | 0.46 kg |
| Unit Calculated Weight | 0.71 kg |
| Form factor | Dome |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/3 – 1/100000 s |
| Minimum illumination | 0.0006 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
| Fixed focal length | 3.6 mm |
| B/W night vision distance | 30 m |
| LED type | IR |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| DC output voltage | 12 |
| Power consumption (typical) | 2.1 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -40 – 60 °C |
| Diameter | 121.9 mm |
| Height | 99.1 mm |
| Weight | 460 g |
| Lens mount interface | M12 |
| Model | DHI-IPC-HDW2449TM-S-IL-0360B |
| Summary | Dahua Technology WizSense IPC-HDW2449TM-S-IL-0360B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 85.4 m, Observe distance: 34.2 m, Recognize distance: 17.1 m |
| Housing material | Metal/Plastic |
| Mounting type | Ceiling |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Outdoor |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 94 ° |
| Lens viewing angle, horizontal | 78 ° |
| Lens viewing angle, vertical | 41 ° |
| Number of Privacy masking areas | 4 |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 78 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Progressive scan | Yes |
| Closest focusing distance | 1.6 m |
| Detect distance | 85.4 m |
| Fixed focus | Yes |
| Identify distance | 8.5 m |
| Maximum aperture number | 1.6 |
| Observe distance | 34.2 m |
| Recognize distance | 17.1 m |
| Colour night vision distance | 30 m |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 2 |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio formats supported | G.711/G.711 µ-law/G.726/PCM |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, ICMP, IGMP, P2P |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| RAM capacity | 128 MB |
| ROM capacity | 128 MB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Video motion detection | Yes |
| Power consumption (max) | 4.4 W |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Compliance certificates | CE/Federal Communications Commission (FCC)/UL |
| Package weight | 650 g |
| Manual | Yes |
| Number of cameras | 1 |
| CnCode | 85258900 |
