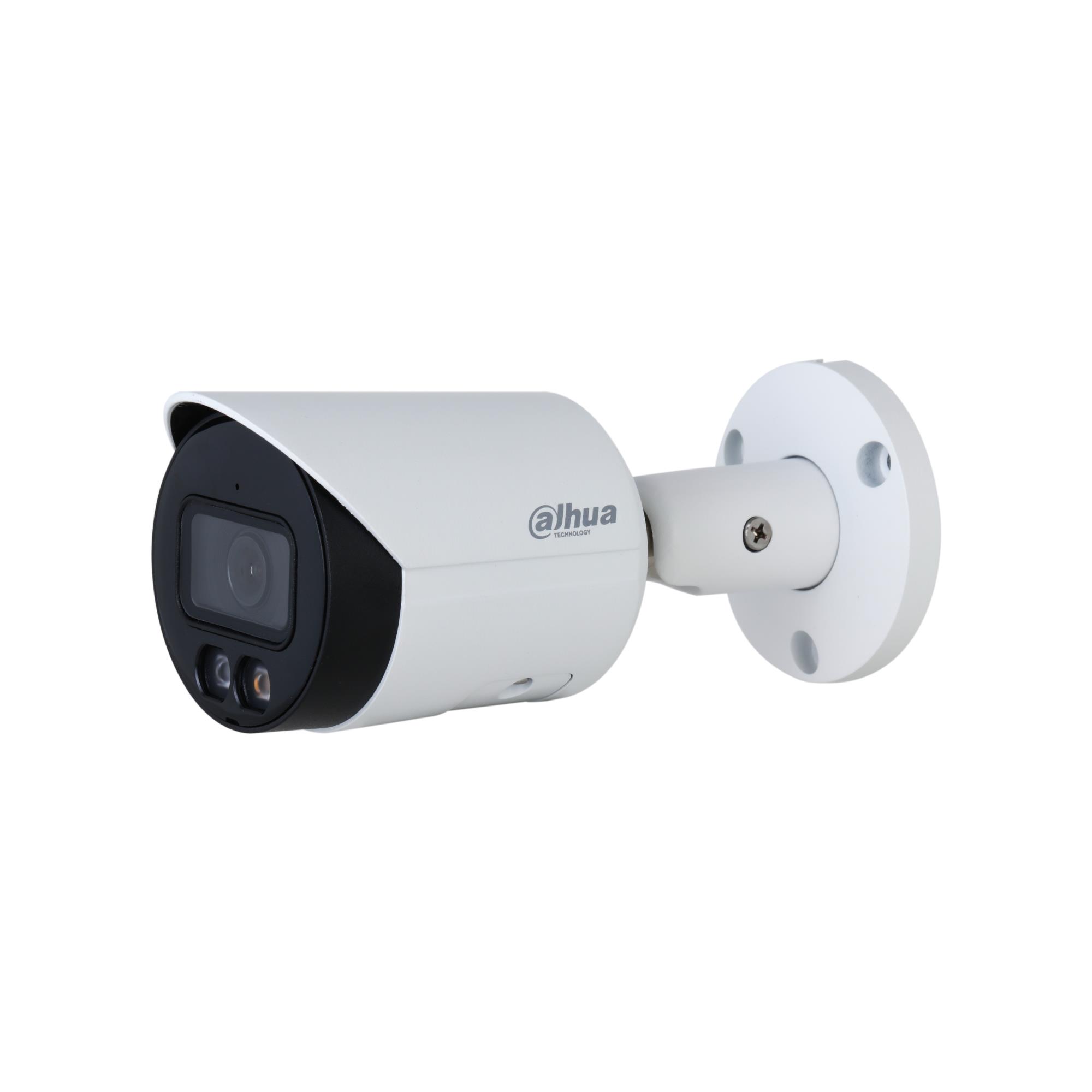

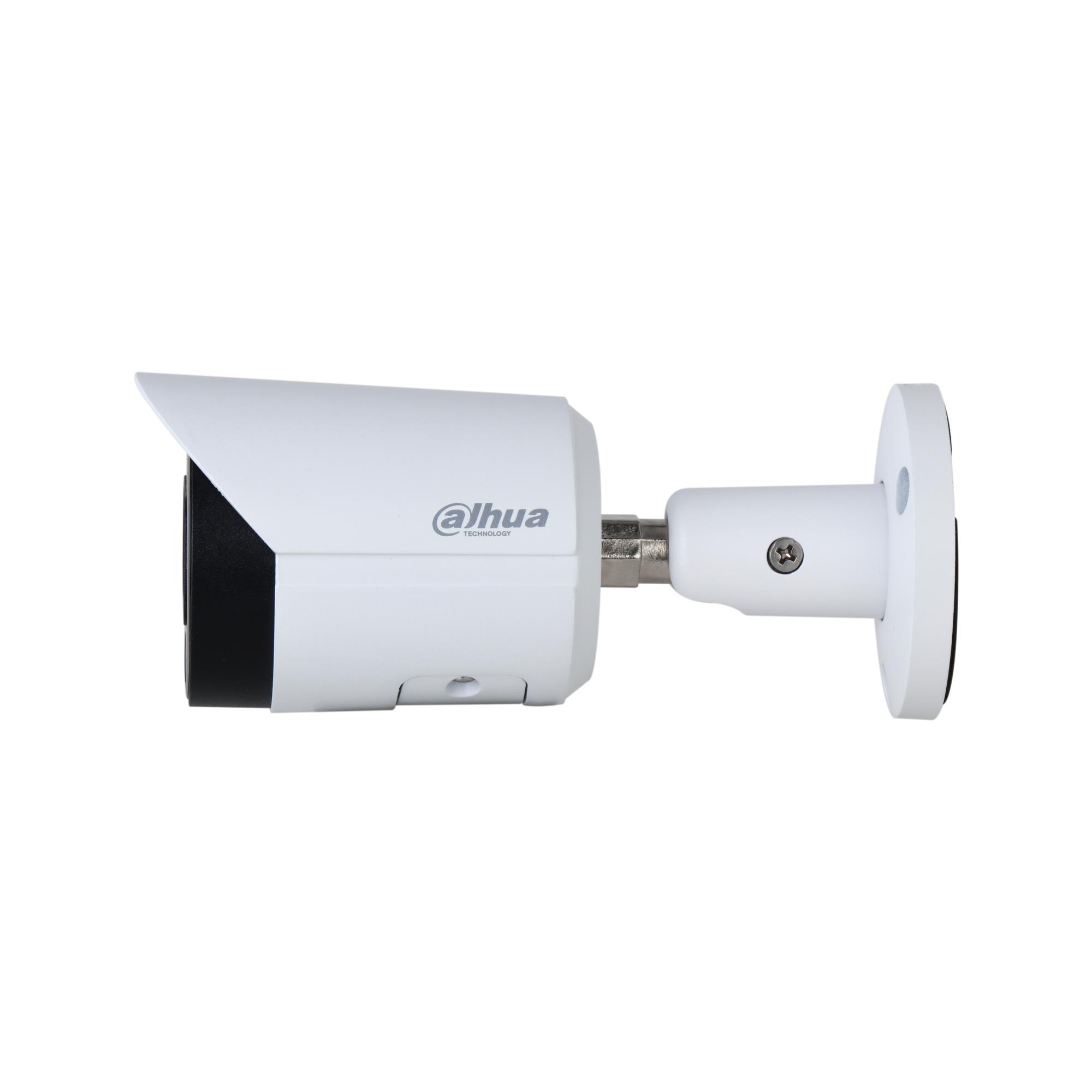

Dahua Technology WizSense IPC-HFW2449S-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0008 lx, Angle of rotation: 360°, Tilt angle range: 0 – 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Closest focusing distance: 0.9 m
30 laos
30 laos
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
| Vendor | DAHUA |
|---|---|
| RJ45 | 1 |
| Model | HFW2449S-S-IL-0280B-B |
| Camera design | Bullet |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 4 Mega Pixel |
| IR Illumination | Yes |
| Sensor size | 1/2.9" |
| Lens Mount | M12 |
| Min. Illumination | 0.0006 Lux |
| Effective pixels | 2688 (H) × 1520 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 2.5 Watts |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Colour | Black |
| Dimensions | 166.2 × 70 × 70 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002205 cubm |
| Product Net Weight | 0.48 kg |
| Unit Calculated Weight | 0.58 kg |
| Summary | Dahua Technology WizSense IPC-HFW2449S-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0008 lx, Angle of rotation: 360°, Tilt angle range: 0 – 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Closest focusing distance: 0.9 m |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Certification | CE-LVD: EN 62368-1 |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 – 1/100000 s |
| Minimum illumination | 0.0008 lx |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
| Optical sensor size | 1/2.9 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.9 m |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Number of lenses | 2 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 1 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/342 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 6 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 128 MB |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Management software | DSS; DMSS |
| Web browser | Yes |
| Web-based management | Yes |
| Power consumption (max) | 4.4 W |
| Power consumption (Power over Ethernet (PoE)) | 2.5 W |
| Power consumption (typical) | 2.1 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Depth | 166.2 mm |
| Height | 70 mm |
| Weight | 480 g |
| Width | 70 mm |
| Package weight | 590 g |
| Number of cameras | 1 |
| Long Description | Dahua Technology WizSense IPC-HFW2449S-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0008 lx, Angle of rotation: 360°, Tilt angle range: 0 – 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Closest focusing distance: 0.9 m |
| Bullet Points | 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition imageOutputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 mROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environmentsRotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesIntelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)Supports max. 256 G Micro SD card; built in MIC12 VDC/PoE power supply, easy for installationIP67 protectionSMD Plus |
| Manufacturer Code | IPC-HFW2449S-S-IL-0280B-B |
| ELKO Code | 1405046 |
| Warranty | 36 |
