Security Solutions / Video Surveillance / IP Cameras / NET CAMERA 3MP IR DOME/VIGI C230(4MM) TP-LINK

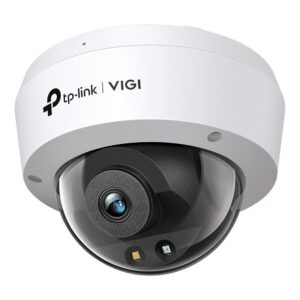

NET CAMERA 3MP IR DOME/VIGI C230(4MM) TP-LINK

57,82

TP-Link VIGI C230. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 89.1°, Lens viewing angle, vertical: 45.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Lens diameter: 4 mm

2 laos

2 laos

Tootekood: VIGIC230(4MM) Kategooriad: , , ,

Kirjeldus

All The Colors, All The Time

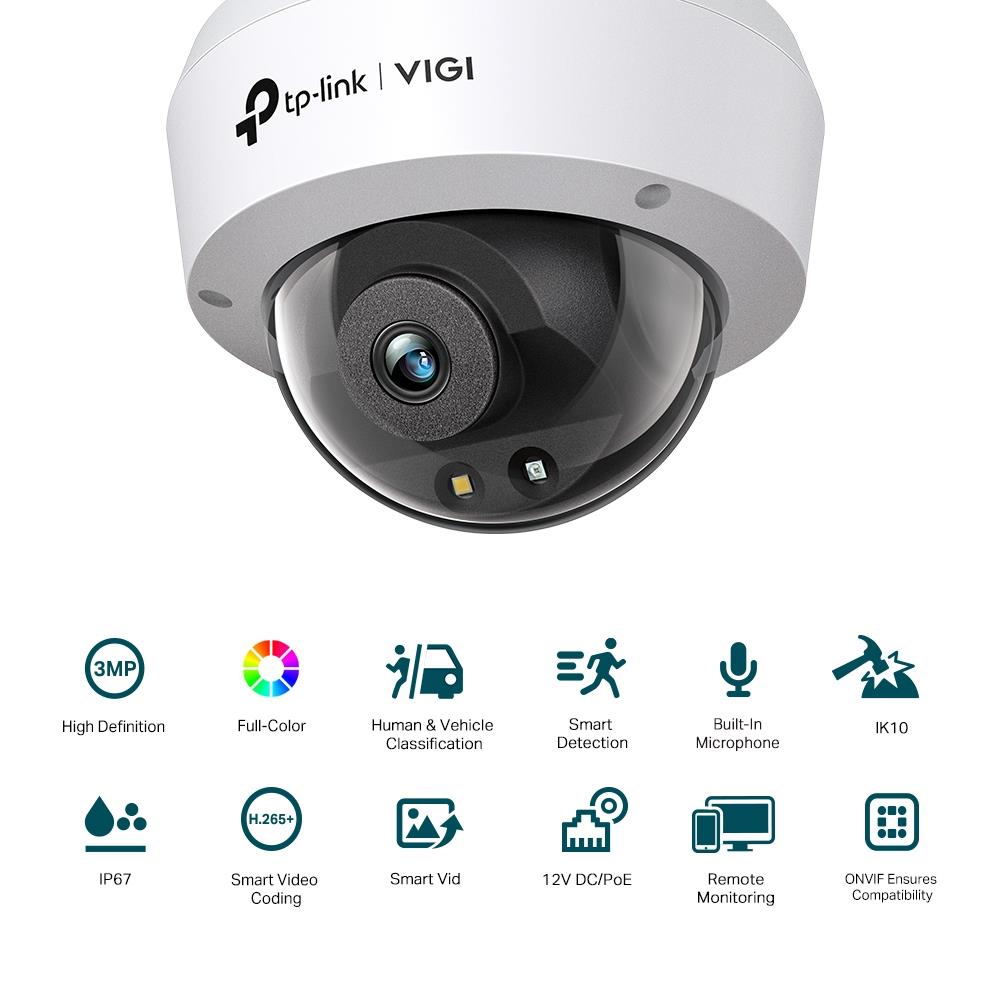

3MP Full-Color Dome Network Camera

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.

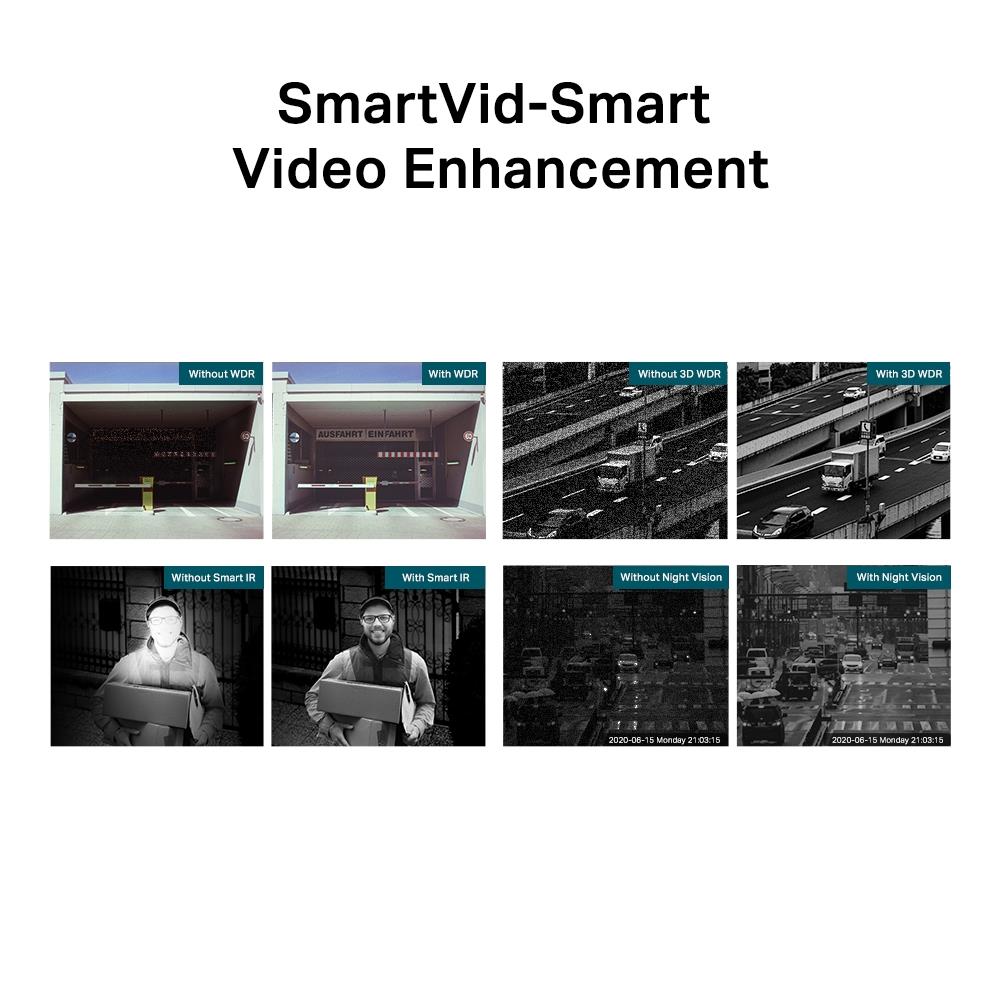

SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera
  • IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime

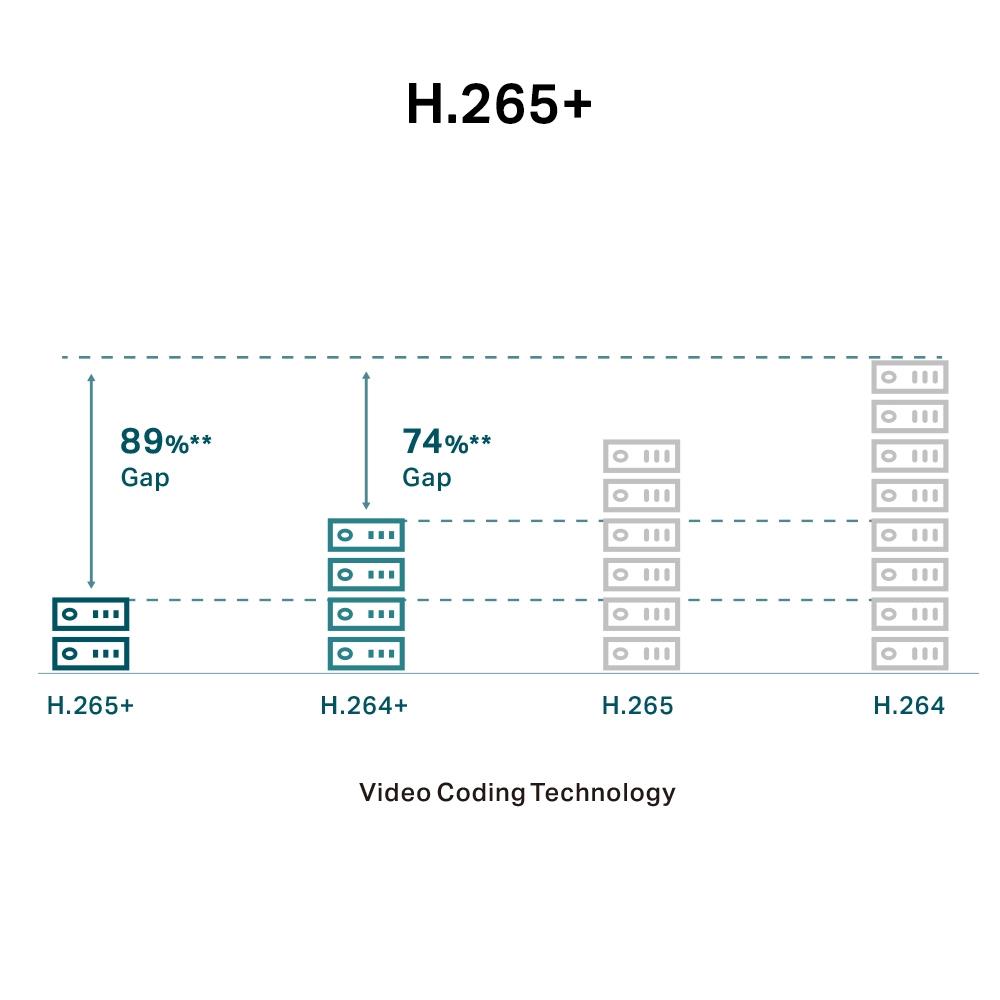

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger

Lisainfo

Kaal 0,4 kg
Vendor

TP-LINK

RJ45

1

Model

VIGI C230(4MM)

Camera design

Dome

Network Camera Type

Fixed Dome/HDTV/Megapixel

Resolution

3 Mega Pixel

Focal Length

4mm

IR Illumination

Yes

Sensor size

1/2.8”

Lens Mount

M12

Min. Illumination

0.005 Lux

Power options

12V/PoE

Power supply requirements

12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)

Power consumption

4.7 Watts

Operating temperature range

-30–60 °C

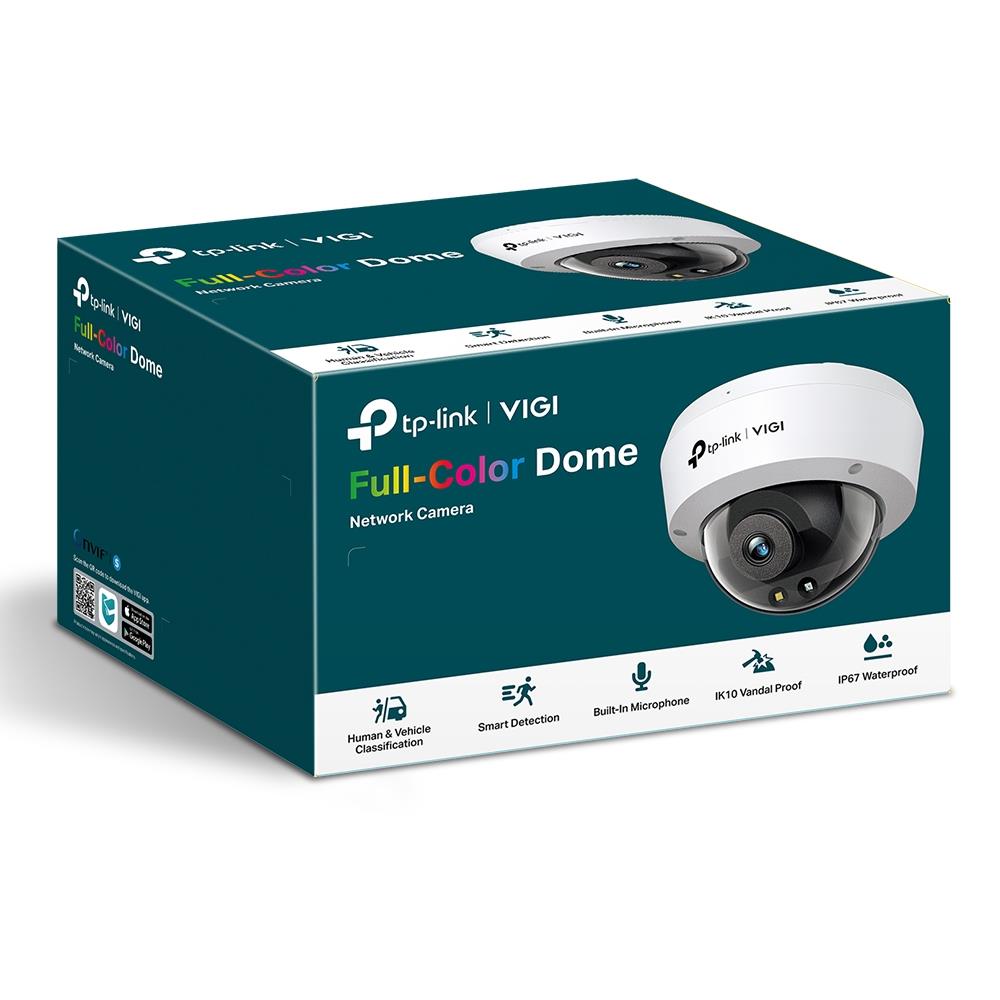

Included Accessories

Quick Start Guide,
Waterproof Cable Attachments,
Mounting Accessories

Colour

White

Dimensions

115 × 115 × 86 mm

Units per Shipping Box

1

Unit Calculated Volume

0.003627 cubm

Product Net Weight

0.4 kg

Unit Calculated Weight

0.51 kg

Summary

TP-Link VIGI C230. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 89.1°, Lens viewing angle, vertical: 45.1°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Lens diameter: 4 mm

Certification

CE/BSMI/VCCI/ONVIF

Connectivity technology

Wired

Day/night mode

Yes

Placement supported

Indoor & outdoor

Type

IP security camera

Wide Dynamic Range (WDR)

Yes

Form factor

Dome

Housing material

Plastic

IK code

IK10

International Protection (IP) code

IP67

Mounting type

Ceiling

Product colour

White

Protection features

Waterproof

Camera pan control

Yes

Lens viewing angle, diagonal

106.9 °

Lens viewing angle, horizontal

89.1 °

Lens viewing angle, vertical

45.1 °

Minimum illumination

0.005 lx

Pan range

0 – 360 °

Digital Wide Dynamic Range (DWDR) (panoramic camera)

Yes

Number of sensors

1

Optical sensor size

1/2.8 "

Progressive scan

Yes

Sensor type

CMOS

Lens diameter

4 mm

Maximum aperture number

1.6

Number of lenses

1

B/W night vision distance

30 m

Infra-red wavelength

850 nm

LED type

IR

Night vision

Yes

Night vision distance

30 m

Back Light Compensation (BLC)

Yes

Bit rate

64 Kbps to 4 Mbps

Highlight Compensation (HLC)

Yes

Image quality adjustment

Brightness/Contrast/Mirror/Saturation

Maximum resolution

2304 x 1296 pixels

Noise reduction

Yes

Noise reduction technology

3D noise reduction

Privacy masking

Yes

Smart IR

Yes

Total megapixels

3 MP

Video compression formats

H.264/H.264+/H.265/H.265+

Video streaming

Yes

Ethernet interface type

Fast Ethernet

Ethernet LAN

Yes

Networking standards

IEEE 802.3af/IEEE 802.3at

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Built-in HDD

No

Digest authentication

Yes

Mirror

Yes

Password protection

Yes

Password reset via email

Yes

DC output voltage

12

Power source type

DC,PoE

Operating temperature (T-T)

-30 – 60 °C

Depth

86 mm

Height

115 mm

Width

115 mm

Basic event

Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Number of cameras

1

Manufacturer Code

VIGIC230(4MM)

ELKO Code

1405698

Warranty

24

Brand

TP-LINK
