IPC-HFW5241E-ZE

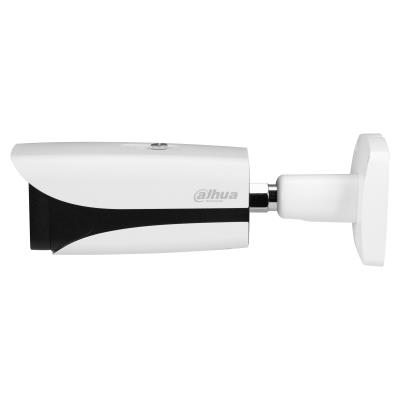

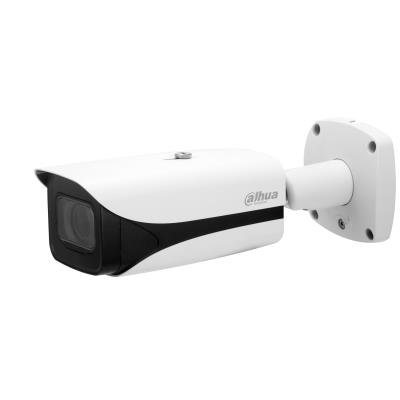

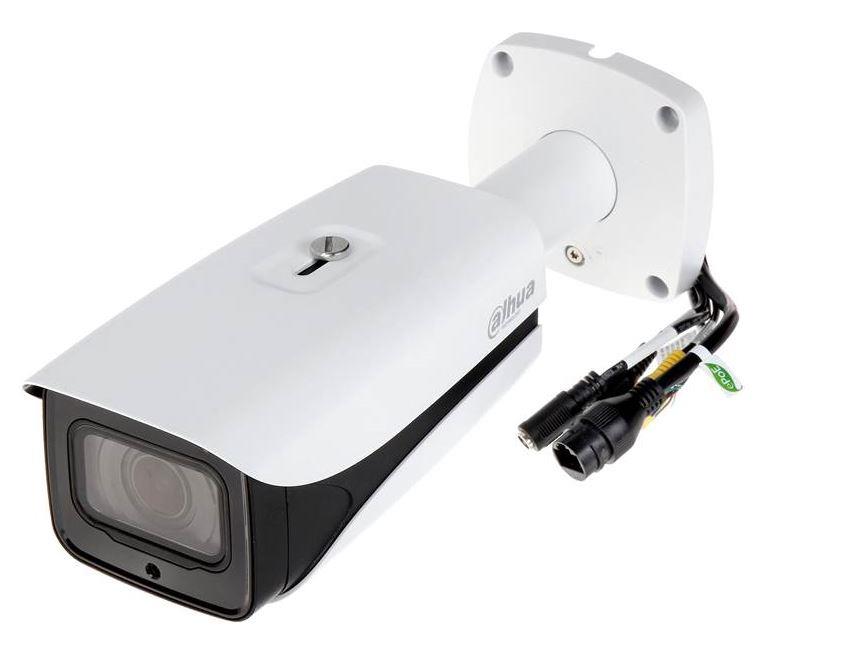

2MP IR Vari-focal Bullet WizMind Network Camera
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920×1080) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
> Focal Length: 2.7 mm–13.5 mm
> Field of View: 109°–30°
| Vendor | DAHUA |
|---|---|
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | IPC-HFW5241E-ZE-27135 |
| Camera design | Bullet |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 2 Mega Pixel |
| Focal Length | 2.7 mm–13.5 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.8" CMOS |
| Microphone | Built-in |
| Min. Illumination | 0.0004 Lux |
| Effective pixels | 1920 (H) × 1080 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 1TB |
| Power options | PoE |
| Power supply requirements | 12 VDC/PoE (802.3af)/ePoE |
| Power consumption | 11.6 Watts |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | White |
| Dimensions | 273.2 mm × 95.0 mm × 95.0 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.007516 cubm |
| Product Net Weight | 1.12 kg |
| Unit Calculated Weight | 1.54 kg |
| Form factor | Bullet |
| Product colour | White |
| Connectivity technology | Wired |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Camera shutter type | Electronic/Mechanical |
| Effective sensor resolution | 2 pixels |
| Optical sensor size | 1/2.8" " |
| Sensor type | CMOS |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1024 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power consumption (max) | 11.6 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | –30 °C to +60 °C °C |
| Adjustment shutter speed | Auto/Manual |
| Manufacturer Code | IPC-HFW5241E-ZE-27135S3 |
| ELKO Code | 1443466 |
| Warranty | 36 |
