MSI MAG PANO M100R PZ. Form factor: Micro Tower, Type: PC, Product colour: White. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5″. Width: 235 mm, Depth: 440 mm, Height: 405 mm
50 laos
50 laos
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

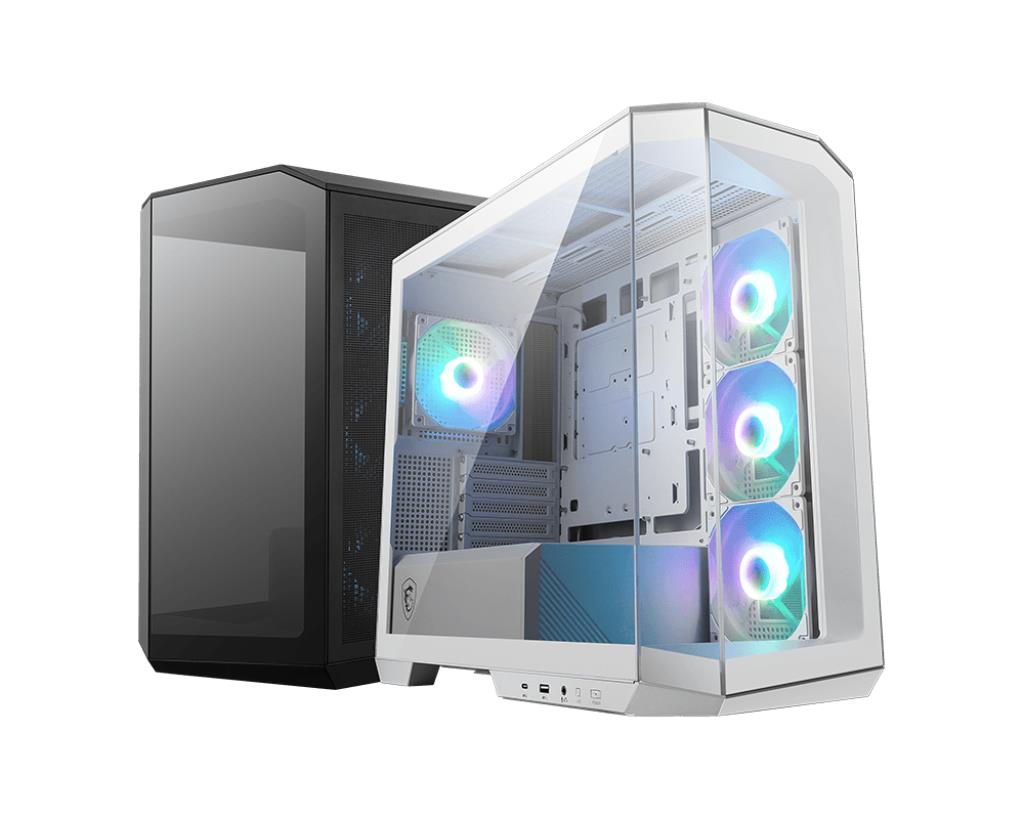

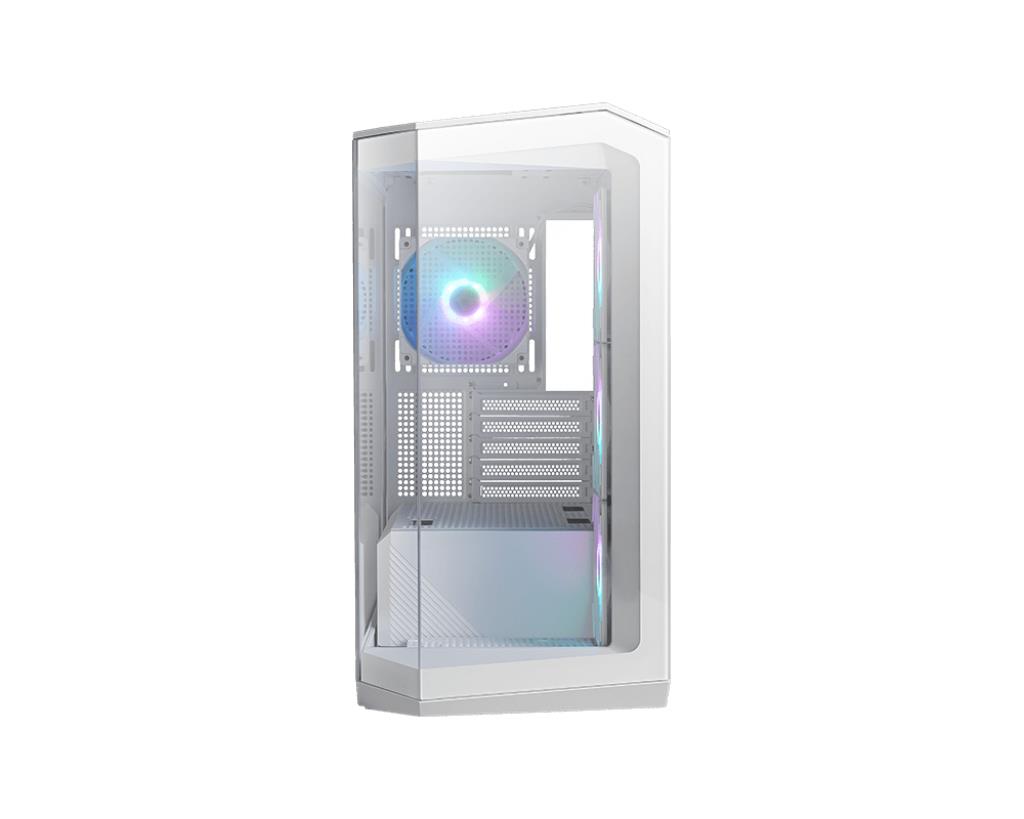

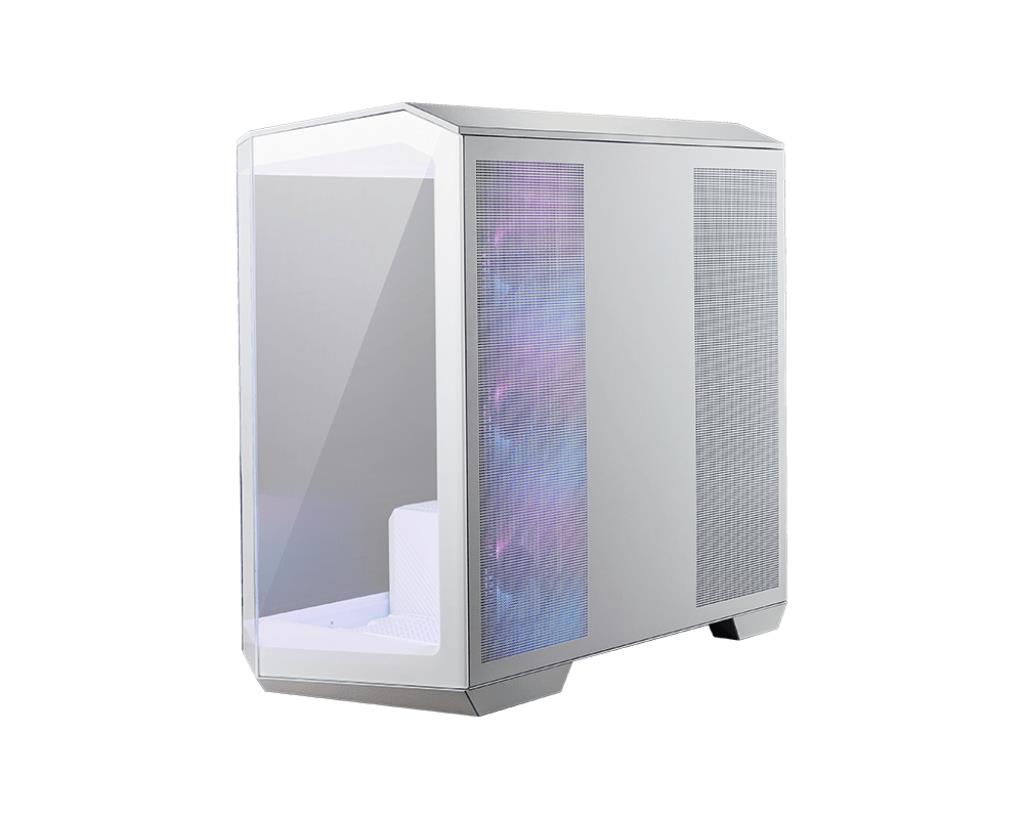

To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.
FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
BETTER TOGETHER
Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2×2 Type-C port for high speed data transmission.
CONNECTABLE FRONT I/O
– USB 3.2 Gen 2×2 Type-C
– USB 3.2 Gen 1 Type-A
– Mic-in / Audio-out
– LED Switch
– Power
| Mõõtmed | 44 × 23,5 × 40,5 cm |
|---|---|
| Vendor | MSI |
| Summary | MSI MAG PANO M100R PZ. Form factor: Micro Tower, Type: PC, Product colour: White. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 235 mm, Depth: 440 mm, Height: 405 mm |
| Form factor | Micro Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| LED indicators | Yes |
| Maximum CPU cooler height | 175 mm |
| Maximum graphics card length | 390 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 1 |
| Number of 3.5" bays | 1 |
| Number of expansion slots | 5 |
| On/off button | Yes |
| Product colour | White |
| Side window | Yes |
| Suitable for | Gaming |
| Supported motherboard form factors | ITX/micro ATX |
| Type | PC |
| Power supply location | Bottom |
| Power supply shroud | Yes |
| Supported power supply form factors | ATX |
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 1 |
| Number of rear fans supported (max) | 1 |
| Number of side fans supported (max) | 3 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120/140 mm |
| Rear fans installed | 1x 120 mm |
| Rear radiator sizes supported | 120/140 mm |
| Side fans diameters supported | 120 mm |
| Side fans installed | 3x 120 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 120/240/360 mm |
| Supported HDD sizes | 2.5/3.5 " |
| Depth | 440 mm |
| Height | 405 mm |
| Weight | 8660 g |
| Width | 235 mm |
| Package weight | 11290 g |
| Model | MAG PANO M100R PZ / WHITE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1174 cubm |
| Unit Calculated Weight | 11.3 kg |
| CnCode | 84733080 |
| Case product features | Transparent panel |
| Manufacturer Code | MAGPANOM100RPZWHITE |
| ELKO Code | 1413018 |
| Warranty | 24 |
