MSI MEG Z890 ACE. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
4 laos
4 laos

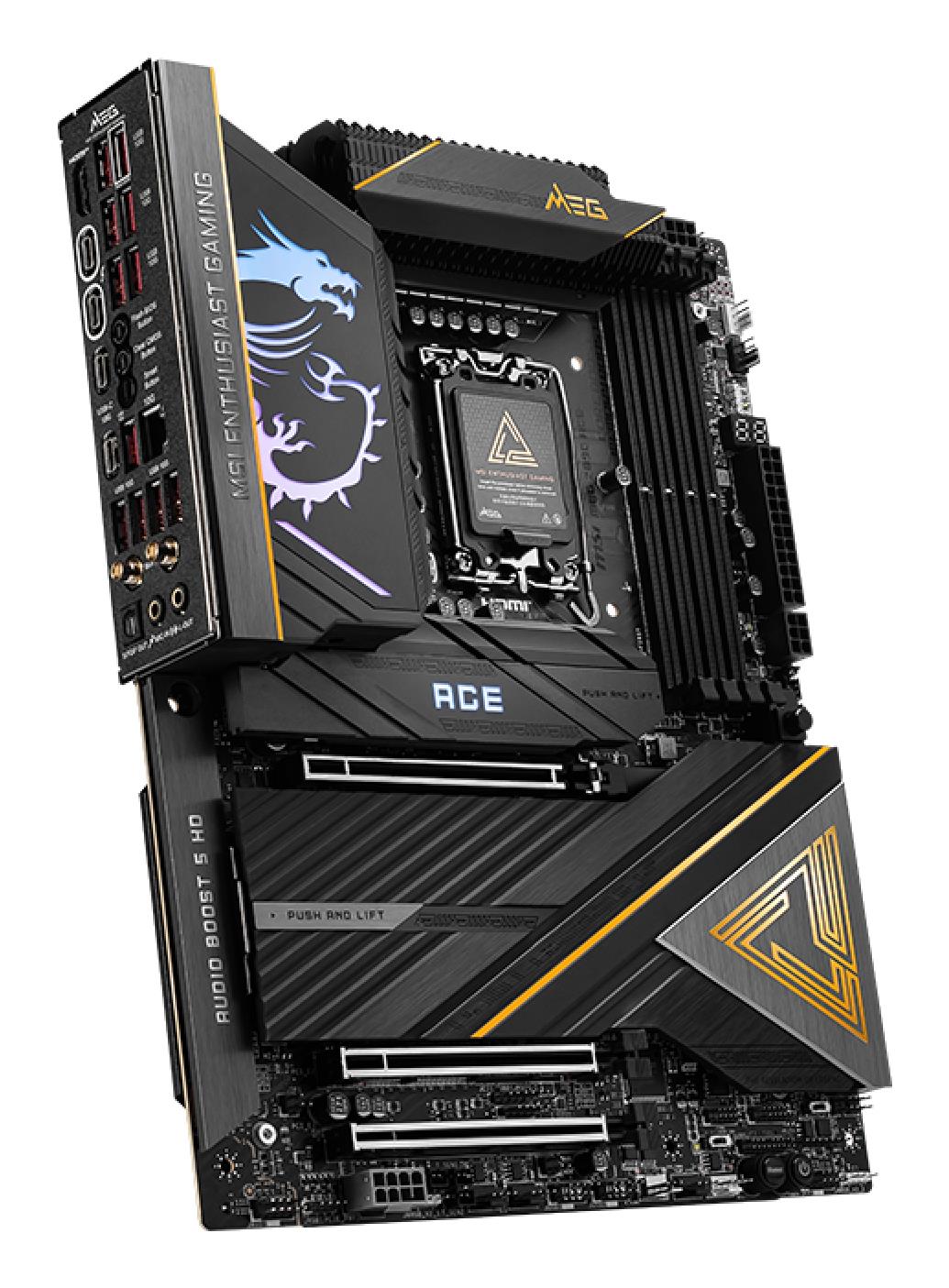

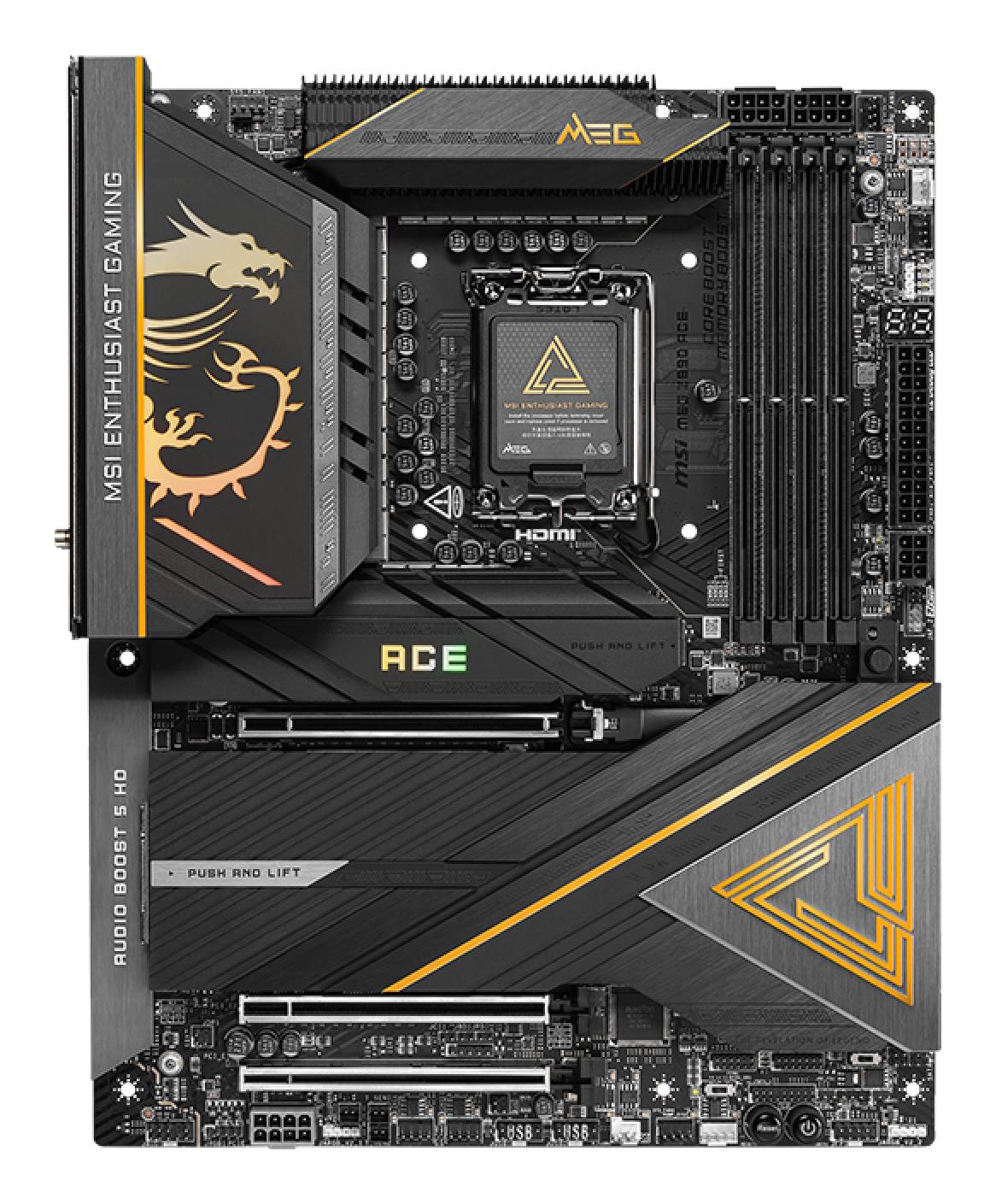

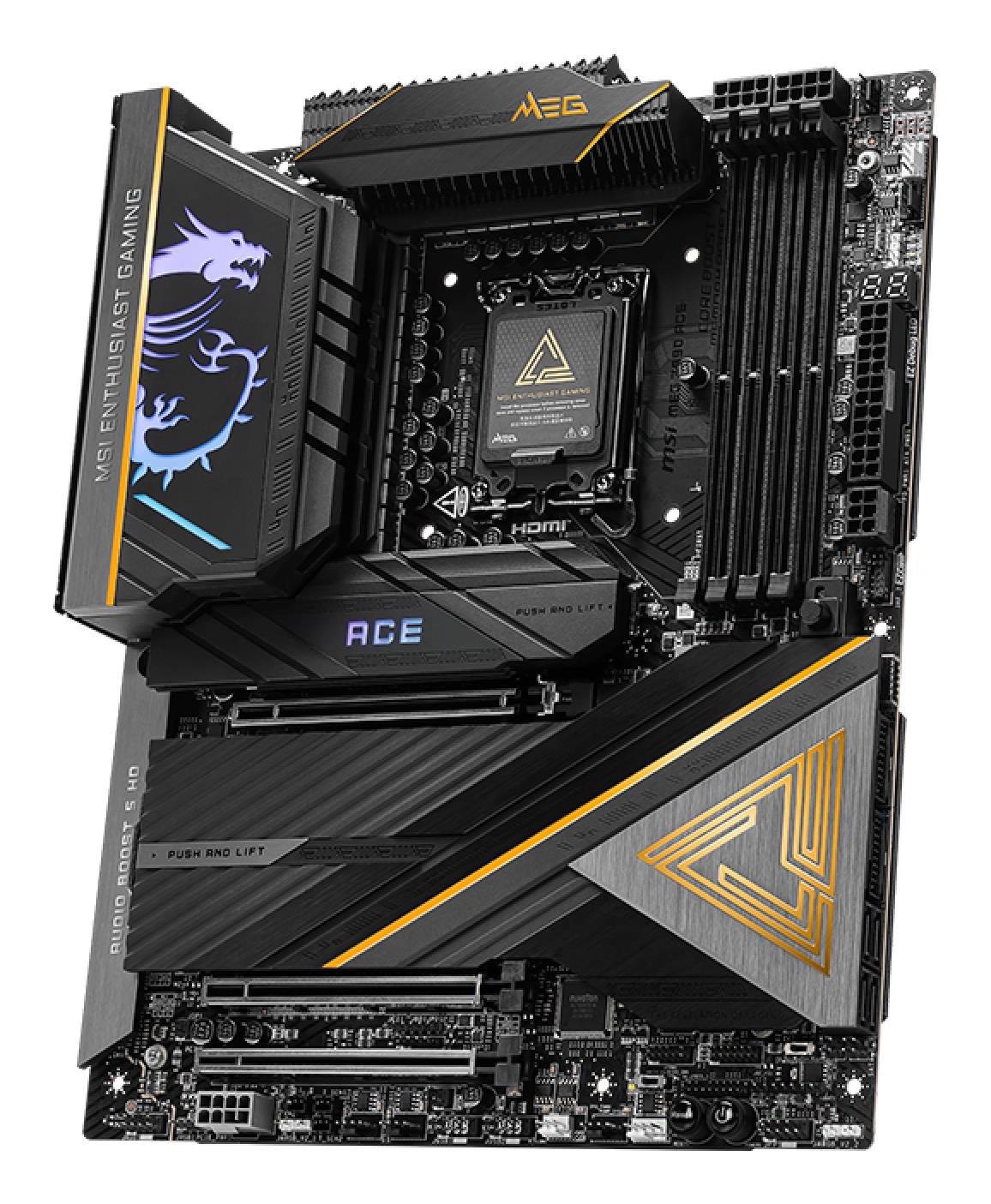

MEG Z890 ACE
Furnished premium aesthetics with its dark black finish and pale gold embellishes. Developed to unlock the full gaming potential of the Intel Core Ultra processor by combining elite hardware system support and premium durability, the MEG Z890 ACE is an outstanding ATX of Z890 platform for extreme settings in terms of overclocking the processor, DDR5 memory, and graphics card at the highest level.
The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of.
With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
24+2+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 24+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 ACE is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
| Kaal | 2 kg |
|---|---|
| Vendor | MSI |
| M.2 | 5 |
| PCI-Express 16x | 3 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 3.1 | 11 |
| USB-C | 2 |
| USB-C w/Thunderbolt | 2 |
| Bluetooth | Yes |
| SATA | Yes |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.0 | Yes |
| WiFi | Yes |
| Model | MEG Z890 ACE |
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/6400/9200 MHz |
| Memory slots | 4 |
| Integrated video | Yes |
| Integrated LAN | 10 Gigabit |
| Integrated audio | Realtek ALC4082 |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.009135 cubm |
| Product Net Weight | 2 kg |
| Unit Calculated Weight | 3.6 kg |
| Summary | MSI MEG Z890 ACE. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor | 256 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | Intel LGA1851 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9200 MHz |
| Supported memory clock speeds | 4800/6400/9200 MHz |
| Supported memory types | DDR5-SDRAM |
| Number of HDDs supported | 9 |
| Number of storage drives supported | 4 |
| RAID levels | 0/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 11 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Bluetooth version | 5.4 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi 7 BE1750 |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 11 x64 |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 slots | 3 |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Manufacturer Code | MEG Z890 ACE |
| ELKO Code | 1426137 |
| Warranty | 36 |
| Expansion slots — M.2 | 5 |
| Expansion slots — PCI-Express 16x | 3 |
| Input/Output connectors — Audio-In | 1 |
| Input/Output connectors — Audio-Out | 1 |
| Input/Output connectors — HDMI | 1 |
| Input/Output connectors — Optical S/PDIF | 1 |
| Input/Output connectors — RJ45 | 1 |
| Input/Output connectors — USB 3.1 | 11 |
| Input/Output connectors — USB-C | 2 |
| Input/Output connectors — USB-C w/Thunderbolt | 2 |
| Interface — Bluetooth | Yes |
| Interface — SATA | Yes |
| Interface — SATA 3.0 | Yes |
| Interface — USB 2.0 | Yes |
| Interface — USB 3.0 | Yes |
| Interface — WiFi | Yes |
