MSI Z890 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Laost otsas
Laost otsas

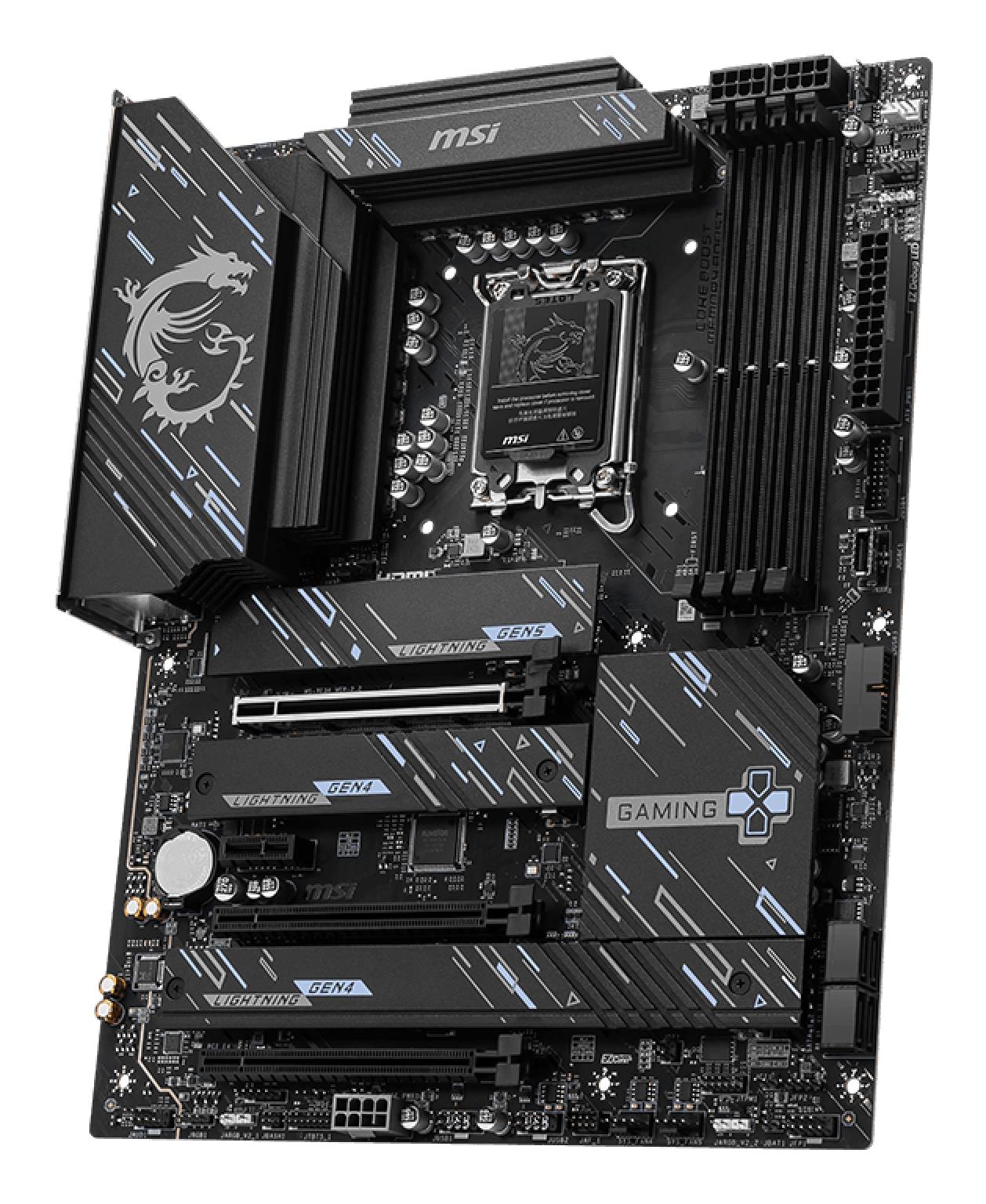

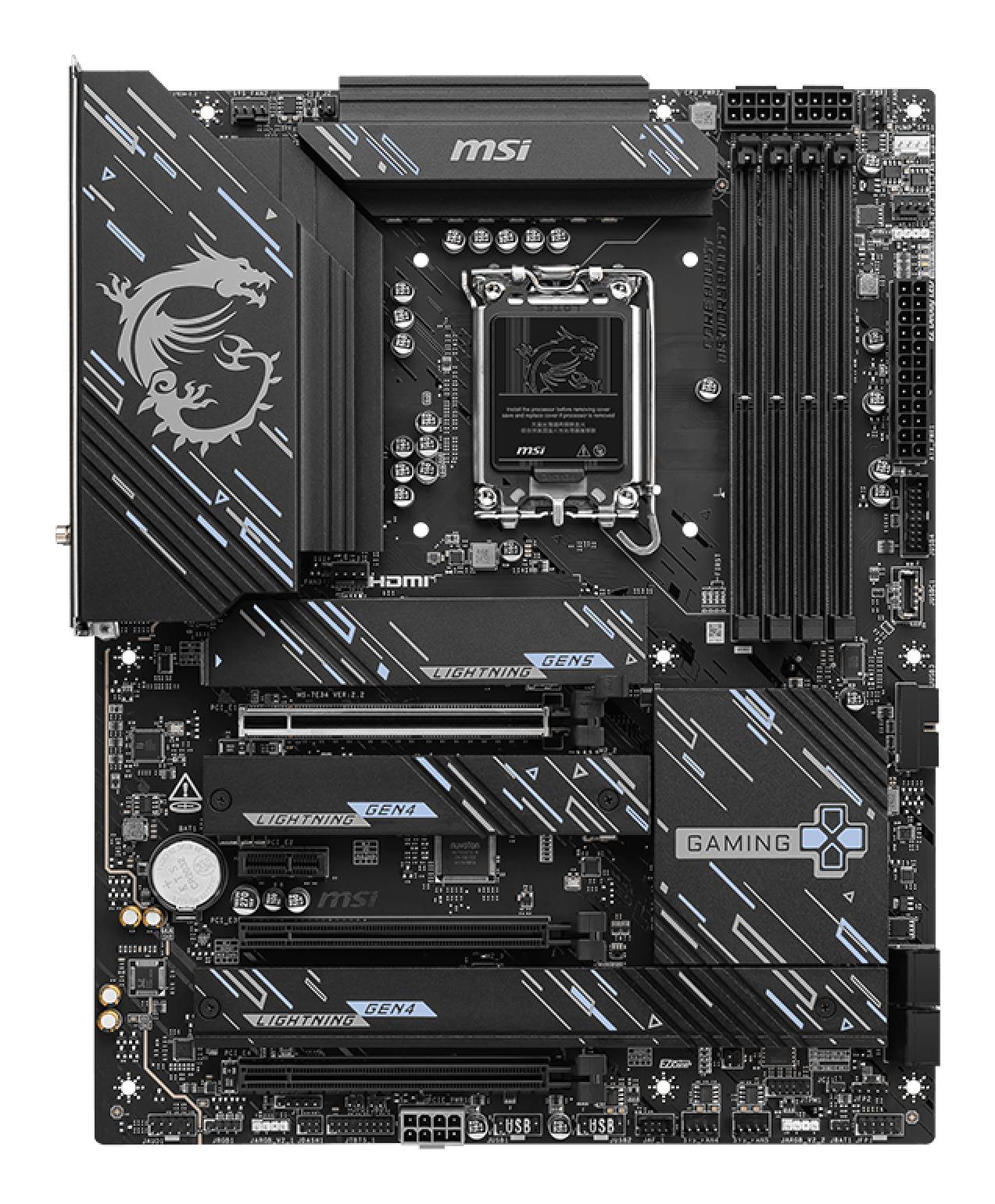

Z890 GAMING PLUS WIFI
Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for 24/7 non-stop gaming of Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+1+1+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
| Vendor | MSI |
|---|---|
| M.2 | 4 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 4.0 4x | 2 |
| PCI-Express 5.0 16x | 1 |

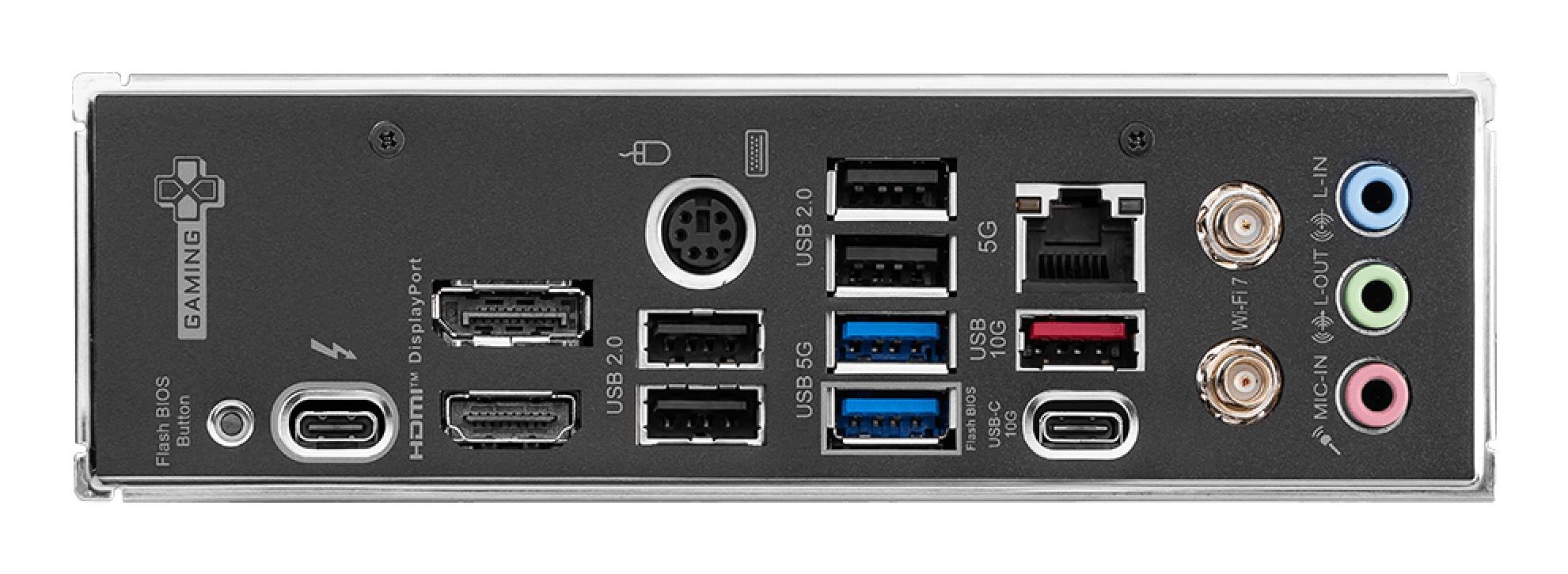

| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| USB-C w/Thunderbolt | 1 |
| Bluetooth | Yes |
| SATA | Yes |
| Thunderbolt | Yes |
| WiFi | Yes |
| Model | Z890 GAMING PLUS WIFI |
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| Form Factor | ATX |
| Memory type | DDR4 |
| Frequency speed | 4800/6400/7200/9200 MHz |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.008122 cubm |
| Product Net Weight | 2 kg |
| Unit Calculated Weight | 2.14 kg |
| Summary | MSI Z890 GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor | 256 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | Intel LGA1851 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9200 MHz |
| Supported memory clock speeds | 6400/9200 MHz |
| Supported memory types | DDR5-SDRAM |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 4 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| On-board graphics card | No |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi 7 BE1750 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 11 |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 2 |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Manufacturer Code | Z890GAMINGPLUSWIFI |
| ELKO Code | 1424201 |
| Warranty | 36 |
