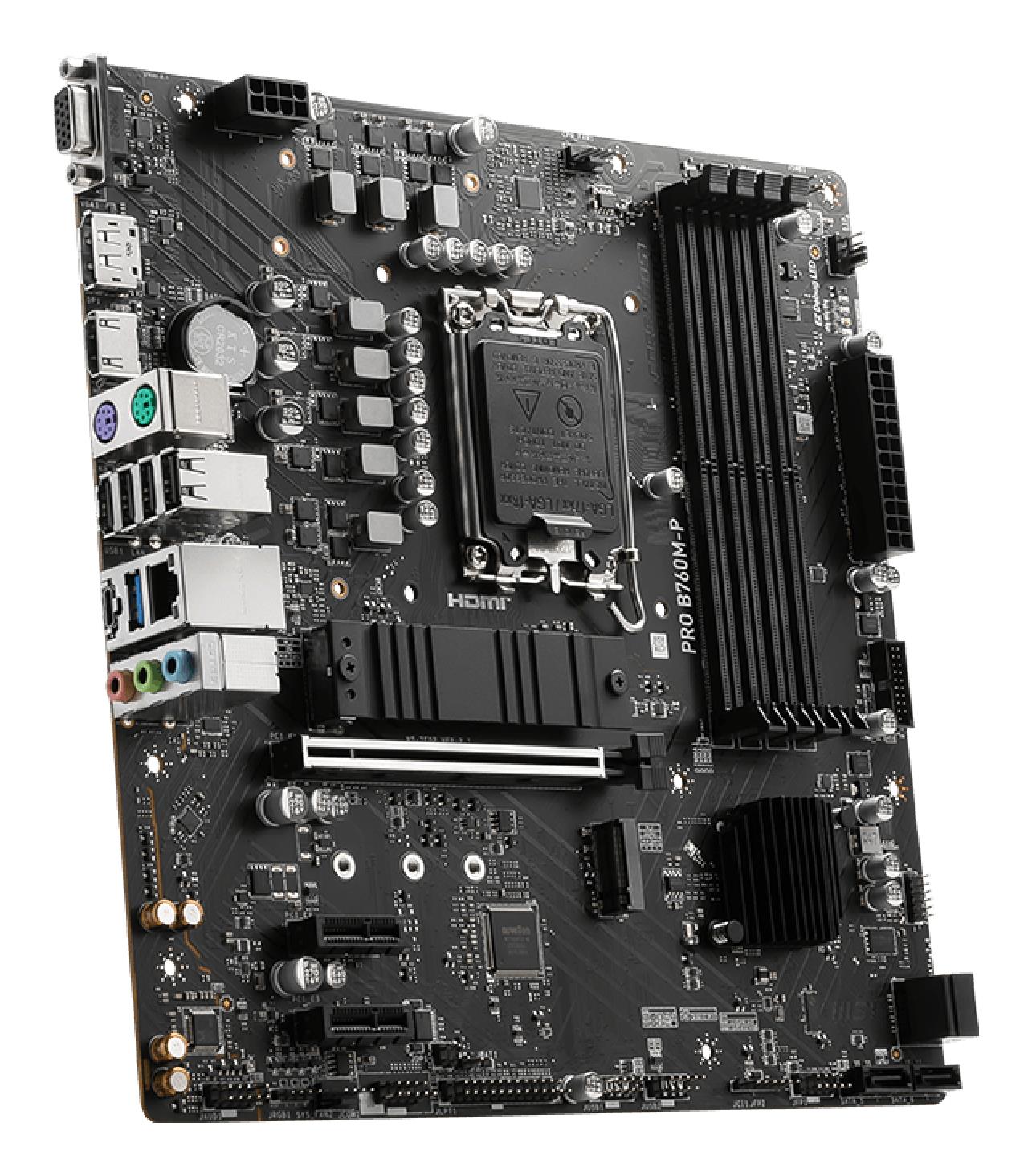

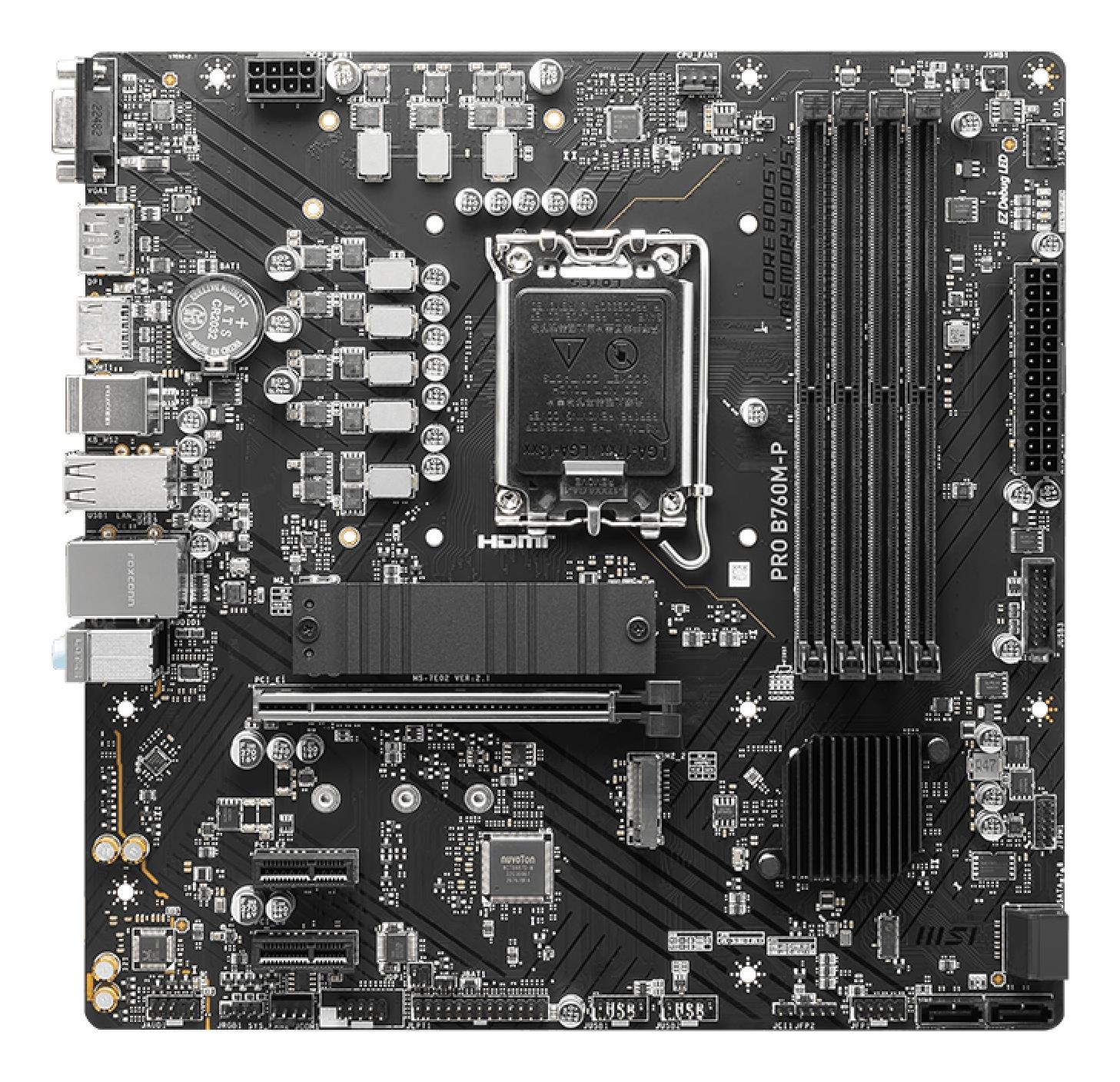

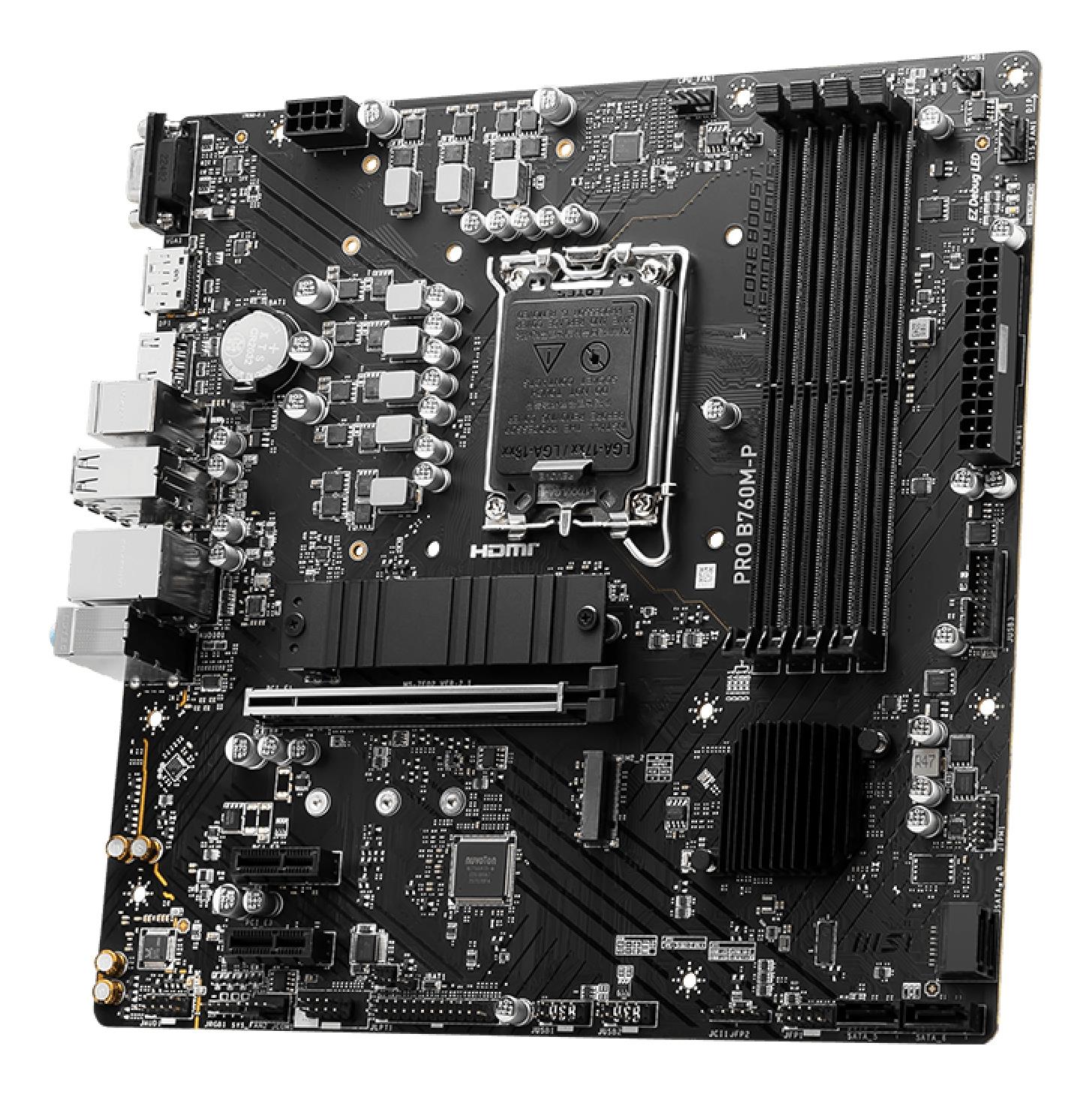

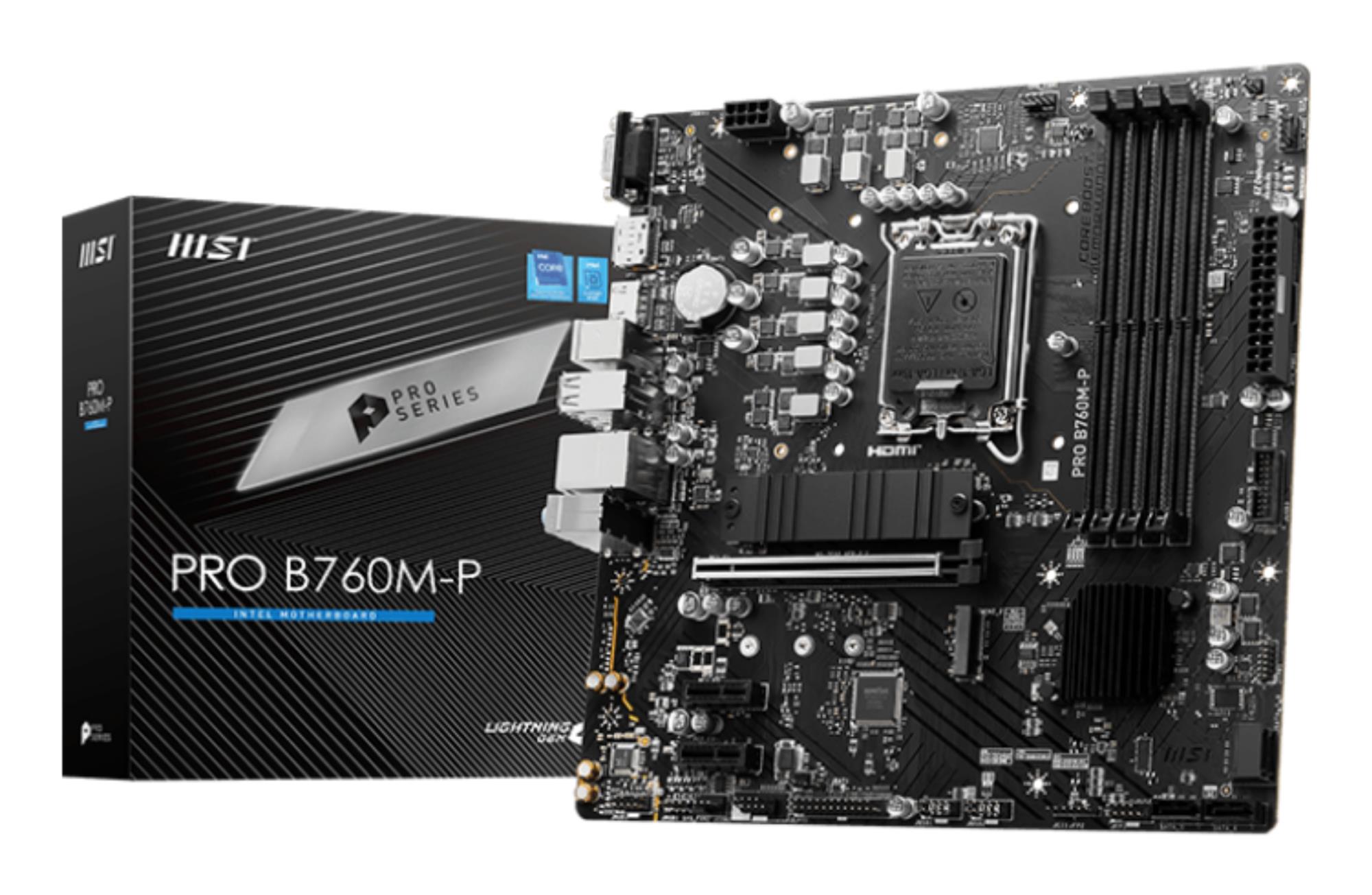

MSI PRO B760M-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
100 laos
100 laos
PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Diy Friendly
Cooling Overview
msi PRO B760M-P cooling overview mobile
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Diy Friendly
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
Bios & software
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
| Vendor | MSI |
|---|---|
| M.2 | 2 |
| PCI-Express 16x | 1 |
| PCI-Express 1x | 2 |

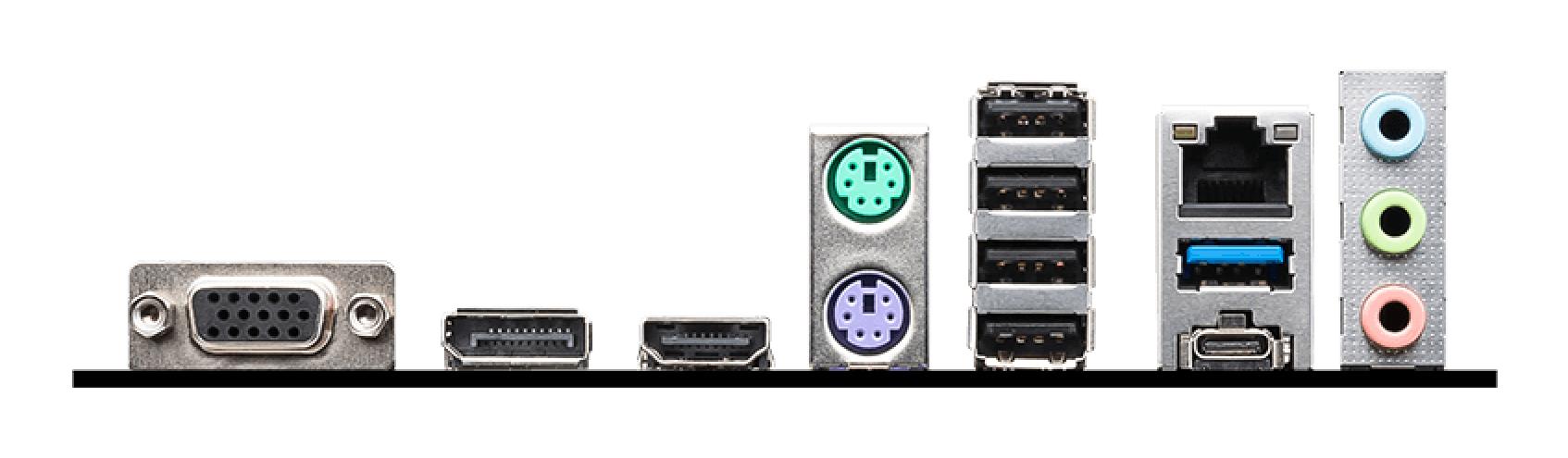

| 15pin D-sub | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 2 |
| RJ45 | 1 |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | 1 |
| SATA | Yes |
| Model | PRO B760M-P |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | Realtek RTL8111H (Gigabit) |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00462 cubm |
| Product Net Weight | 0.72 kg |
| Unit Calculated Weight | 0.9 kg |
| Summary | MSI PRO B760M-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Compatible processor series | Intel® Celeron®/Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 192 GB |
| Number of memory slots | 4 |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | SATA III |
| Supported storage drive types | HDD & SSD |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| Parallel connector | Yes |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ACPI version | 6.4 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| System Management BIOS (SMBIOS) version | 3.5 |
| Depth | 243.84 mm |
| Width | 243.84 mm |
| Cables included | SATA |
| Manufacturer Code | PROB760M-P |
| ELKO Code | 1396555 |
| Warranty | 36 |
