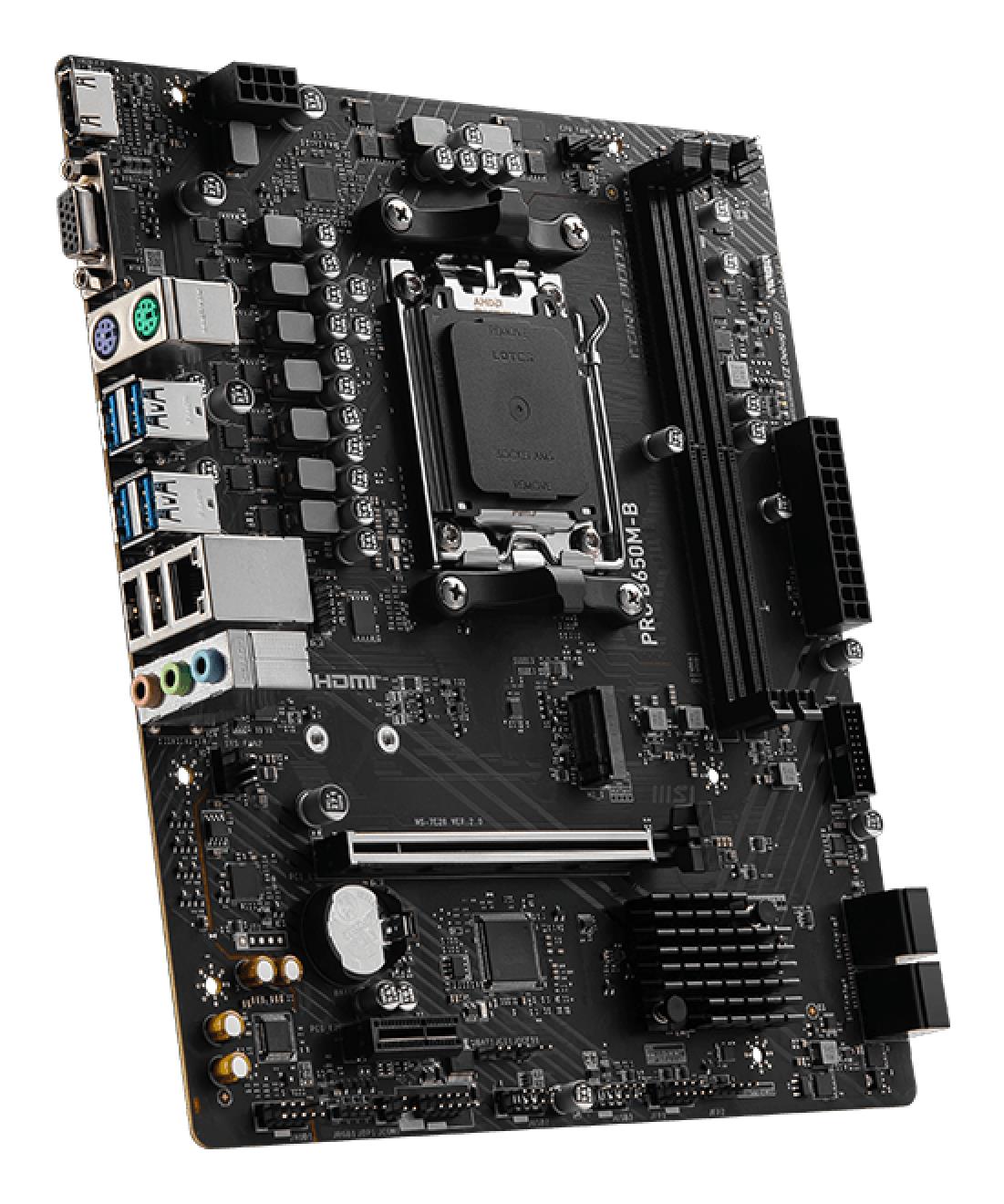

MSI PRO B650M-B. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Laost otsas
Laost otsas
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
| Kaal | 0,8 kg |
|---|---|
| Vendor | MSI |
| M.2 | 1 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
| 15pin D-sub | 1 |
| Audio port | 3 |
| HDMI | 1 |
| PS/2 | 2 |
| RJ45 | 1 |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| SATA | Yes |
| Serial | Yes |
| Model | PRO B650M-B |
| Chipset | AMD B650 |
| Socket | SAM5 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC897 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.004659 cubm |
| Product Net Weight | 0.8 kg |
| Unit Calculated Weight | 0.922 kg |
| Summary | MSI PRO B650M-B. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Maximum internal memory supported by processor | 96 GB |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory | 96 GB |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 6800 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz |
| Supported memory types | DDR5-SDRAM |
| RAID levels | 0/1/10 |
| Supported storage drive interfaces | M.2,SATA |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |

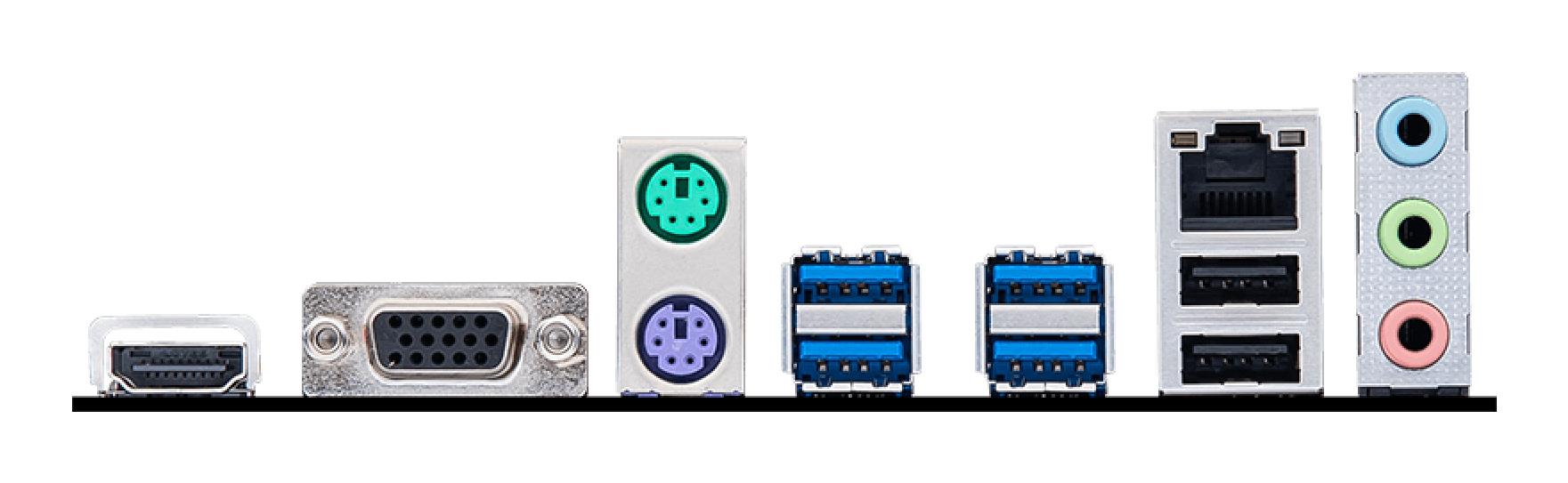

| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan |
| Windows operating systems supported | Windows 11 x64 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| ACPI version | 6.4 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| System Management BIOS (SMBIOS) version | 3.5 |
| Depth | 243.84 mm |
| Width | 215 mm |
| CnCode | 84733020 |
| Manufacturer Code | PROB650M-B |
| ELKO Code | 1409370 |
| Warranty | 36 |
