Montech HS01 PRO. Form factor: Midi Tower, Type: PC, Product colour: White. Power supply location: Bottom, Supported power supply form factors: ATX, SFX. Front fans diameters supported: 120,140 mm, Rear fans installed: 2x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 3.5″, SSD form factor: 2.5″. Width: 240 mm, Depth: 480 mm, Height: 480 mm
10 laos
10 laos

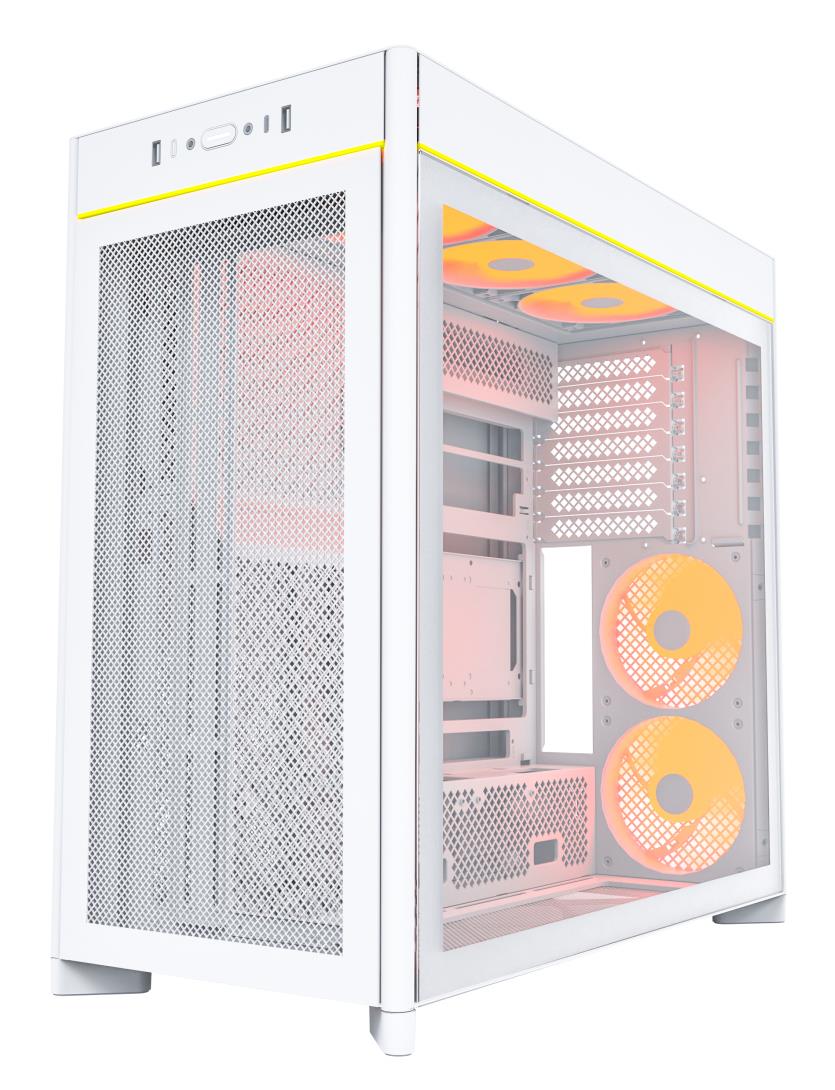

The Vessel to Connect Your Desire
Designed to fulfill your performance aspirations, the HS01 is engineered for optimal cooling and a performance-driven aesthetic. With advanced flexibility and broad compatibility, it supports everything you need for your ideal build.
Craft Your Build, Showcase Your Style

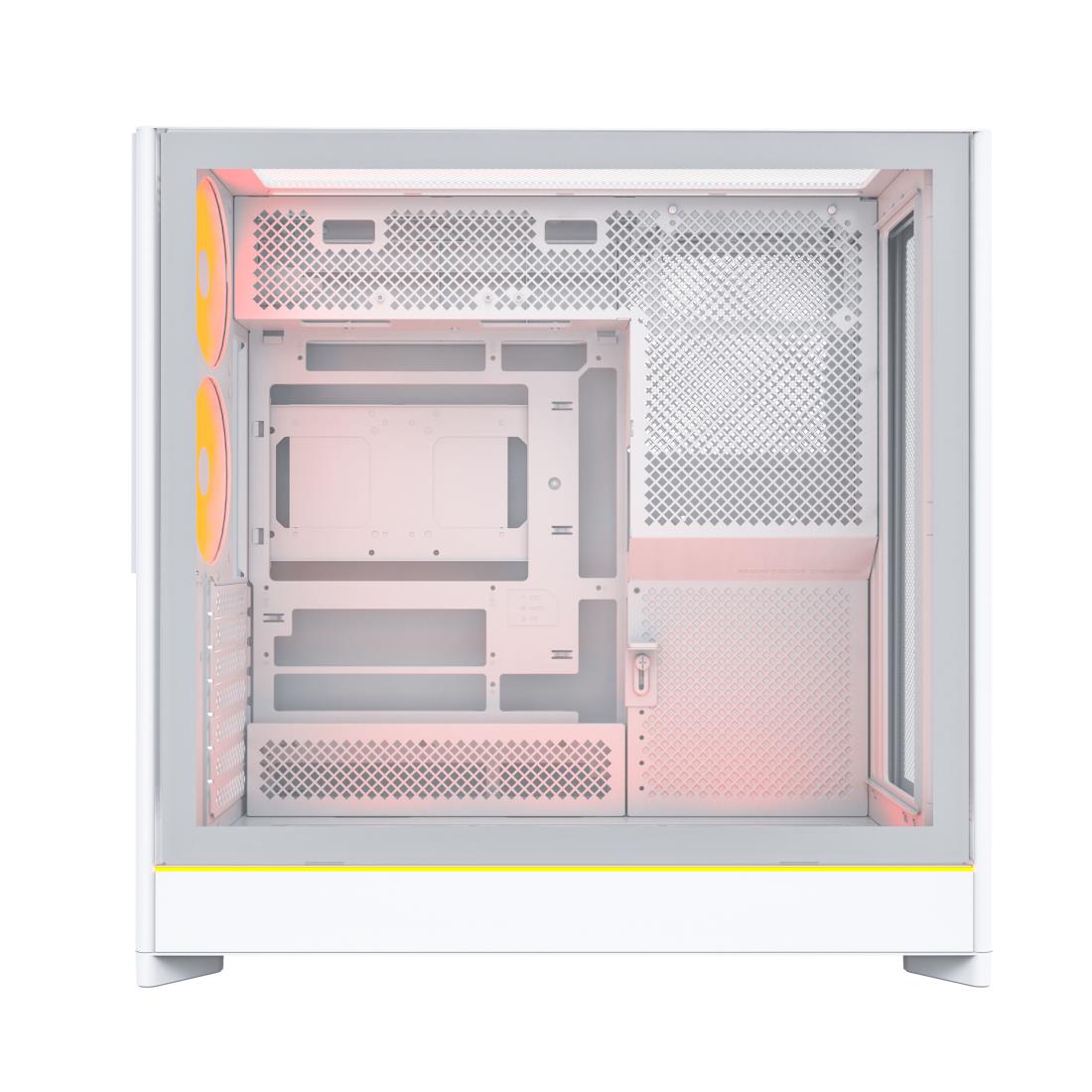

The reversible design allows the entire setup to be positioned with the side glass panel on either the left or right, ensuring your build is always on display.
One-Piece, Optimal Support

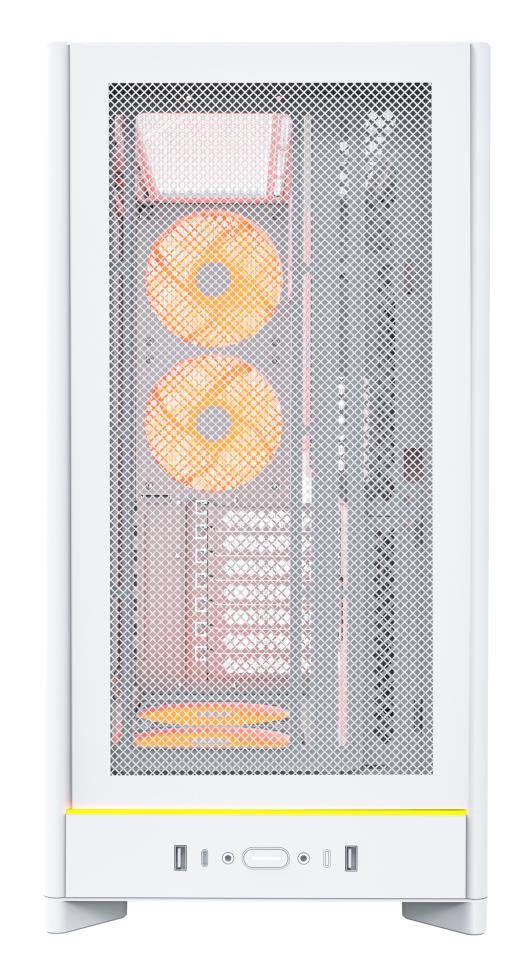

The integrated front bezel, paired with the adjustable front fan bracket, creates a cohesive structure that offers both robust support and flexible airflow performance.
Chimney-Style Cooling
The natural chimney effect drives efficient airflow from bottom intake to top exhaust.
Dual rear fans further enhance heat dissipation, ensuring consistent and reliable cooling performance.
Next-Level Airflow Efficiency
HS01 offers 10% better cooling than traditional layouts, with efficiency comparable to open-frame designs.
Flexible Cooling Compatibility
With an exterior installation design and re-organized rear fan position, the HS01 maximizes interior space, supporting more fans and AIO size options for enhanced cooling flexibility.
Top-Down Strength
Sturdy corner pillars ensure balanced weight distribution and structural integrity.
ARGB and I/O Built to Standard
Customize vibrant ARGB lighting with 29 stylish modes. Features USB Type-C, two Type-A ports, audio and mic port for seamless connectivity.
Optimized Fans Support
Repositioned rear fans and radiator support outward, freeing up interior space for more cooling potential without compromising the capacity.
Back-Connect Motherboard Ready
Supports both standard and back-connect motherboards.
Fully compatible with MSI Project Zero, ASUS BTF motherboards and more.
The PRO Experience

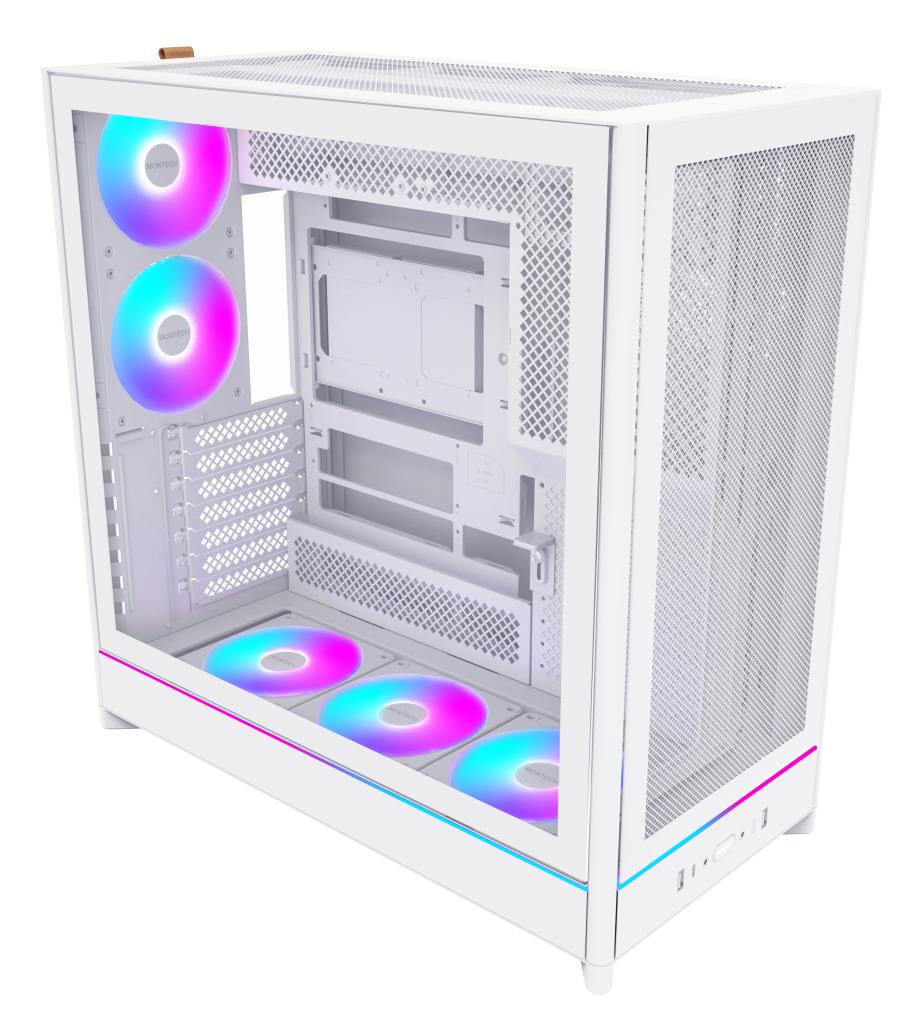

HS01 PRO comes with 5 pre-installed GF120 V2 ARGB fans, fully supporting motherboard ARGB synchronization for seamless lighting control.
| Mõõtmed | 48 × 24 × 48 cm |
|---|---|
| Vendor | MONTECH |
| Summary | Montech HS01 PRO. Form factor: Midi Tower, Type: PC, Product colour: White. Power supply location: Bottom, Supported power supply form factors: ATX, SFX. Front fans diameters supported: 120,140 mm, Rear fans installed: 2x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 3.5", SSD form factor: 2.5". Width: 240 mm, Depth: 480 mm, Height: 480 mm |
| Anti-dust filter | Yes |
| Form factor | Midi Tower |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Maximum CPU cooler height | 175 mm |
| Maximum graphics card length | 420 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| On/off button | Yes |
| Product colour | White |
| RGB control button | Yes |
| Side window | Yes |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX |
| Type | PC |
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX/SFX |
| Audio input | Yes |
| Audio output | Yes |
| Built-in display | No |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Bottom fans diameters supported | 120 mm |
| Bottom fans installed | 3x 120 mm |
| Bottom radiator sizes supported | 120/240 mm |
| Front fans diameters supported | 120/140 mm |
| Number of bottom fans supported (max) | 3 |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 2 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Rear fans installed | 2x 120 mm |
| Top fans diameters supported | 120 mm |
| Top radiator sizes supported | 120/240/360 mm |
| Adjustment internal layout | Yes |
| SSD form factor | 2.5" |
| Supported HDD sizes | 3.5 " |
| Warranty period | 1 year(s) |
| Depth | 480 mm |
| Height | 480 mm |
| Width | 240 mm |
| Package depth | 563 mm |
| Package height | 573 mm |
| Package width | 323 mm |
| Model name | HS01 PRO |
| Model | MONTECH HS01 PRO (W) |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1087 cubm |
| Unit Calculated Weight | 12.4 kg |
| CnCode | 84733080 |
| Case product features | Removeable HDD basket/Transparent panel |
| Cooling & Ventilation System | 3х 120 мм – знизу; 2х 120 мм – позаду |
| Manufacturer Code | HS01 PRO (W) |
| ELKO Code | 1434112 |
| Warranty | 12 |
