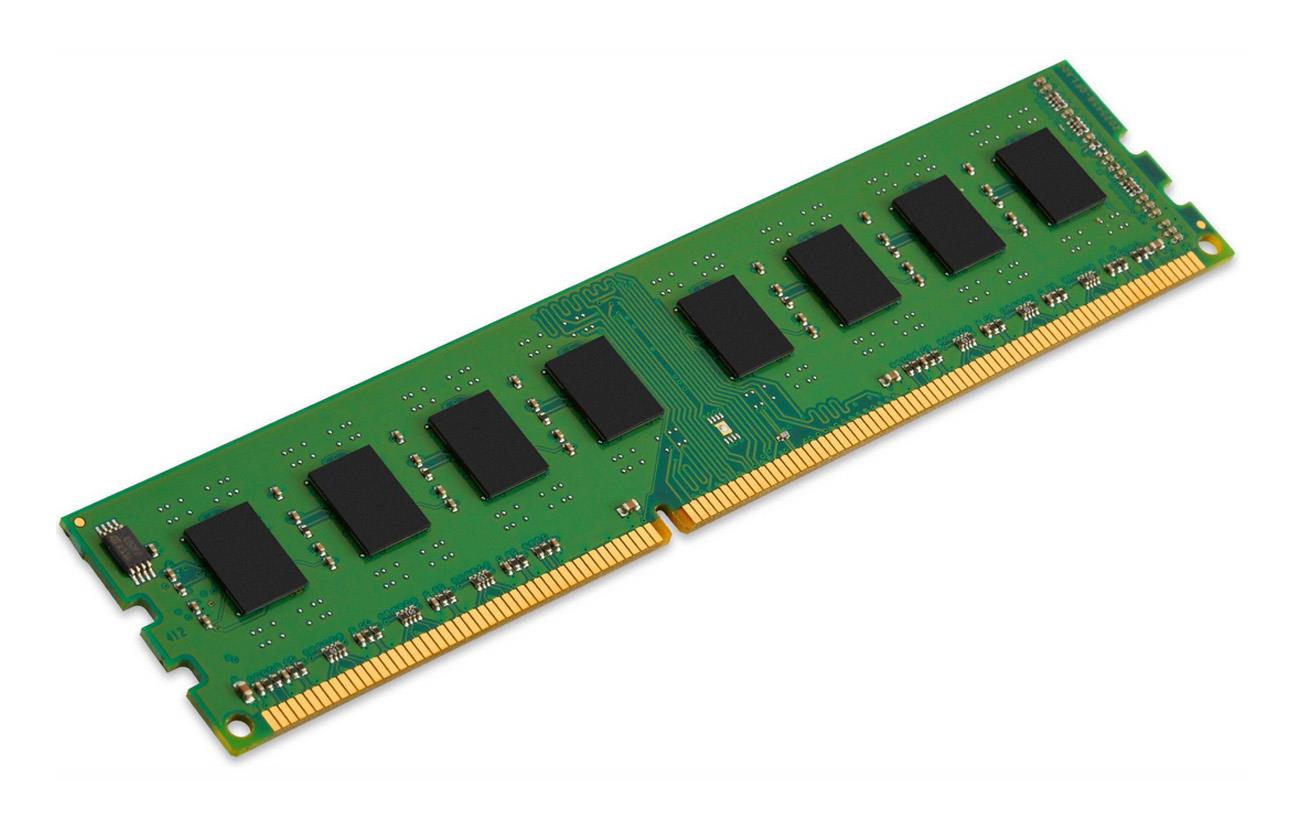

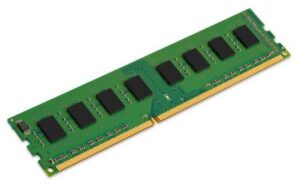

MEMORY DIMM 8GB PC12800 DDR3/KVR16N11/8 KINGSTON

Kirjeldus

Kingston Technology is the world's independent memory leader and is well-known for providing high quality memory products at an attractive price. Kingston ValueRAM is your best source for industry-standard memory to maximise the performance and productivity of your system. Built with A-grade components only, Kingston ValueRAM memory modules come with a lifetime warranty.

• JEDEC standard 1.5V Power Supply
• VDDQ = 1.5V
• 800MT/s fCK for 1600Mb/sec/pin
• 8 independent internal banks
• Programmable CAS latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write (either on the fly using A12 or MRS)
• Bi-directional Differential Data Strobe
• Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°Cº
• Asynchronous Reset
• PCB: Height 0.740” (18.75mm) or 1.180” (30.00mm)
