Lian Li SP850 BLACK. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 120 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan speed: 1000 – 2800 RPM. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Laost otsas
Laost otsas

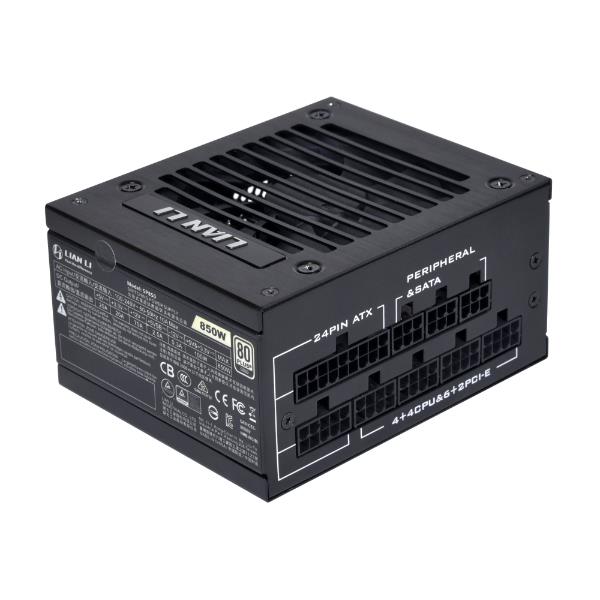

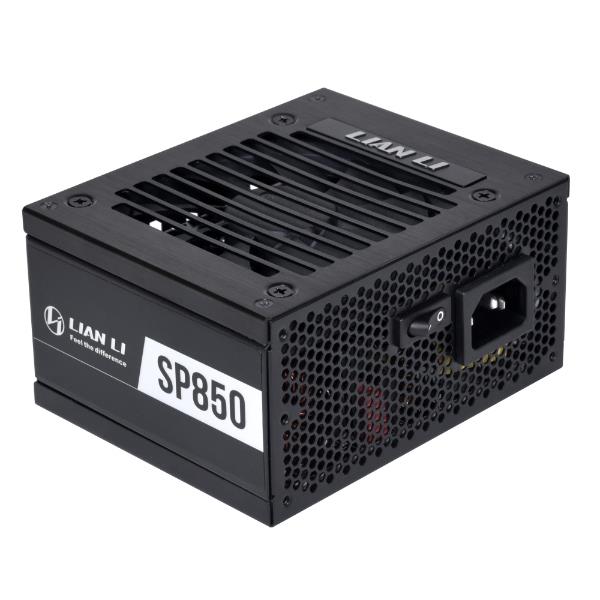

SP850
Performance SFX Form Factor Power Supply
The SP850 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
AVAILABLE IN TWO COLORS
The fully modular small PSU is offered in a sleek black aluminum housing, or in a completely white design.
80 PLUS GOLD CERTIFICATE
SP850 achieves 91.55% efficiency 115VAC at 50% load, which edges close to the 80PLUS PLATINIUM a requirement at 92% efficiency 115VAC at 50%, ensuring less power wastage.
COOLING IN SILENCE
To achieve minimal acoustic levels, the SP850 features a 92mm hydraulic bearing fan that operates at zero RPM mode until the PSU reaches 40% load or once the ambient temperature reaches 60°C.
JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.
TRANSFERS 350W- 400W
A PCIe 5.0 12-pin (12VHPWR connector cable without sideband contact) is included, which is 16 AWG thick to transfer 350W- 400W and doesn’t need the use of an adaptor for the GPUs.
FULLY MODULAR BRAIDED CABLES
All necessary braided cables are included right out of the box, ensuring reduced cable clutter and a better aesthetic.
| Mõõtmed | 10 × 6,35 × 12,5 cm |
|---|---|
| Vendor | LIAN LI |
| Summary | Lian Li SP850 BLACK. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 120 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan speed: 1000 – 2800 RPM. Cables included: CPU, PCIe, Peripheral (Molex), SATA |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (+12V) | 840 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Efficiency | 93.53 % |
| Power Factor Correction (PFC) type | Active |
| Total power | 850 W |
| Cabling type | Fully-Modular |
| CPU P4 connector (4-pin) | 1 |
| Motherboard power cable length | 300 mm |
| Motherboard power connector | 20-pin ATX |
| Number of SATA power connectors | 2 |
| PCI Express power cable length | 400 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (8-pin) | 1 |
| Peripheral (Molex) power cable length | 120 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| SATA power cable length | 120 mm |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Noise level | 40.6 dB |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC |
| Silent mode | Yes |
| Supported motherboard form factors | ATX |
| Fan speed | 1000 – 2800 RPM |
| Product colour | Black |
| Cables included | CPU,PCIe,Peripheral (Molex),SATA |
| Safety | OCP OVP OTP OPP SCP UVP |
| Depth | 100 mm |
| Height | 125 mm |
| Width | 63.5 mm |
| Warranty period | 5 year(s) |
| Model name | SP850 BLACK |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.006288 cubm |
| Unit Calculated Weight | 1.87 kg |
| Manufacturer Code | G89.SP850B.01EU |
| ELKO Code | 1433965 |
| Warranty | 24 |
| Power — AC input frequency | 50 – 60 Hz |
| Power — AC input voltage | 100 – 240 V |
| Power — Combined power (+12V) | 840 W |
| Power — Combined power (+3.3V) | 100 W |
| Power — Combined power (+5V) | 100 W |
| Power — Efficiency | 93.53 % |
| Power — Power Factor Correction (PFC) type | Active |
| Power — Total power | 850 W |
| Ports & interfaces — Cabling type | Fully-Modular |
| Ports & interfaces — CPU P4 connector (4-pin) | 1 |
| Ports & interfaces — Motherboard power cable length | 300 mm |
| Ports & interfaces — Motherboard power connector | 20-pin ATX |
| Ports & interfaces — Number of SATA power connectors | 2 |
| Ports & interfaces — PCI Express power cable length | 400 mm |
| Ports & interfaces — PCI Express power connectors (6+2 pin) | 2 |
| Ports & interfaces — PCI Express power connectors (8-pin) | 1 |
| Ports & interfaces — Peripheral (Molex) power cable length | 120 mm |
| Ports & interfaces — Peripheral (Molex) power connectors (4-pin) | 1 |
| Ports & interfaces — SATA power cable length | 120 mm |
| Performance — 80 PLUS certification | 80 PLUS Gold |
| Performance — Bearing technology | FDB |
| Performance — Noise level | 40.6 dB |
| Performance — Power supply unit (PSU) form factor | SFX |
| Performance — Purpose | PC |
| Performance — Silent mode | Yes |
| Performance — Supported motherboard form factors | ATX |
| Design — Fan speed | 1000 – 2800 RPM |
| Design — Product colour | Black |
| Packaging content — Cables included | CPU,PCIe,Peripheral (Molex),SATA |
| Safety regulation & standards — Safety | OCP OVP OTP OPP SCP UVP |
| Weight & dimensions — Depth | 100 mm |
| Weight & dimensions — Height | 125 mm |
| Weight & dimensions — Width | 63.5 mm |
| Logistics data — Warranty period | 5 year(s) |
