Lian Li SP V2 Gold. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 350 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 9.2 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 100 mm, Height: 63.5 mm
100 laos
100 laos

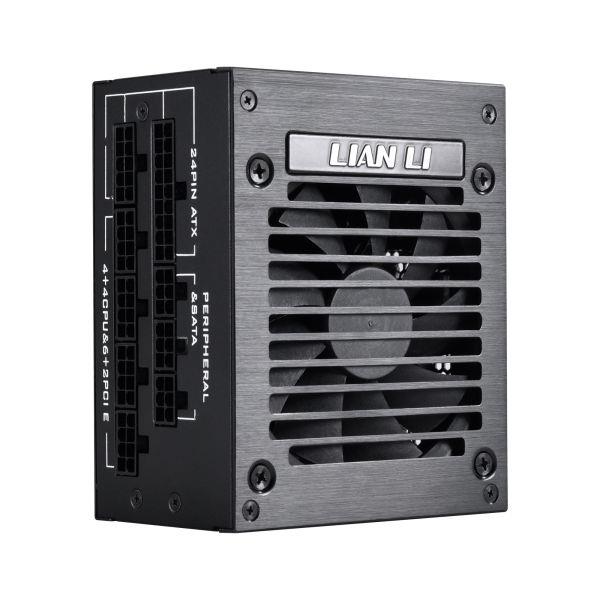

PERFORMANCE SFX FORM FACTOR POWER SUPPLY
The SP V2 Gold is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.

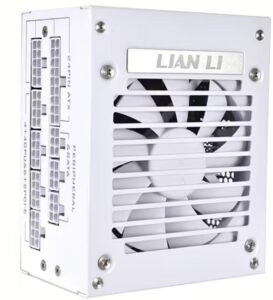

AVAILABLE IN TWO COLORS & TWO WATTAGES
Choose the fully modular SFX PSU in black or white, with 850W or 750W options to perfectly match your build.
COMPACT SIZE, BIG PERFORMANCE
Measuring 125 × 100 × 63.5 mm, this compact PSU saves valuable space inside the builds without compromising on power delivery.
80 PLUS GOLD CERTIFICATE
With 80 PLUS Gold certification, the SP V2 Gold delivers over 90% efficiency at 50% system load under 115V AC input conditions, ensuring high energy efficiency with stable power delivery and minimal energy loss.
ATX 3.1 READY WITH 12V-2×6 CONNECTOR
The SP V2 Gold features a next-gen 12V-2×6 power connector compliant with the latest ATX 3.1 specification, providing direct support for PCIe 5.0 graphics cards and addressing the growing power demands of modern systems.
LIAN LI CUSTOM 12V-2×6 POWER CABLE
LIAN LI’s in-house developed 12V-2×6 power cable features a custom-molded design combined with alloy copper soldered terminals to deliver superior stability and efficient power delivery. Built to meet the demanding needs of high-end graphics cards, this cable ensures safer, more durable connections for your cutting-edge system.
Each cable is engineered for ease of use, with dual-color connector housings for intuitive installation, reinforced soldering for improved reliability, and a 20.5mm connector width optimized to prevent interference during GPU mounting.
FDB FAN FOR QUIET COOLING
The SP V2 Gold utilizes a 92mm FDB fan to deliver efficient cooling with low noise. Even under sustained high workloads, it maintains stable performance while ensuring silent operation.
JAPANESE ELECTROLYTIC CAPACITORS
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.
REFINED DESIGN WITH FULLY MODULAR CABLES
The SP V2 Gold features a fully modular cable system with all necessary braided cables included out of the box, reducing clutter and enhancing visual appeal.
ENHANCED DURABILITY WITH EMBOSSED CABLE DESIGN
The embossed cable design enhances both durability and flexibility, ensuring long-lasting performance even under frequent use. Its unique textured surface helps reduce tangling and knotting, delivering a smoother installation experience and cleaner cable management.
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.
| Vendor | LIAN LI |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (-12V) | 3.6 W |
| Efficiency | 90 % |
| Power Factor Correction (PFC) type | Active |
| Total power | 750 W |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Noise level | 32.5 dB |
| Power supply unit (PSU) form factor | SFX |
| Fan diameter | 92 mm |
| Fan speed | 0 – 3000 RPM |
| Product colour | Black |
| Depth | 100 mm |
| Height | 63.5 mm |
| Width | 125 mm |
| Model name | SP750 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.006264 cubm |
| Unit Calculated Weight | 1.87 kg |
| CnCode | 85044095 |
| Summary | Lian Li SP V2 Gold. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 350 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 9.2 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 100 mm, Height: 63.5 mm |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Input current | 5 – 10 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | No load operation/Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage |
| Cabling type | Fully-Modular |
| CPU power cable length | 600 mm |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 350 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 7 |
| PCI Express power cable length | 400 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (8-pin) | 1 |
| Peripheral (Molex) power cable length | 350 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| SATA power cable length | 350 mm |
| ATX version | 3.1 |
| Purpose | PC |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 – 40 °C |
| Long Description | Lian Li SP V2 Gold. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 350 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 9.2 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 100 mm, Height: 63.5 mm |
| Bullet Points | Compact 125 × 100 × 63.5 mm SFX size for space-limited builds80 PLUS Gold certified with 90%+ efficiency at 50% load (115V)ATX 3.1 & PCIe 5.0 ready with native 12V-2×6 GPU supportExclusive 12V-2×6 cable design prevents GPU clearance issues92 mm FDB fan with ZERO RPM mode for silent operationFully modular design with anti-tangle embossed cablesOffering comprehensive protection mechanisms, including OCP, OVP, SCP, OPP, UVP, OTP |
| Manufacturer Code | G9P.SP0750G.B000.EU |
| ELKO Code | 1445979 |
| Warranty | 24 |
