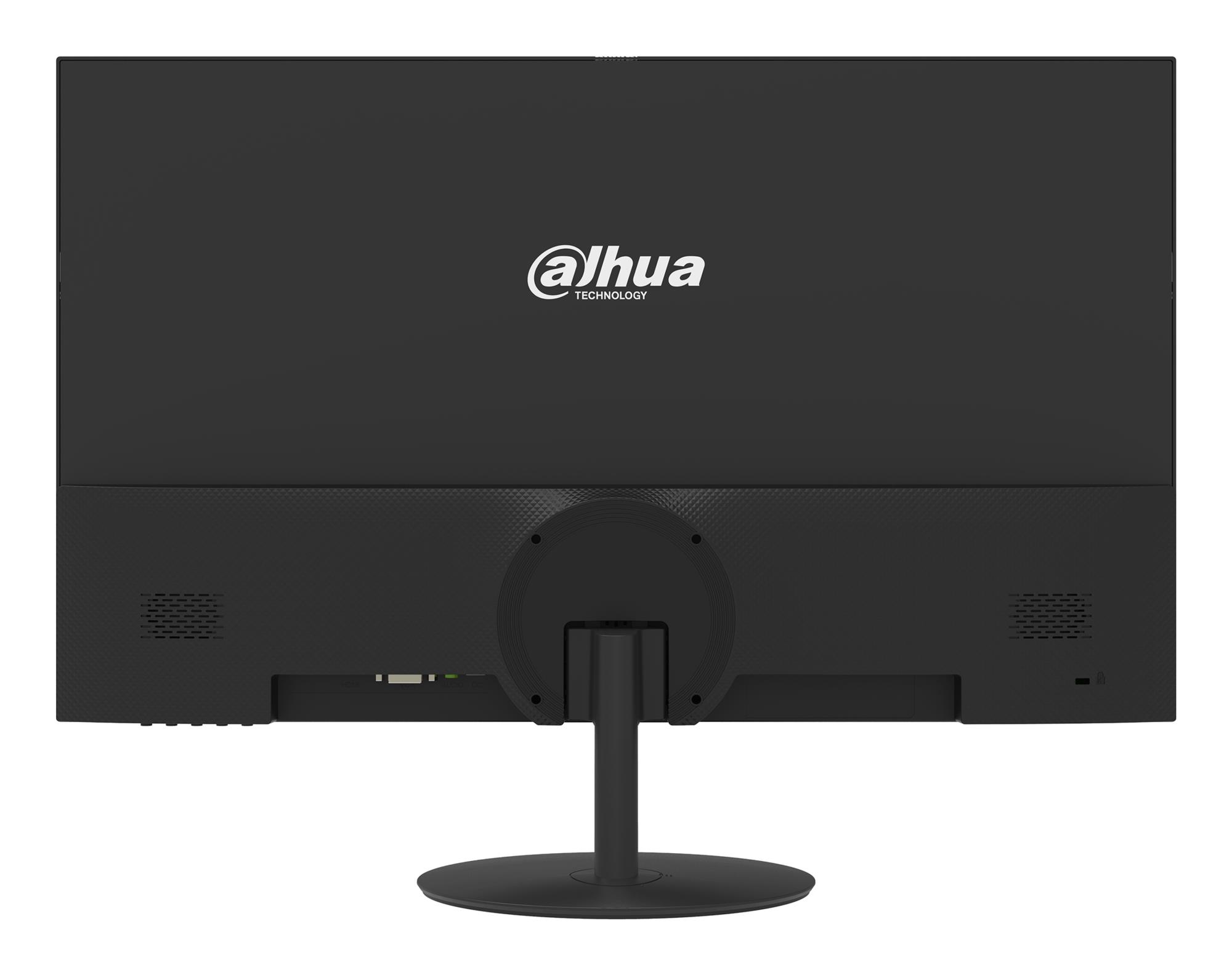

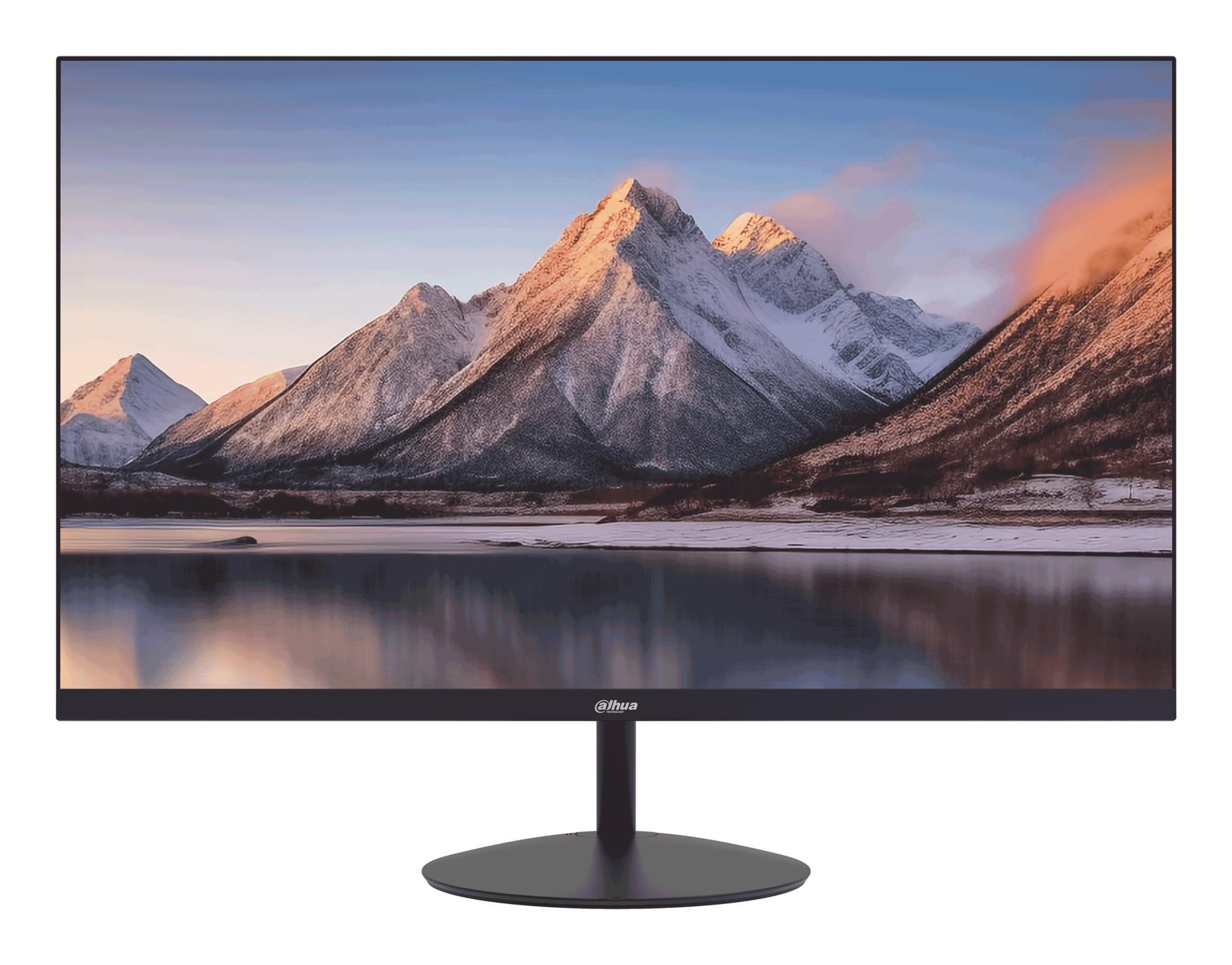

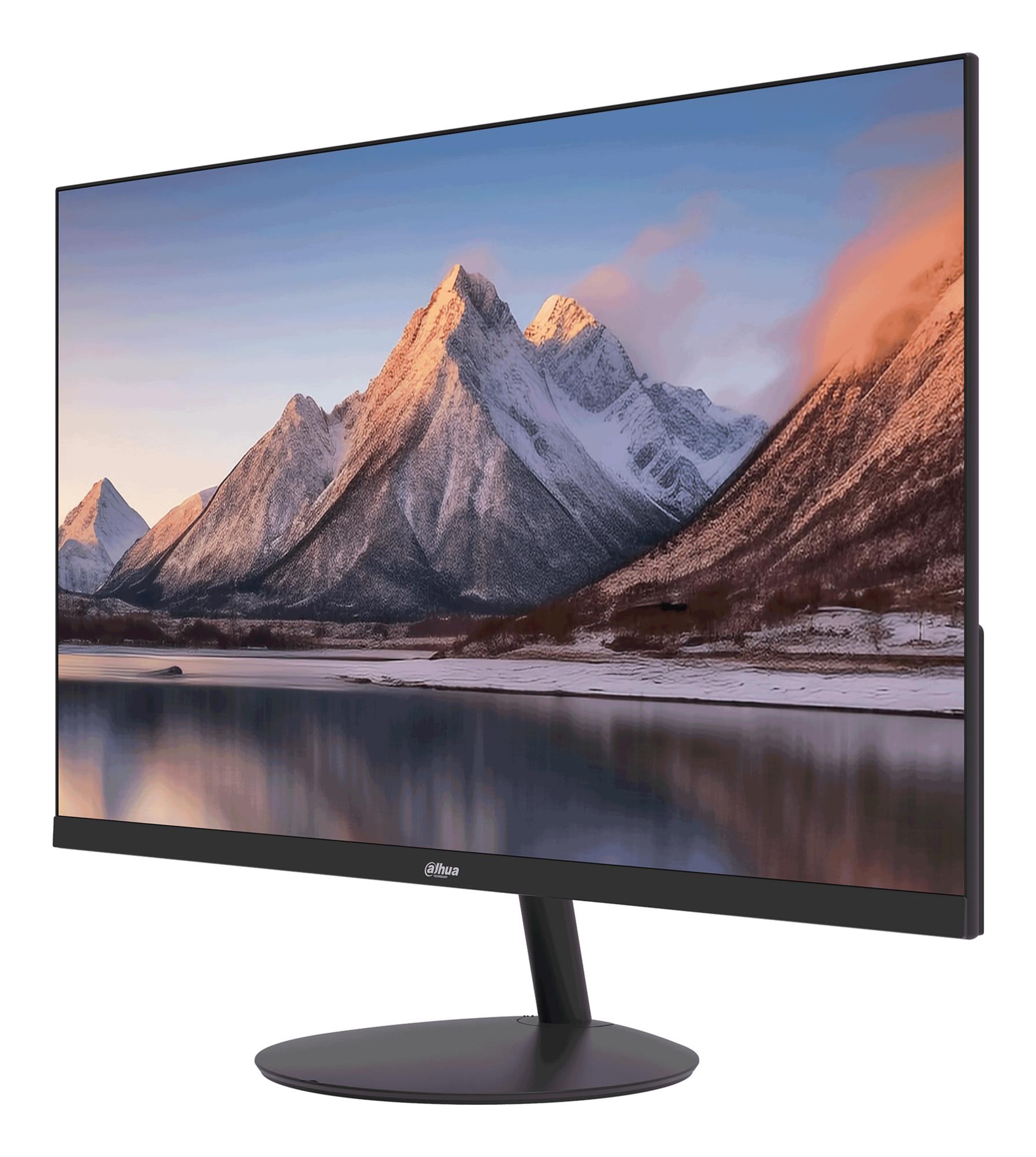

Dahua Technology LM22-A200Y. Display diagonal: 54.5 cm (21.4″), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Laost otsas
Laost otsas
| Vendor | DAHUA |
|---|---|
| Summary | Dahua Technology LM22-A200Y. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black |
| Backlight type | Edge LED |
| Colour depth | 8 bit |
| Colour gamut standard | NTSC |
| Contrast ratio (typical) | 3000:1 |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 21.45 " |
| Display diagonal (metric) | 56 cm |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| LED backlight | Yes |
| Maximum refresh rate | 100 Hz |
| Native aspect ratio | 16:9 |
| NTSC coverage (typical) | 72 % |
| Panel type | VA |
| Response time | 10 ms |
| Screen shape | Flat |
| Touchscreen | No |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Built-in camera | No |
| Built-in speaker(s) | No |
| Detachable stand | Yes |
| Feet colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Product colour | Black |
| Built-in USB hub | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone out | No |
| VGA (D-Sub) ports quantity | 1 |
| Height adjustment | No |
| Panel mounting interface | 75 x 75 mm |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 – 15 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
| AC adapter output voltage | 12 V |
| Current rating | 2 A |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Energy efficiency class (SDR) | E |
| Energy efficiency scale | A to G |
| Power consumption (max) | 16 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 16 W |
| Power supply type | External |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage relative humidity (H-H) | 5 – 90 % |
| Storage temperature (T-T) | -20 – 60 °C |
| Bezel width (bottom) | 15.2 mm |
| Bezel width (side) | 3.3 mm |
| Bezel width (top) | 3.3 mm |
| Depth (without stand) | 41.2 mm |
| Height (without stand) | 284 mm |
| Weight (without stand) | 2050 g |
| Width (without stand) | 492.7 mm |
| Package depth | 99 mm |
| Package height | 366 mm |
| Package type | Box |
| Package weight | 2860 g |
| Package width | 598 mm |
| Power adapter included | Yes |
| Stand included | Yes |
| Compliance certificates | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Mean time between failures (MTBF) | 30000 h |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/2139333/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 2139333 |
| EPREL Version Number | 1 |
| Model | DHI-LM22-A200Y |
| Unit Calculated Volume | 0.0222 cubm |
| Product Net Weight | 2.05 kg |
| Unit Calculated Weight | 3.06 kg |
| Manufacturer Code | DHI-LM22-A200Y |
| ELKO Code | 1443730 |
| Warranty | 36 |
