KEYPAD LCD /INTEGRA WHITE/INT-KWRL2-W SATEL

Kirjeldus

Wireless LCD keypad for INTEGRA and INTEGRA Plus control panels
Wireless keypad for operating and programming the INTEGRA and INTEGRA Plus control panels. It is intended for operation as part of the ABAX 2/ABAX two-way wireless system. To connect the keypad to the control panel, a controller is required. In the ABAX 2 system, all transmissions are encrypted in the AES standard.
INT-KWRL2-W complies with the requirements of EN 50131 Grade 2.

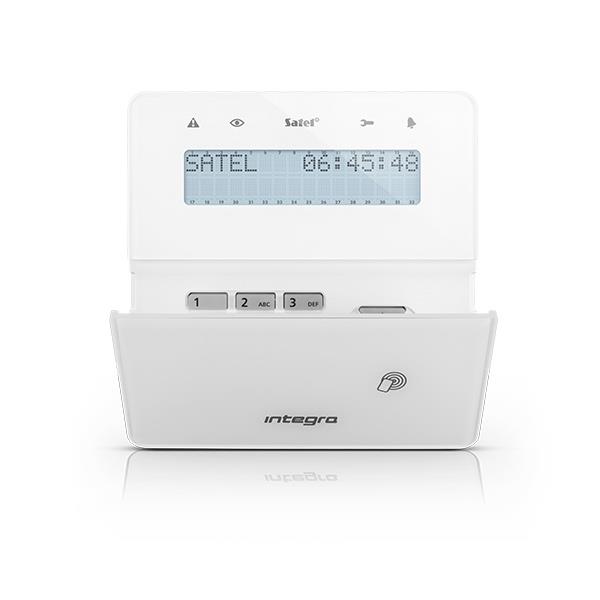

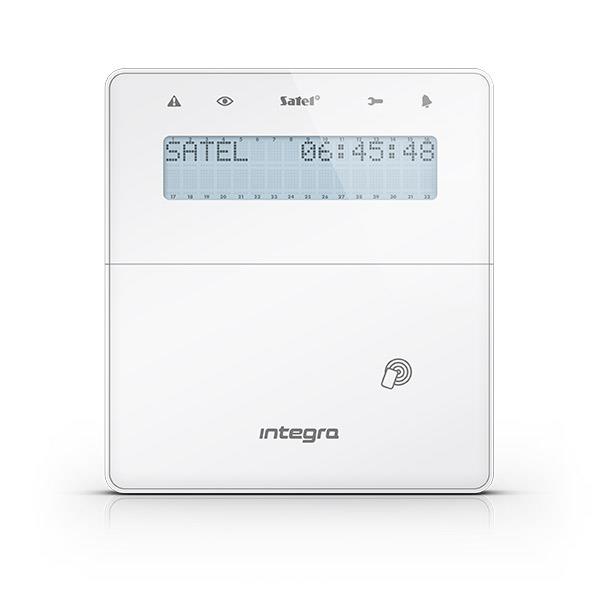

The device is equipped with a display (2×16 characters) and 12 keys (compliance with the telephone standard). Four of them are used to navigate through the menu, as well as to arm and disarm the system. The keypad can also be used to trigger alarms: FIRE, AUX, PANIC.
The available LEDs indicate the state of partitions and system, while the piezoelectric transducer is responsible for audible indication (of selected events in the system).
INT-KWLR2 has a built-in reader of proximity cards and tags for operating the alarm system. You can use them to arm the system in full arm mode, disarm the system, and clear alarm.
The display and keys are backlit in white.
The keypad is configured and its firmware updated remotely. The process is running in the background.
The keypad power source consists of two CR123A 3 V batteries, whose condition is being constantly monitored. The device works in the wake-up or sleep mode (saving energy after 20 seconds of inactivity). For additional reduction of energy consumption, you can disable the proximity card reader (e.g. when it will not be used for operating the alarm system).
INT-KWRL2 has tamper protection against opening of the enclosure and/or removal from the mount.
