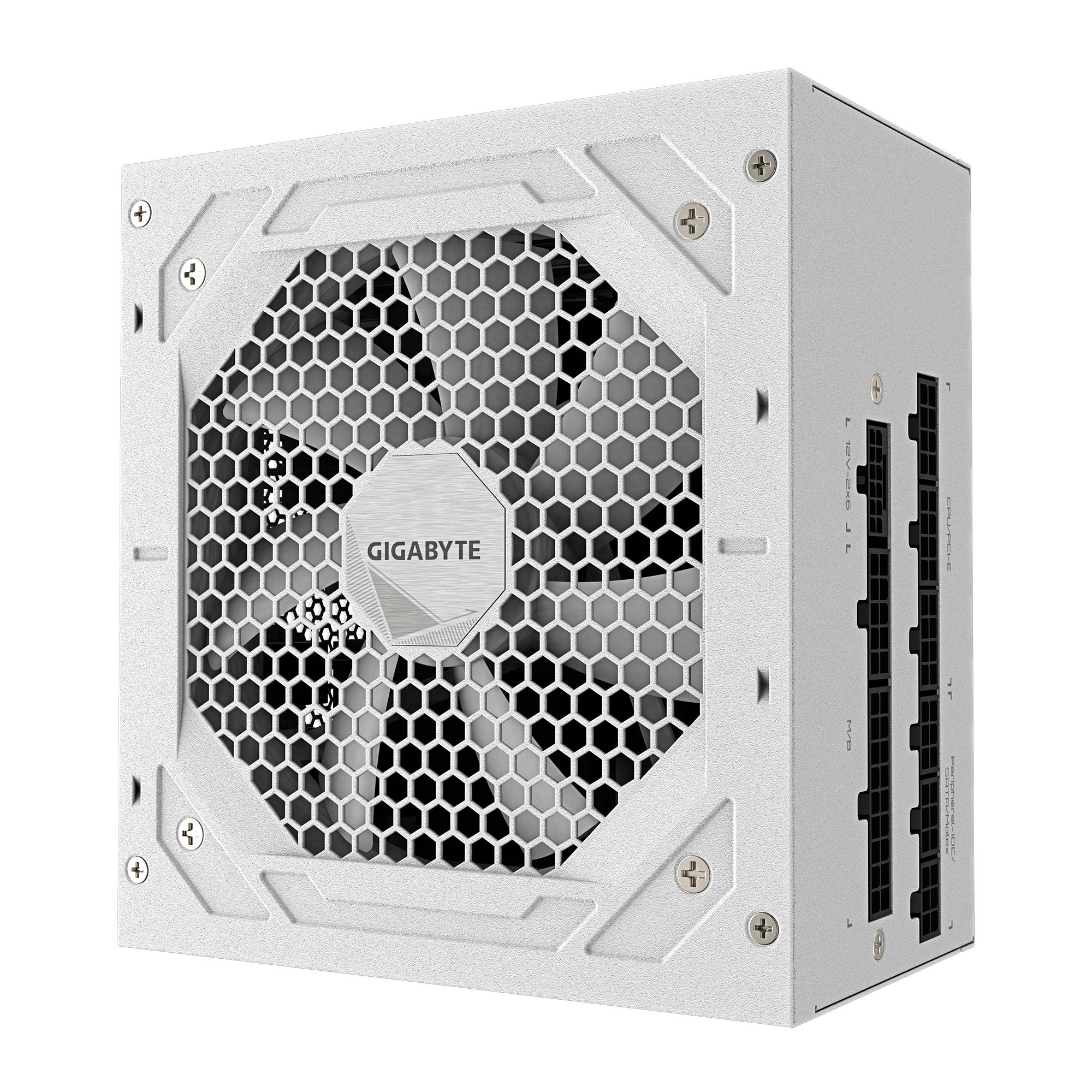

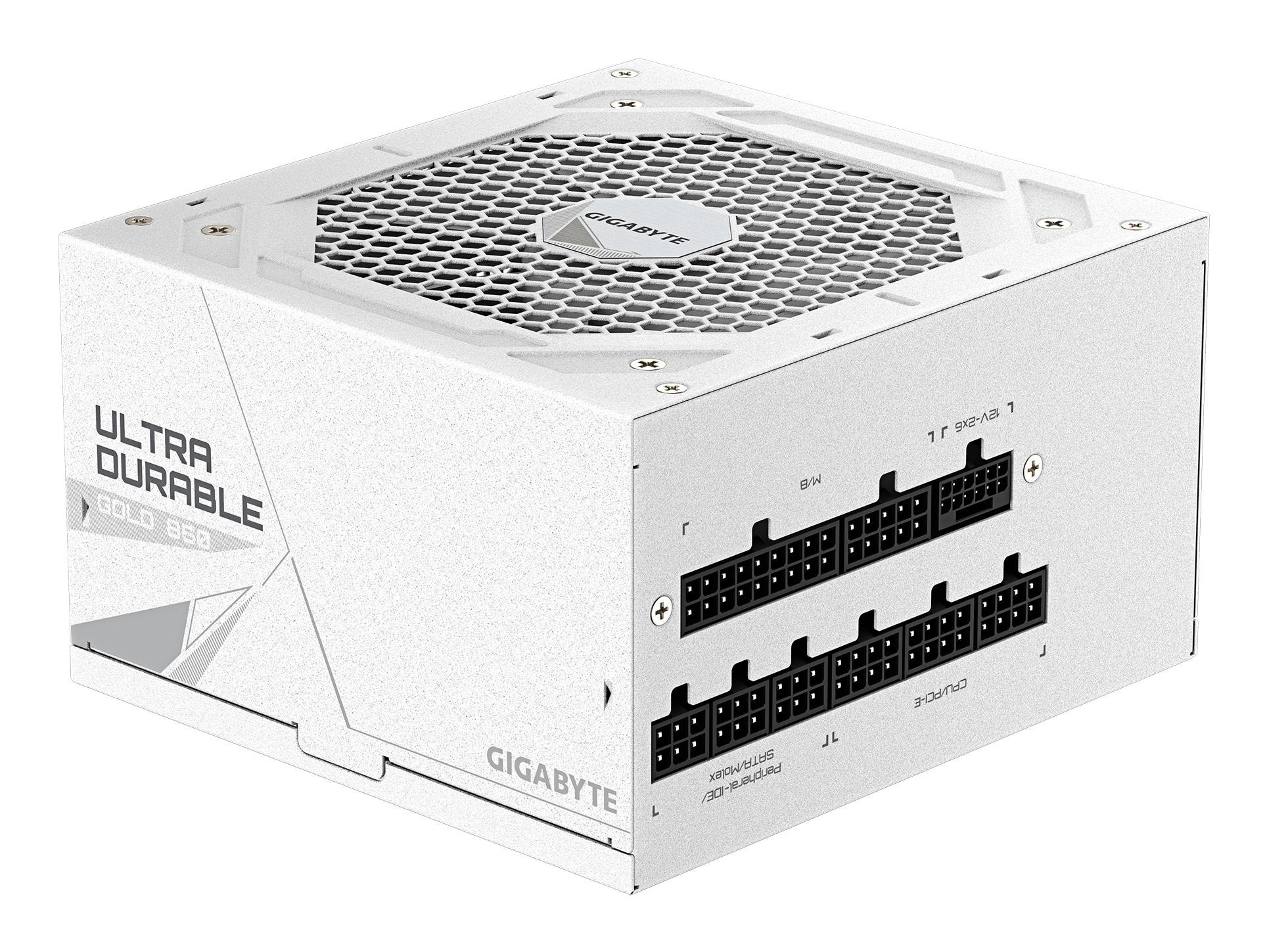

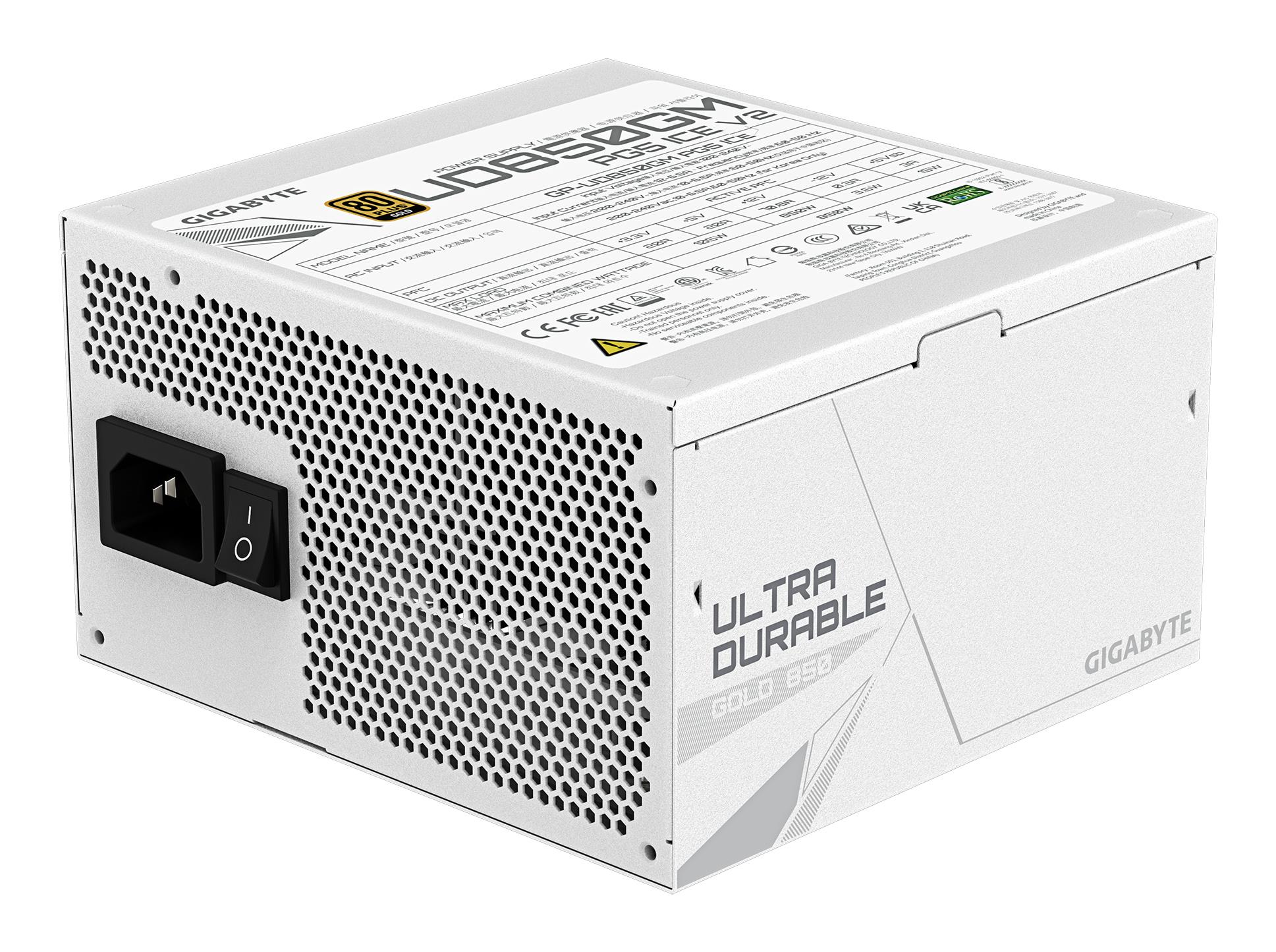

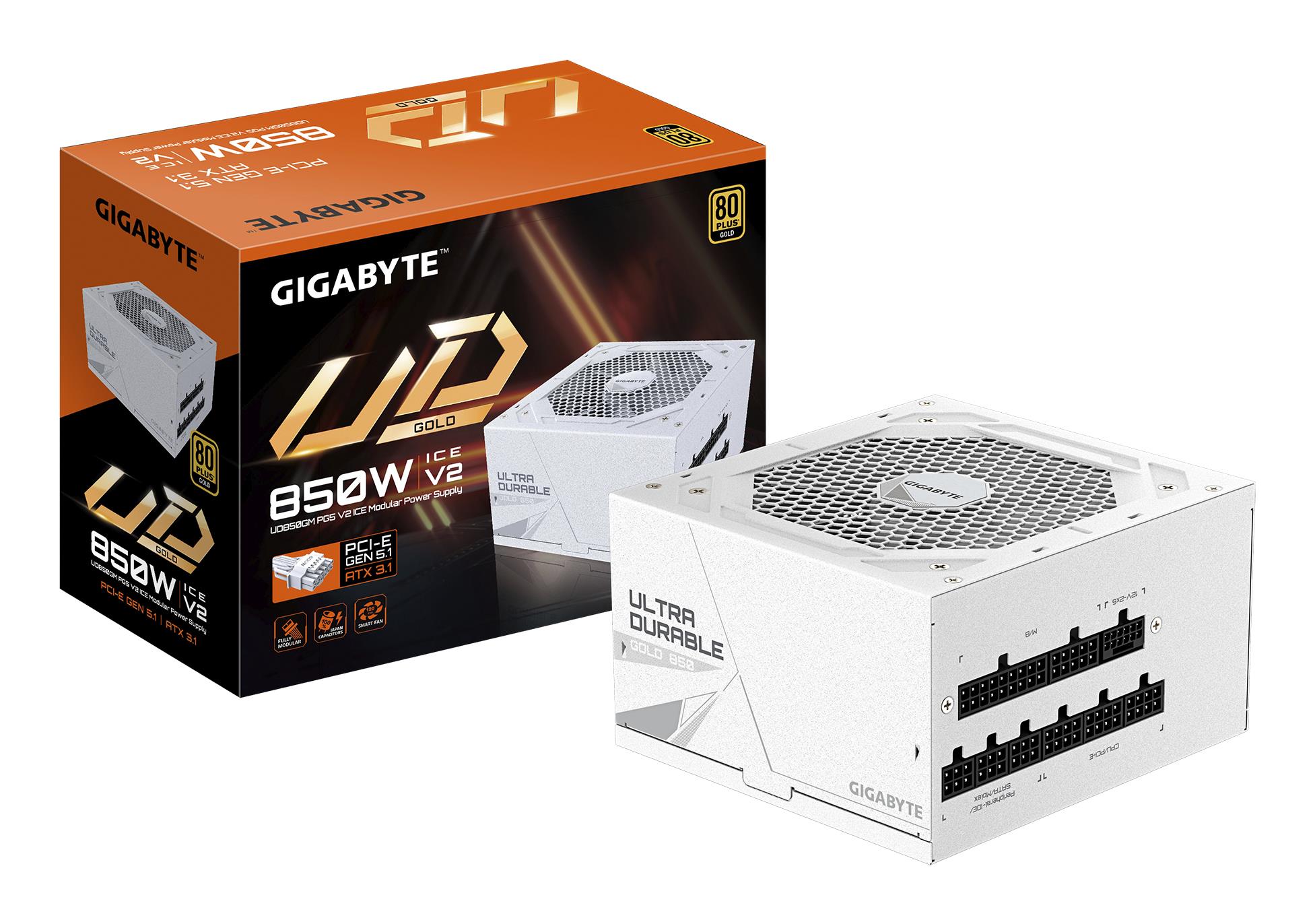

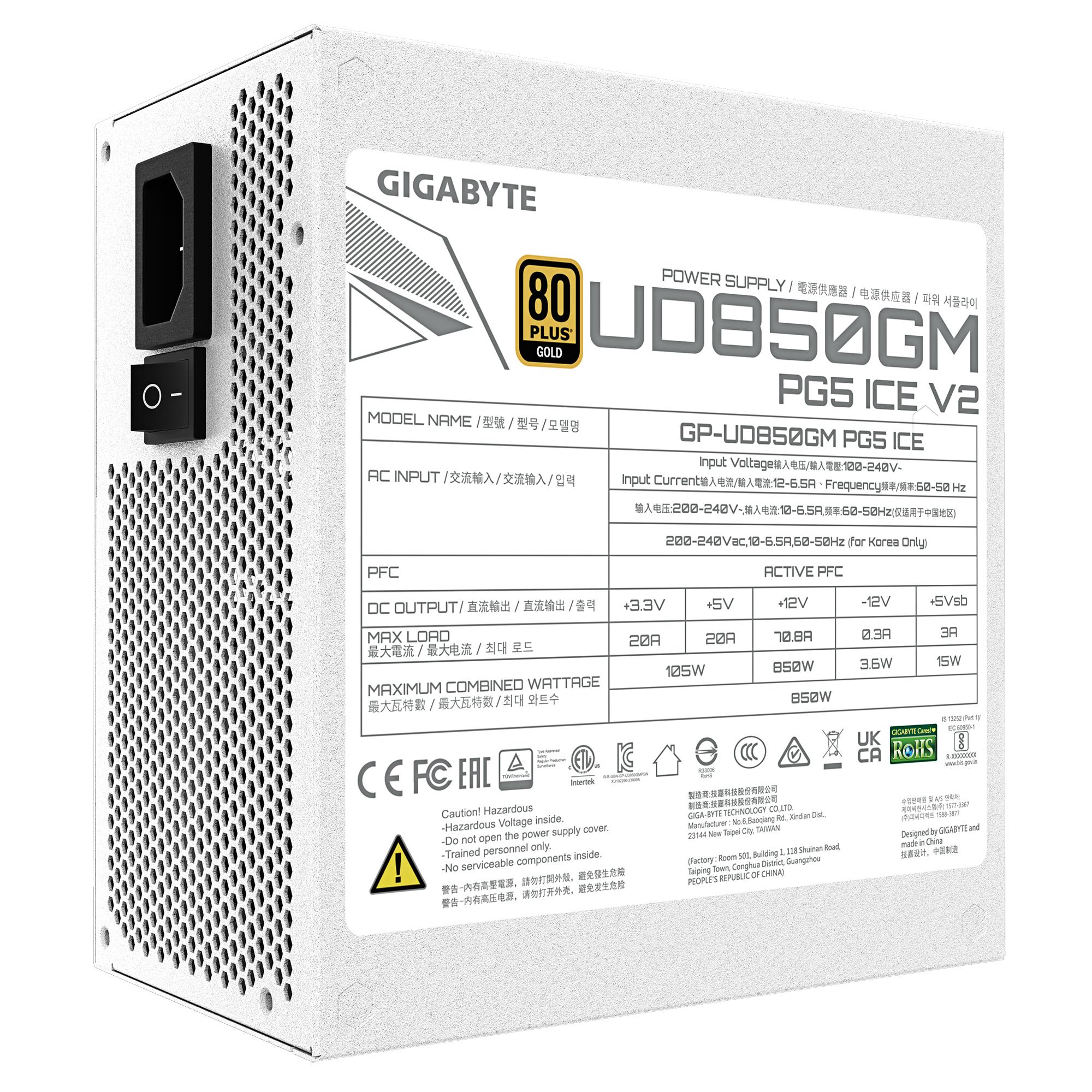

GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
30 laos
30 laos
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Vendor | GIGABYTE |
|---|---|
| Summary | GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+3.3V) | 105 W |
| Combined power (+5V) | 105 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 90 % |
| Hold time | 16 ms |
| Input current | 12 – 6.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 850 W |
| Cabling type | Fully-Modular |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of EPS connectors | 2 |
| Number of SATA power connectors | 8 |
| PCI Express connector | Yes |
| PCI Express power cable length | 600 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |

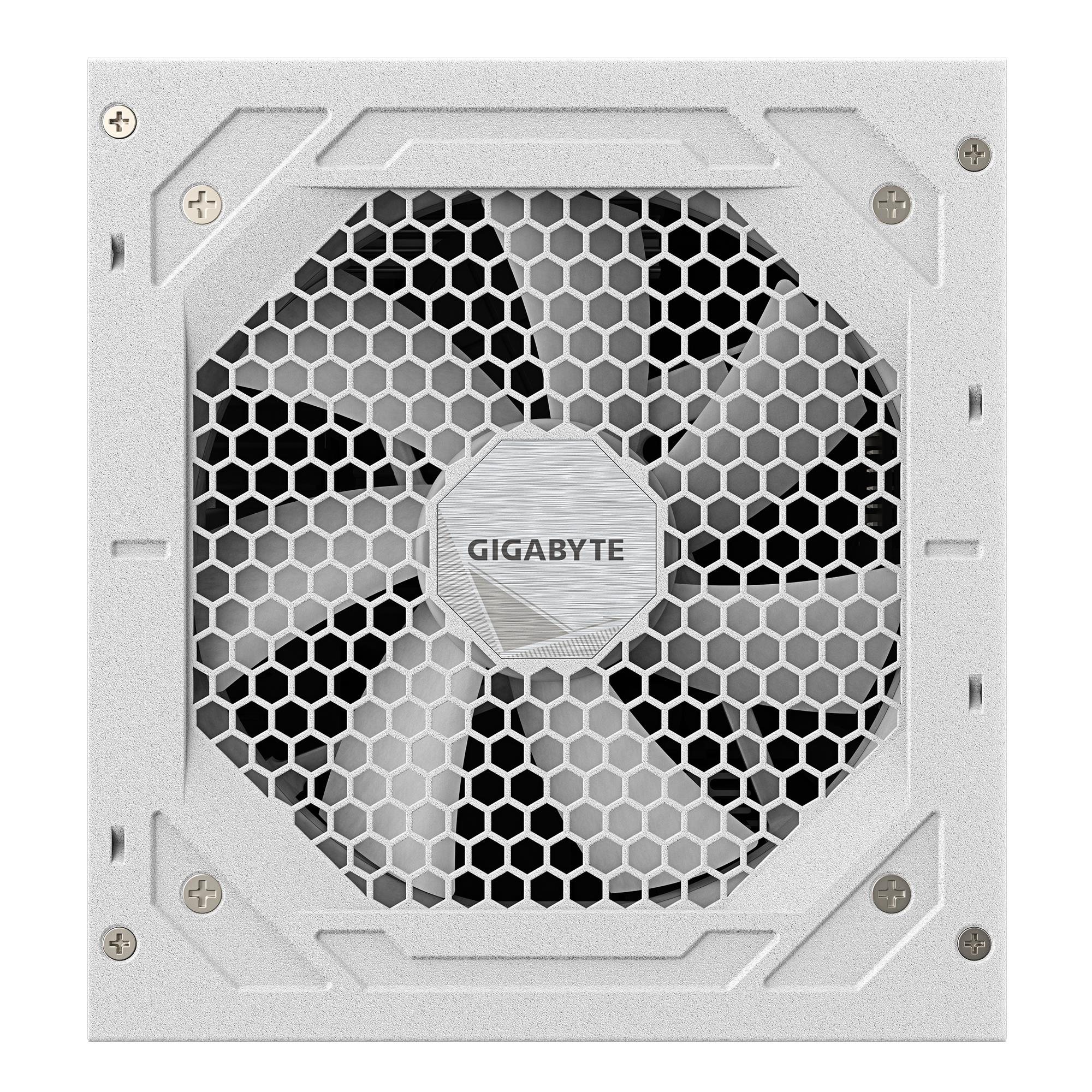

| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | White |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2400 g |
| Width | 150 mm |
| Package depth | 269 mm |
| Package height | 211 mm |
| Package type | Box |
| Package weight | 2560 g |
| Package width | 618 mm |
| Warranty period | 10 year(s) |
| Model name | UD850GM PG5 ICE |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.007865 cubm |
| Unit Calculated Weight | 2.62 kg |
| Manufacturer Code | GP-UD850GM PG5 ICE |
| ELKO Code | 1447819 |
| Warranty | 36 |
