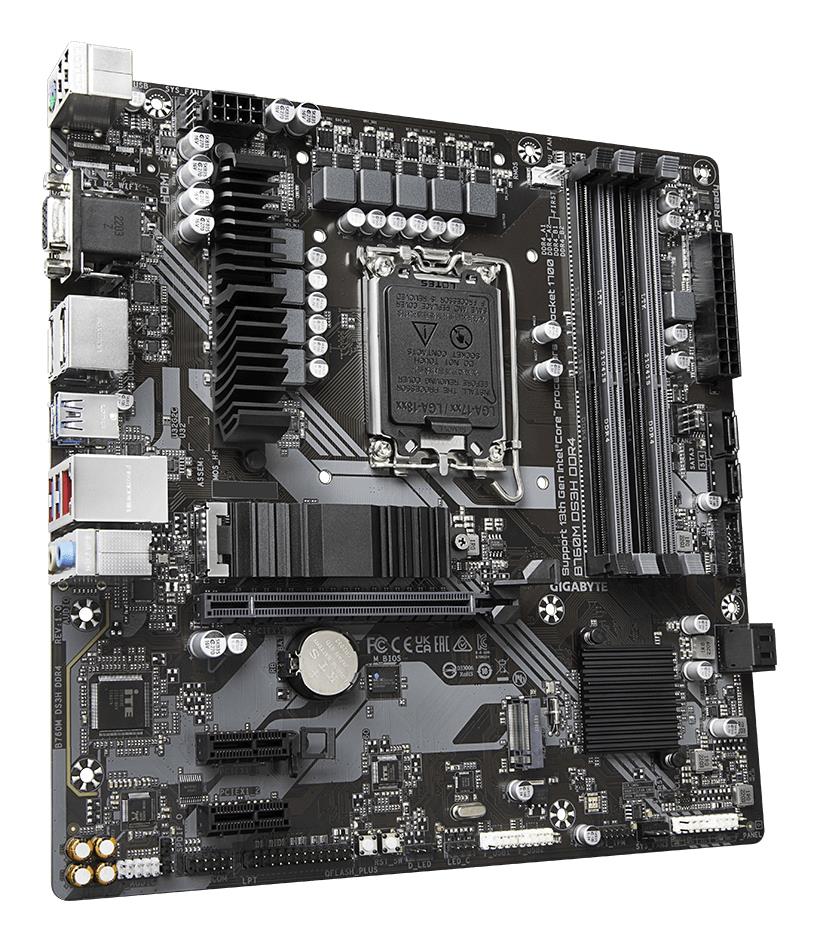

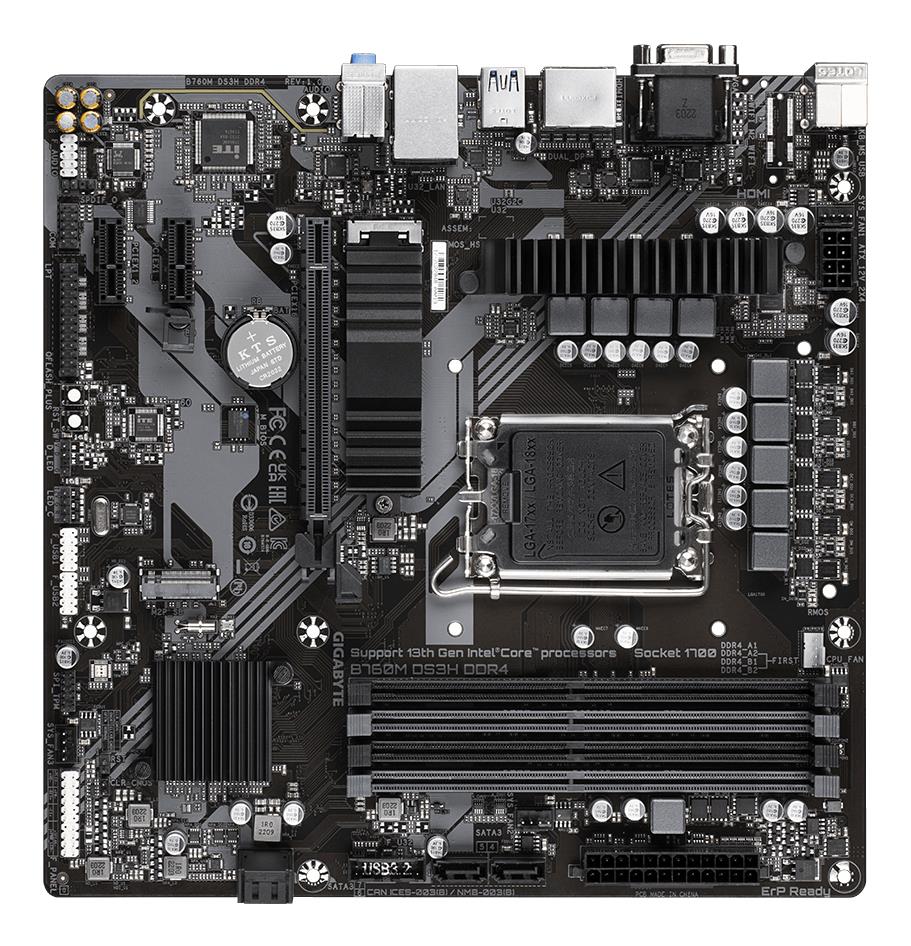

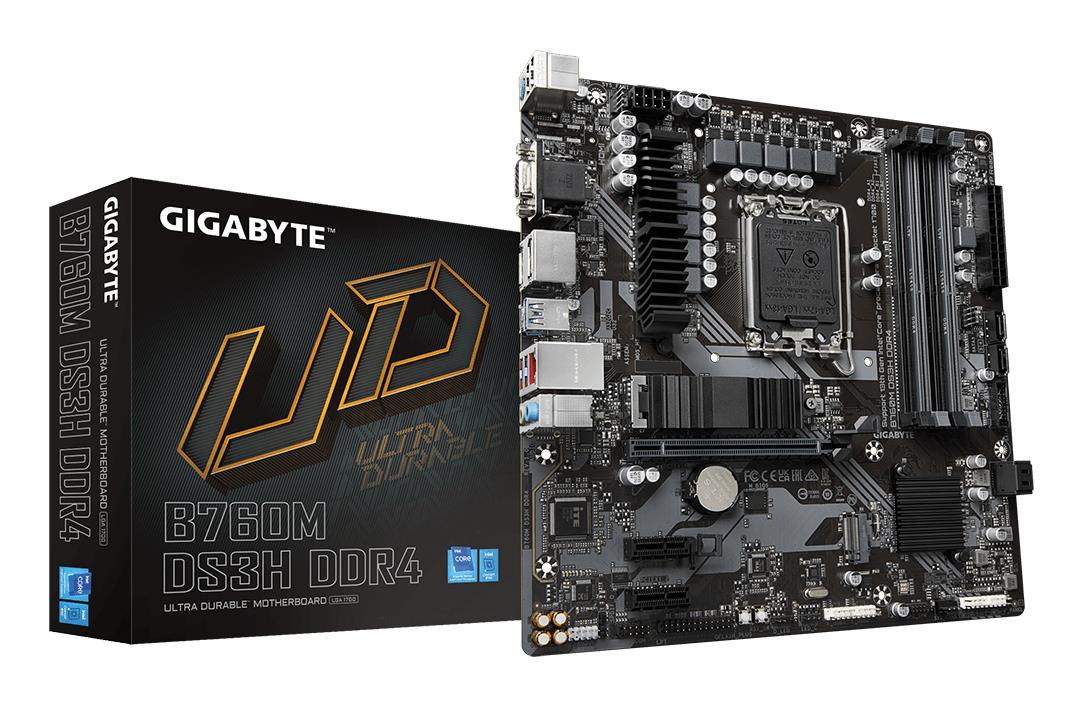

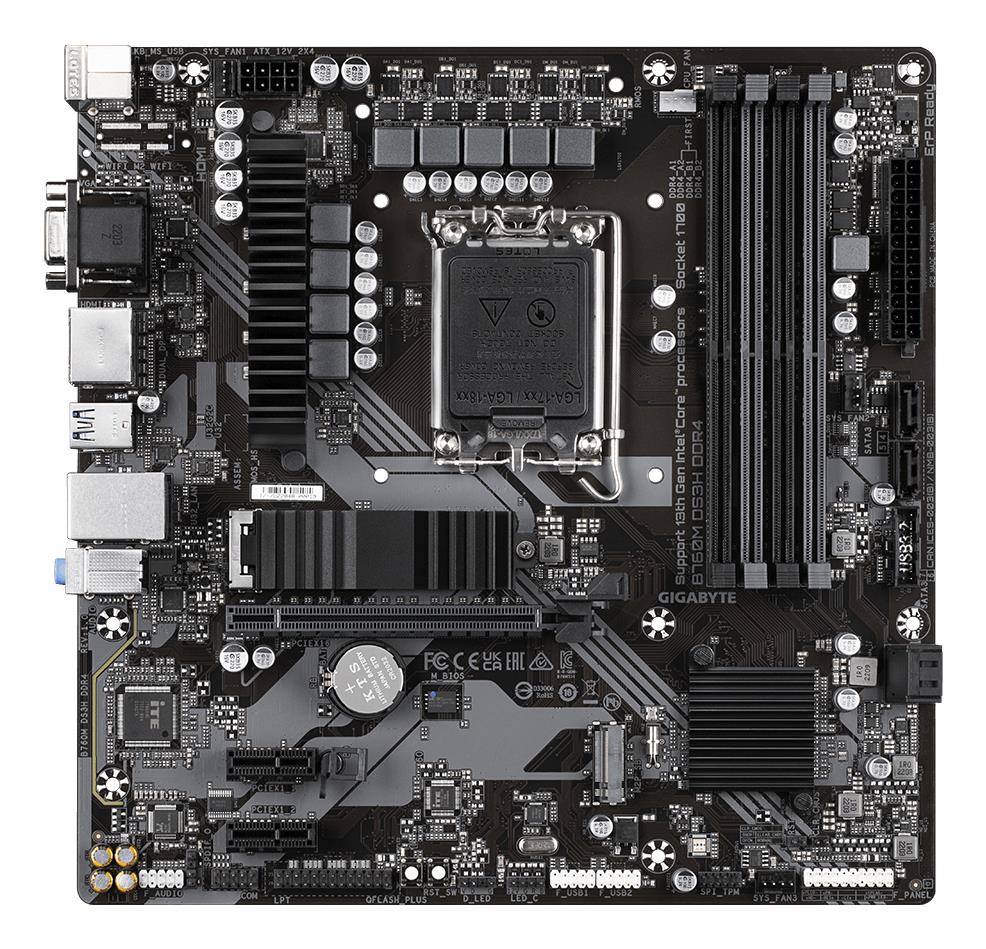

GIGABYTE B760M DS3H DDR4 Motherboard – Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet
Laost otsas
Laost otsas
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Kaal | 0,75 kg |
|---|---|
| Vendor | GIGABYTE |
| Summary | GIGABYTE B760M DS3H DDR4 Motherboard – Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Maximum internal memory supported by processor | 128 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| Supported memory module capacities | 12GB/16GB/1GB/2GB/32GB/4GB/8GB |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Number of displays supported | 4 |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of SATA III connectors | 4 |
| Parallel connector | Yes |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

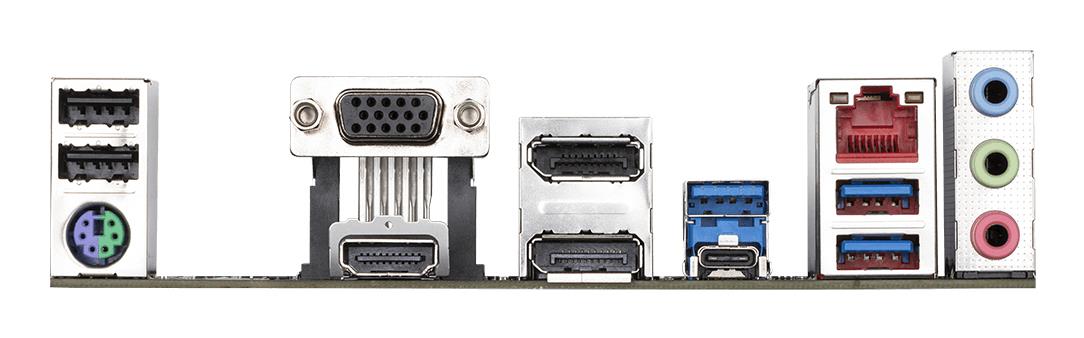

| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B760 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source type | ATX |
| Product colour | Brown |
| Windows operating systems supported | Windows 10/Windows 11 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 990 g |
| Package width | 265 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
| Batteries included | Yes |
| Bundled software | Norton Internet Security |
| Warranty period | 3 year(s) |
| Model | B760M DS3H DDR4 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00401 cubm |
| Product Net Weight | 0.75 kg |
| Unit Calculated Weight | 0.92 kg |
| Manufacturer Code | B760MDS3HDDR4 |
| ELKO Code | 1388806 |
| Warranty | 36 |
