GIGABYTE B760 GAMING X WIFI6E GEN5 Motherboard – Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
4 laos
4 laos
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Vendor | GIGABYTE |
|---|---|
| M.2 | 3 |
| PCI-Express 3.0 1x | 2 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 6 |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| SATA | Yes |
| Model | B760 GAMING X WIFI6E GEN5 |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Yes |
| RAID | SATA 0, 1, 5, 10 |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.01019 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 1.84 kg |
| Summary | GIGABYTE B760 GAMING X WIFI6E GEN5 Motherboard – Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |

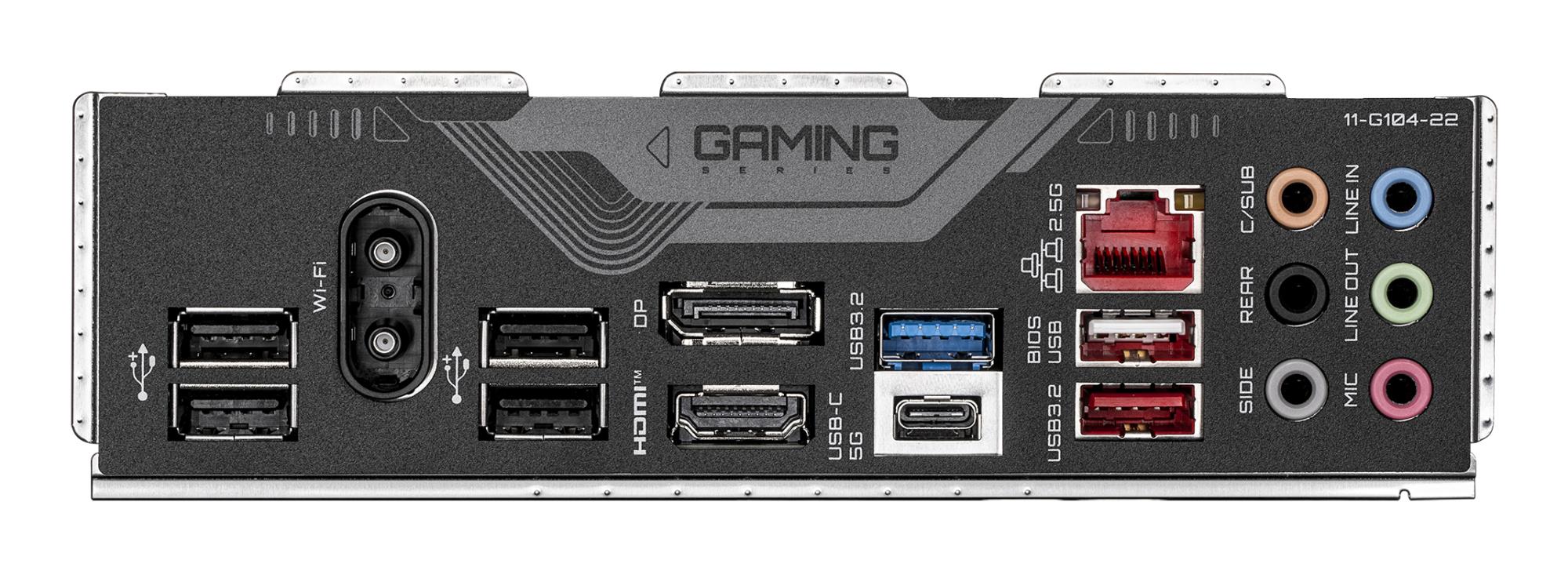

| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8125 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source type | ATX |
| Product colour | Dark brown |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | China |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1800 g |
| Package width | 335 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 305 mm |
| Antenna included | Yes |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
| Screws included | Yes |
| Warranty period | 3 year(s) |
| Weight | 1610 g |
| Manufacturer Code | B760 G X WF6E GEN5 |
| ELKO Code | 1447969 |
| Warranty | 36 |
