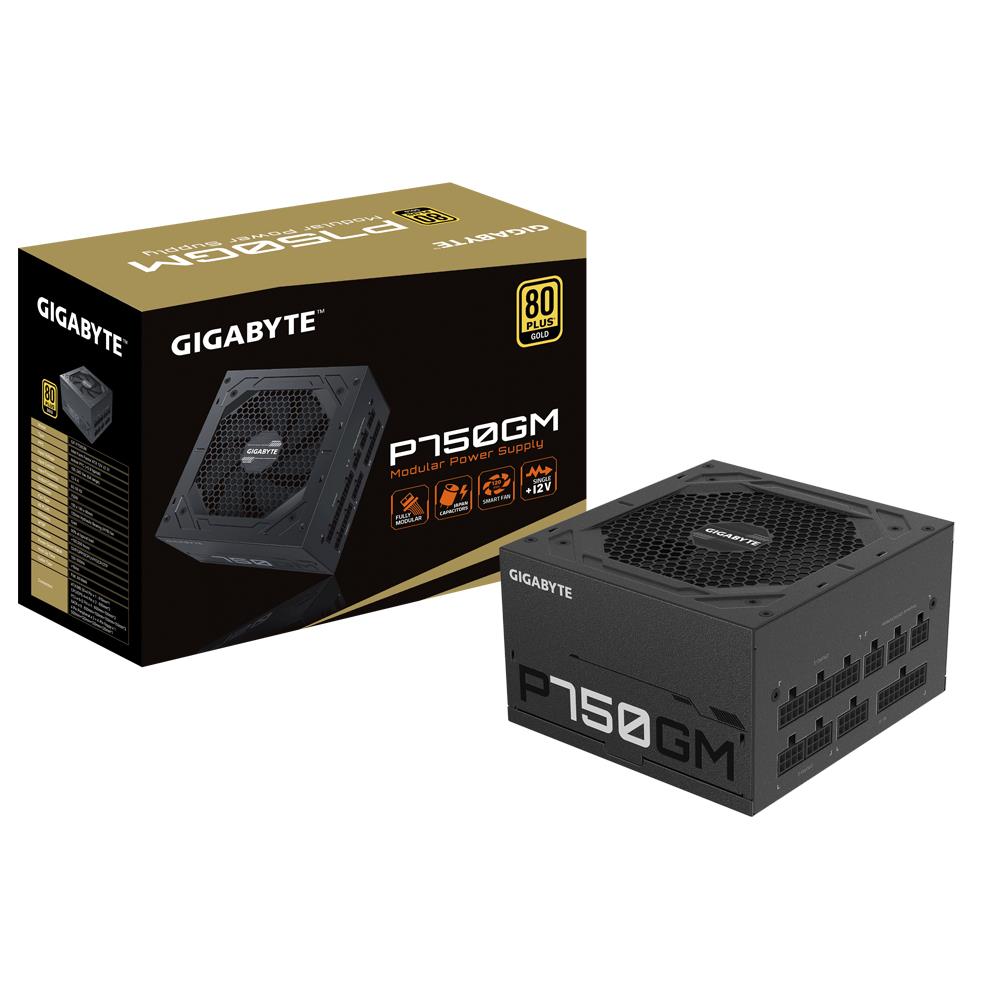

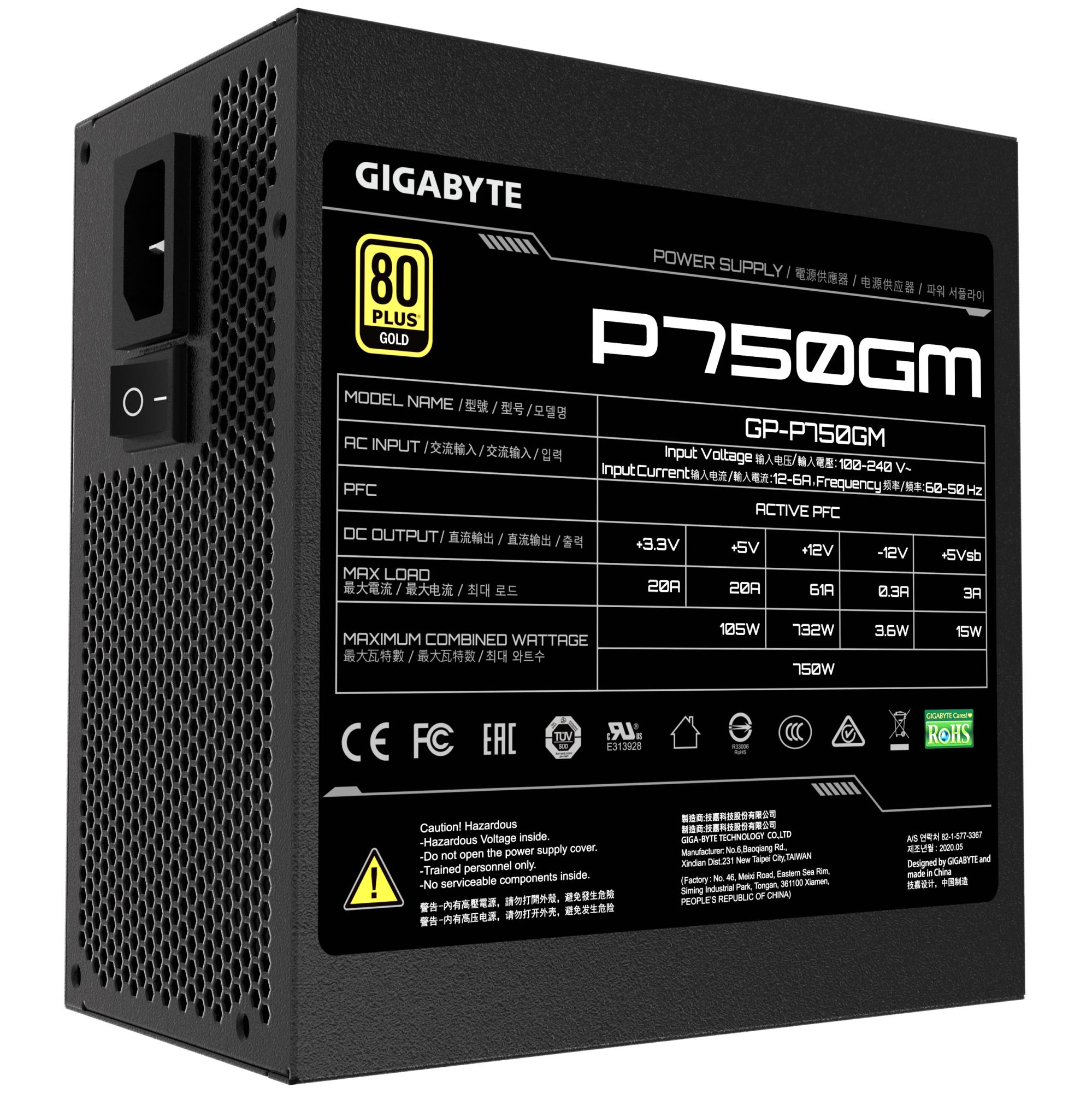

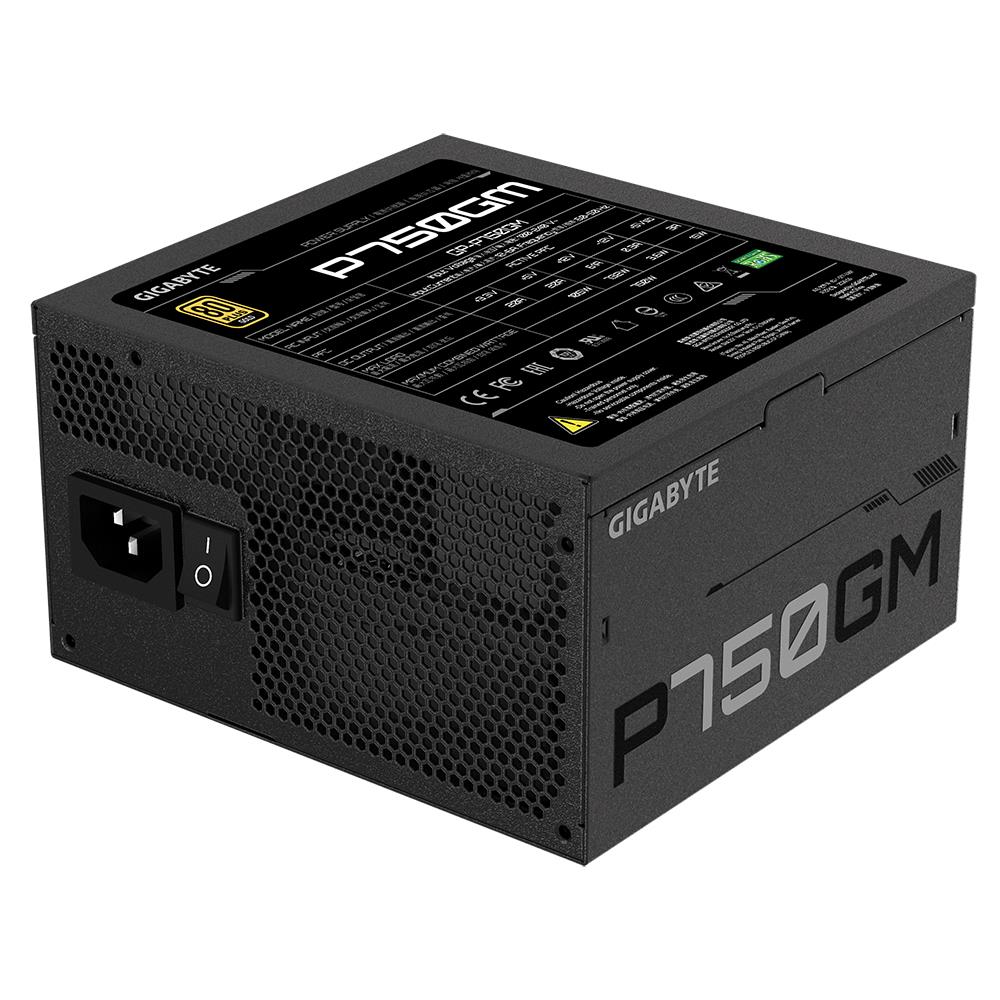

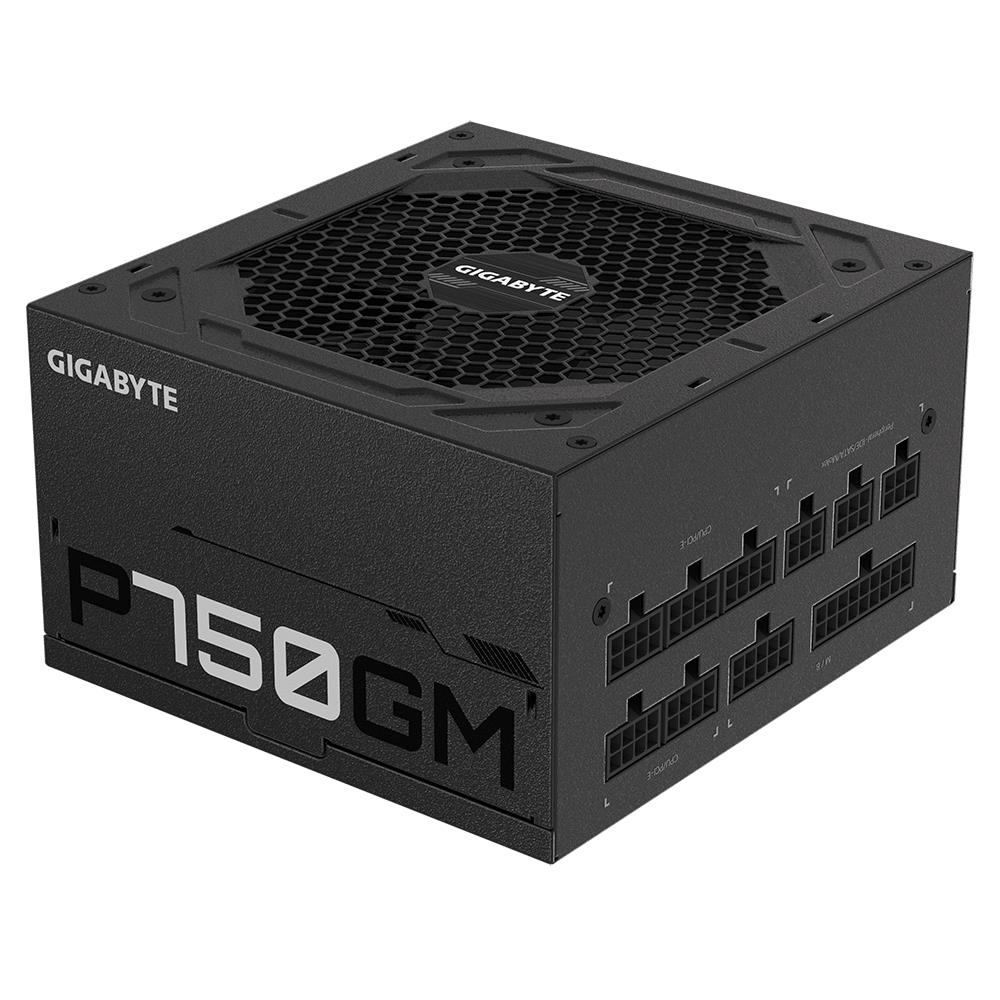

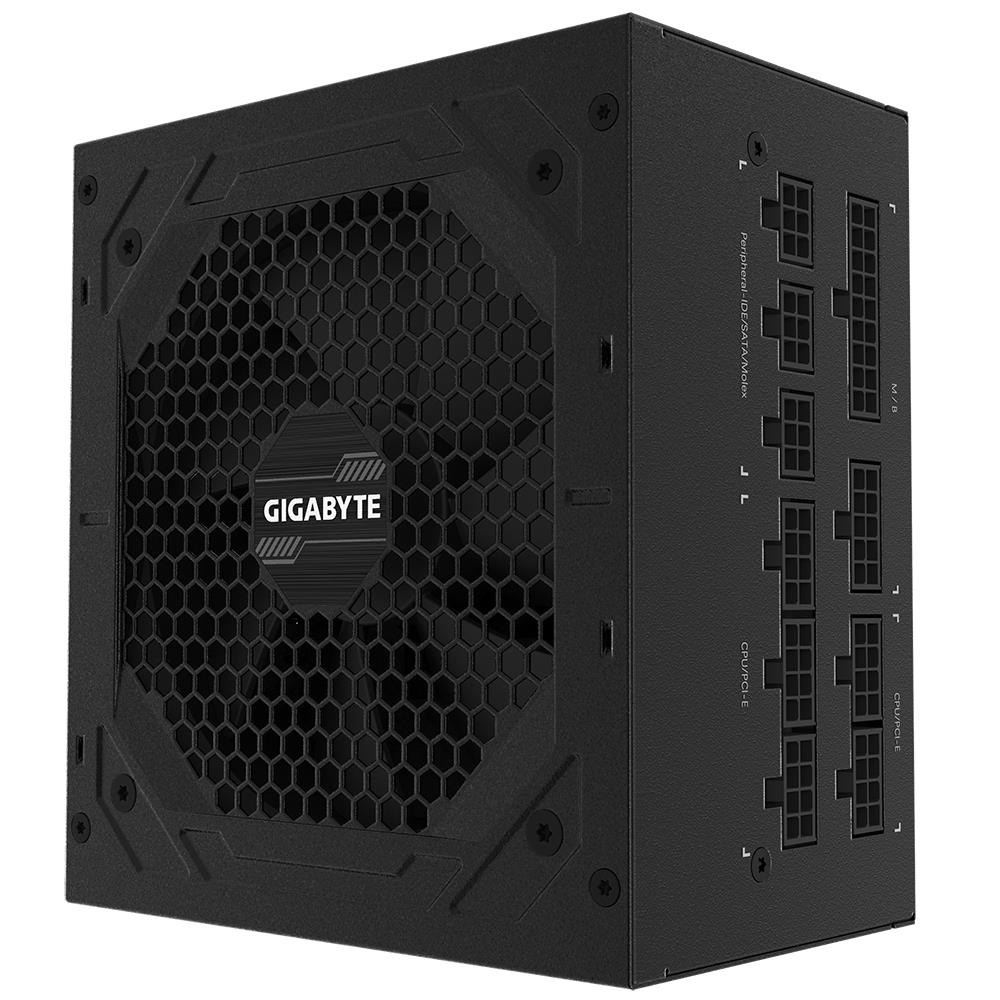

GIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Laost otsas
Laost otsas

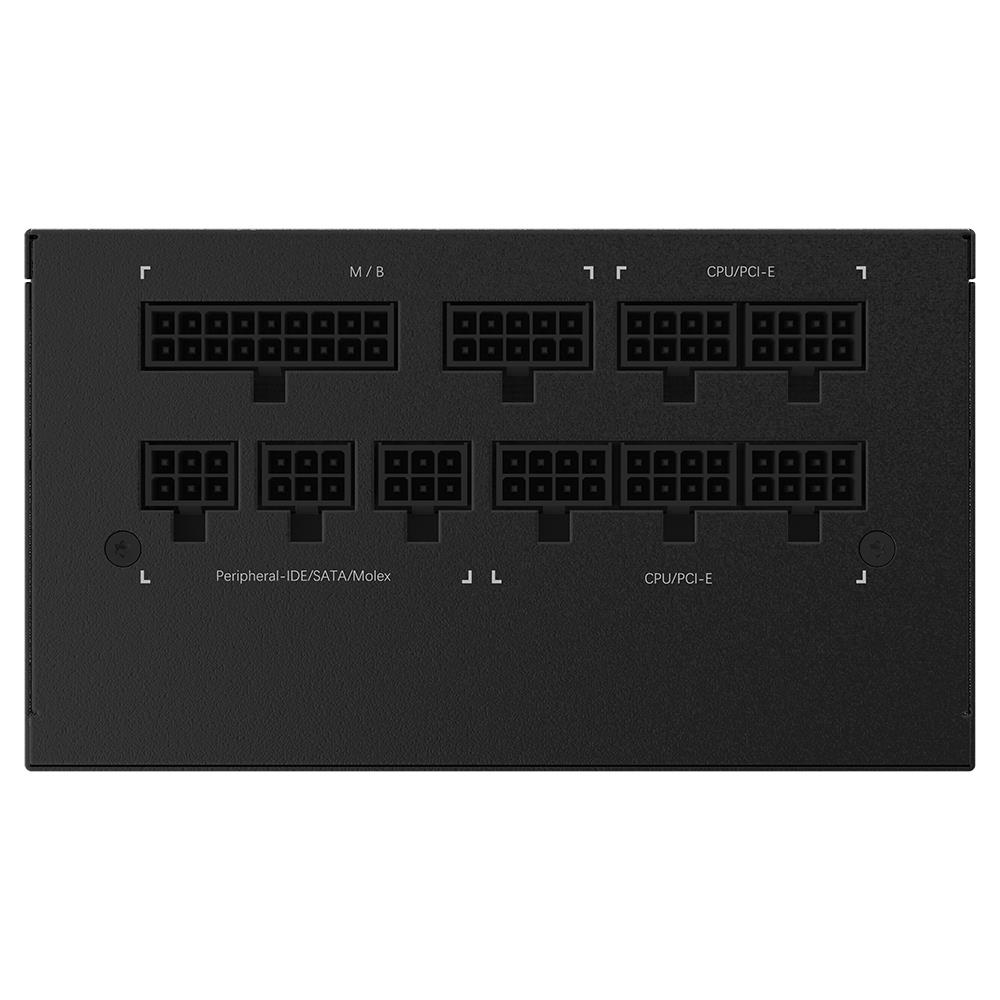

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

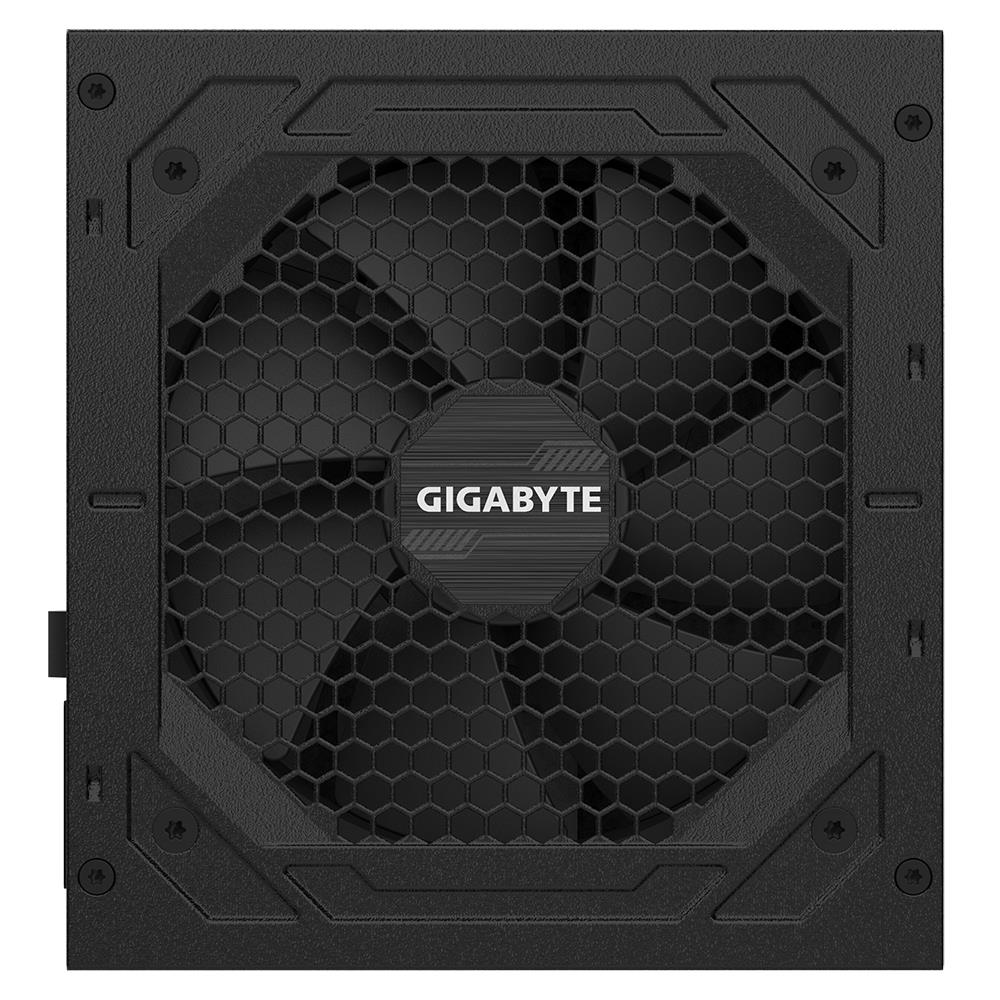

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
| Mõõtmed | 14 × 15 × 8,6 cm |
|---|---|
| Vendor | GIGABYTE |
| Summary | GIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Efficiency | 90 % |
| Hold time | 16 ms |
| Input current | 12-6 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 750 W |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power cable length | 600 mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive cable length | 120 mm |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| PCI Express connector | Yes |
| PCI Express power cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 120/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 150/600 mm |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cables included | CPU,PCIe,Peripheral (Molex),SATA |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Harmonized System (HS) code | 84733020 |
| Model name | GP-P750GM |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.008137 cubm |
| Unit Calculated Weight | 2.63 kg |
| CnCode | 85044095 |
| Manufacturer Code | GP-P750GM |
| ELKO Code | 1306555 |
| Warranty | 36 |
| Power — AC input frequency | 50 – 60 Hz |
| Power — AC input voltage | 100 – 240 V |
| Power — Efficiency | 90 % |
| Power — Hold time | 16 ms |
| Power — Input current | 12-6 A |
| Power — Power Factor Correction (PFC) type | Active |
| Power — Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Power — Total power | 750 W |
| Ports & interfaces — ATX power connector (20+4 pin) | Yes |
| Ports & interfaces — Cabling type | Fully-Modular |
| Ports & interfaces — CPU power cable length | 600 mm |
| Ports & interfaces — CPU power connector (4+4 pin) | Yes |
| Ports & interfaces — EPS power connector (4+4 pin) | Yes |
| Ports & interfaces — Floppy disk drive cable length | 120 mm |
| Ports & interfaces — Floppy drive power connector | 1 |
| Ports & interfaces — Motherboard power cable length | 610 mm |
| Ports & interfaces — Motherboard power connector | 20+4 pin ATX |
| Ports & interfaces — Number of SATA power connectors | 8 |
| Ports & interfaces — PCI Express connector | Yes |
| Ports & interfaces — PCI Express power cable length | 600 mm |
| Ports & interfaces — PCI Express power connectors (6+2 pin) | 4 |
| Ports & interfaces — Peripheral (Molex) power cable length | 120/500 mm |
| Ports & interfaces — Peripheral (Molex) power connectors (4-pin) | 4 |
| Ports & interfaces — SATA power cable length | 150/600 mm |
| Performance — 80 PLUS certification | 80 PLUS Gold |
| Performance — ATX version | 2.31 |
| Performance — Mean time between failures (MTBF) | 100000 h |
| Performance — Power supply unit (PSU) form factor | ATX |
| Performance — Purpose | PC |
| Design — Cooling type | Active |
| Design — Fan diameter | 120 mm |
| Design — Fan location | Top |
| Design — Number of fans | 1 fan(s) |
| Design — Product colour | Black |
| Packaging content — Cables included | CPU,PCIe,Peripheral (Molex),SATA |
| Weight & dimensions — Depth | 140 mm |
| Weight & dimensions — Height | 86 mm |
| Weight & dimensions — Width | 150 mm |
| Logistics data — Harmonized System (HS) code | 84733020 |
