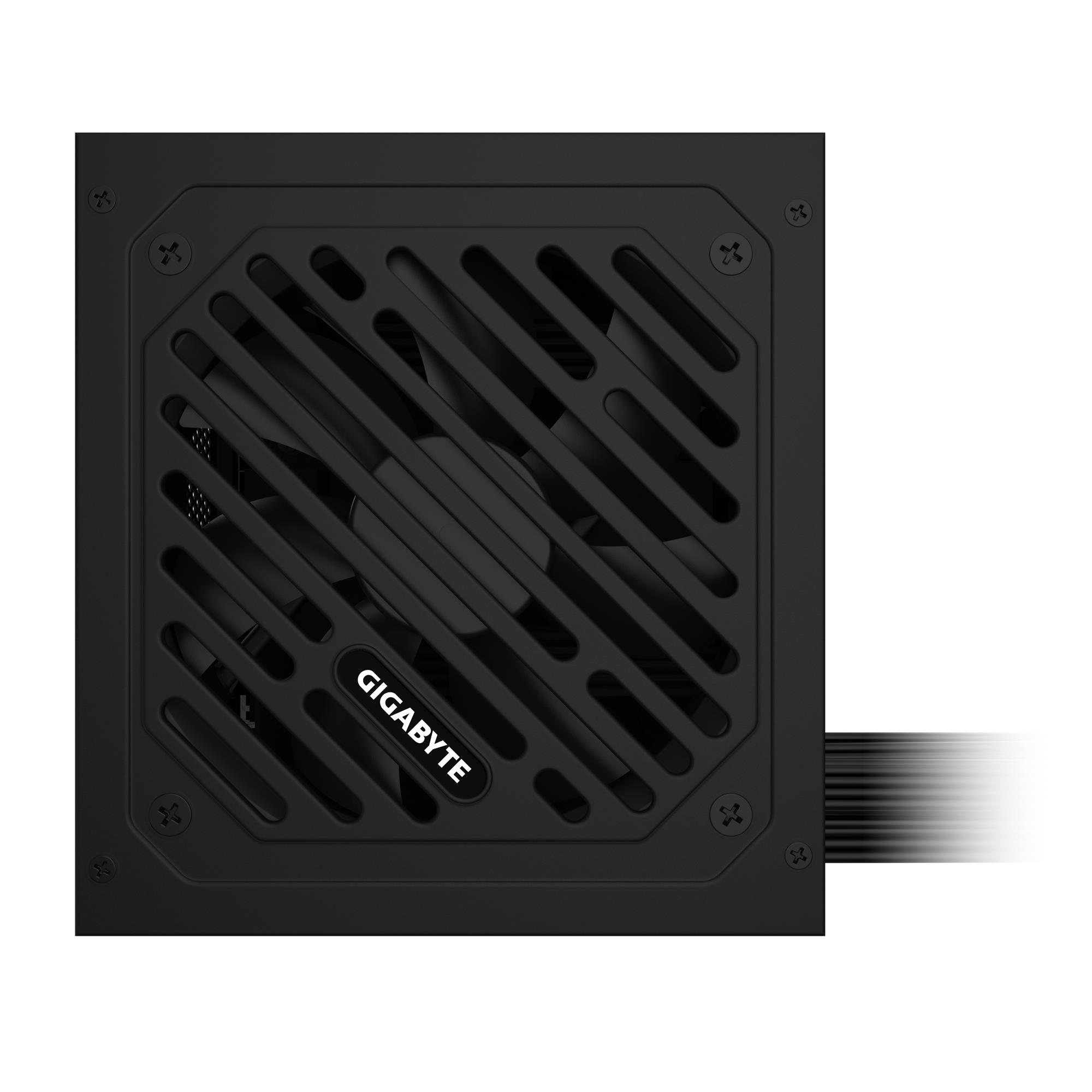

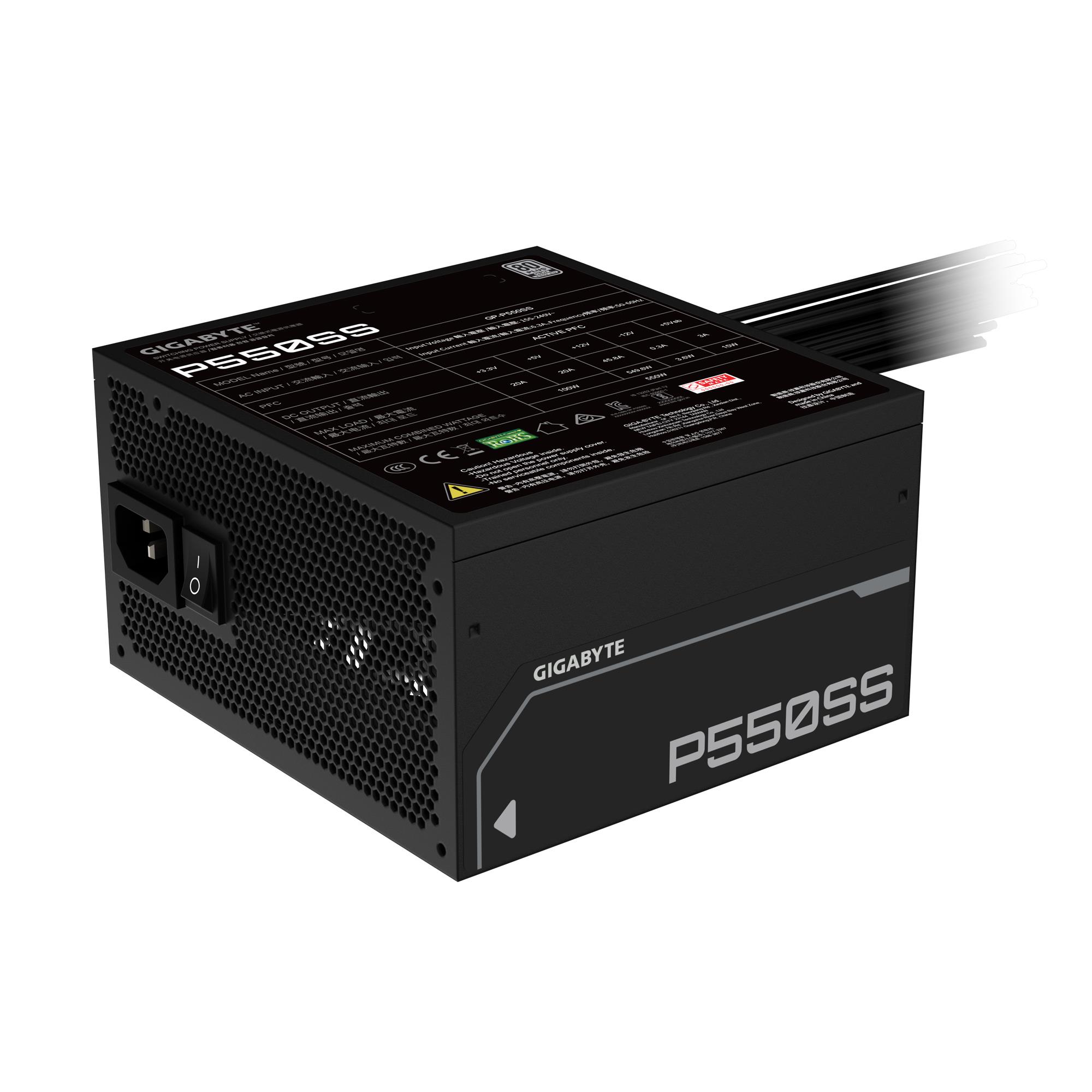

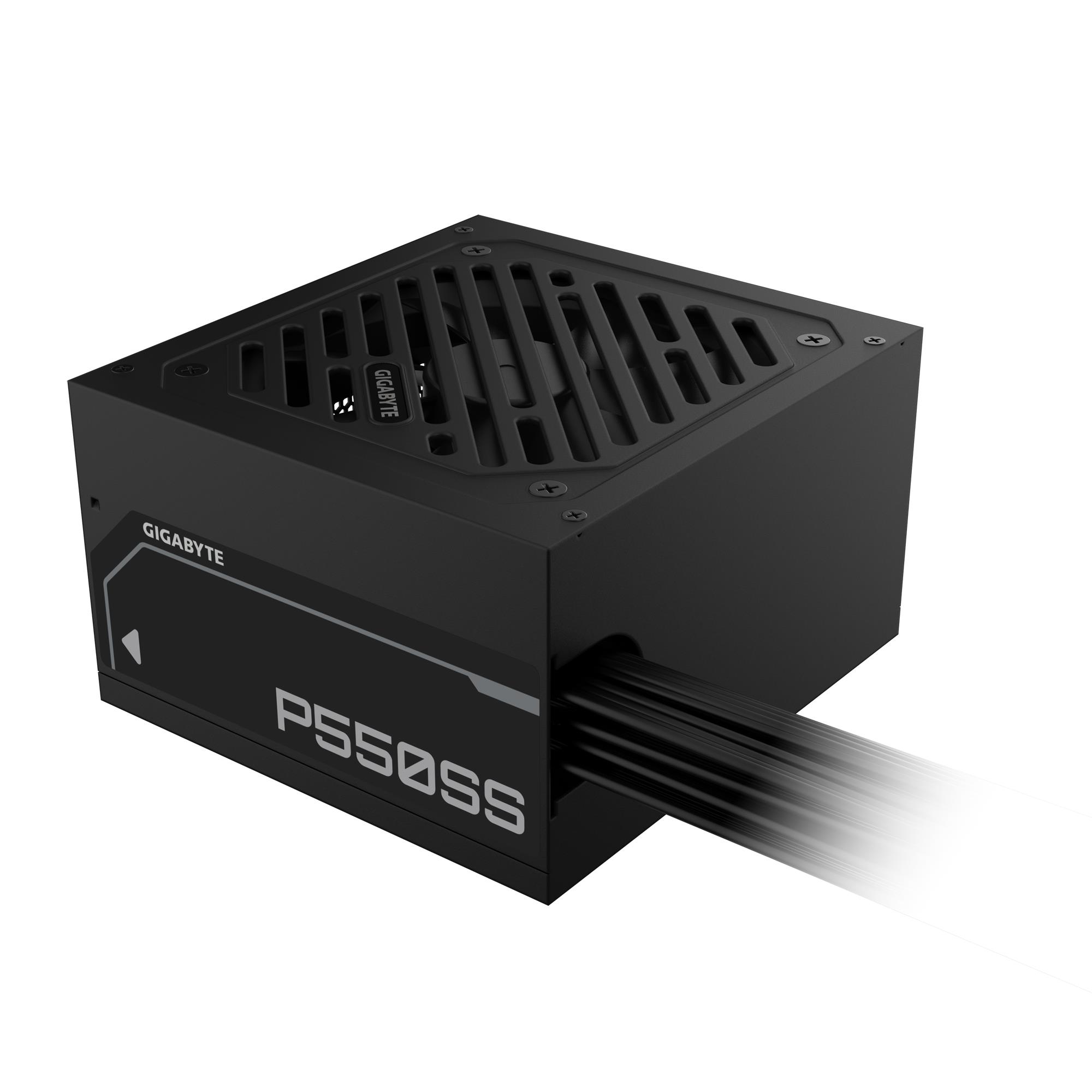

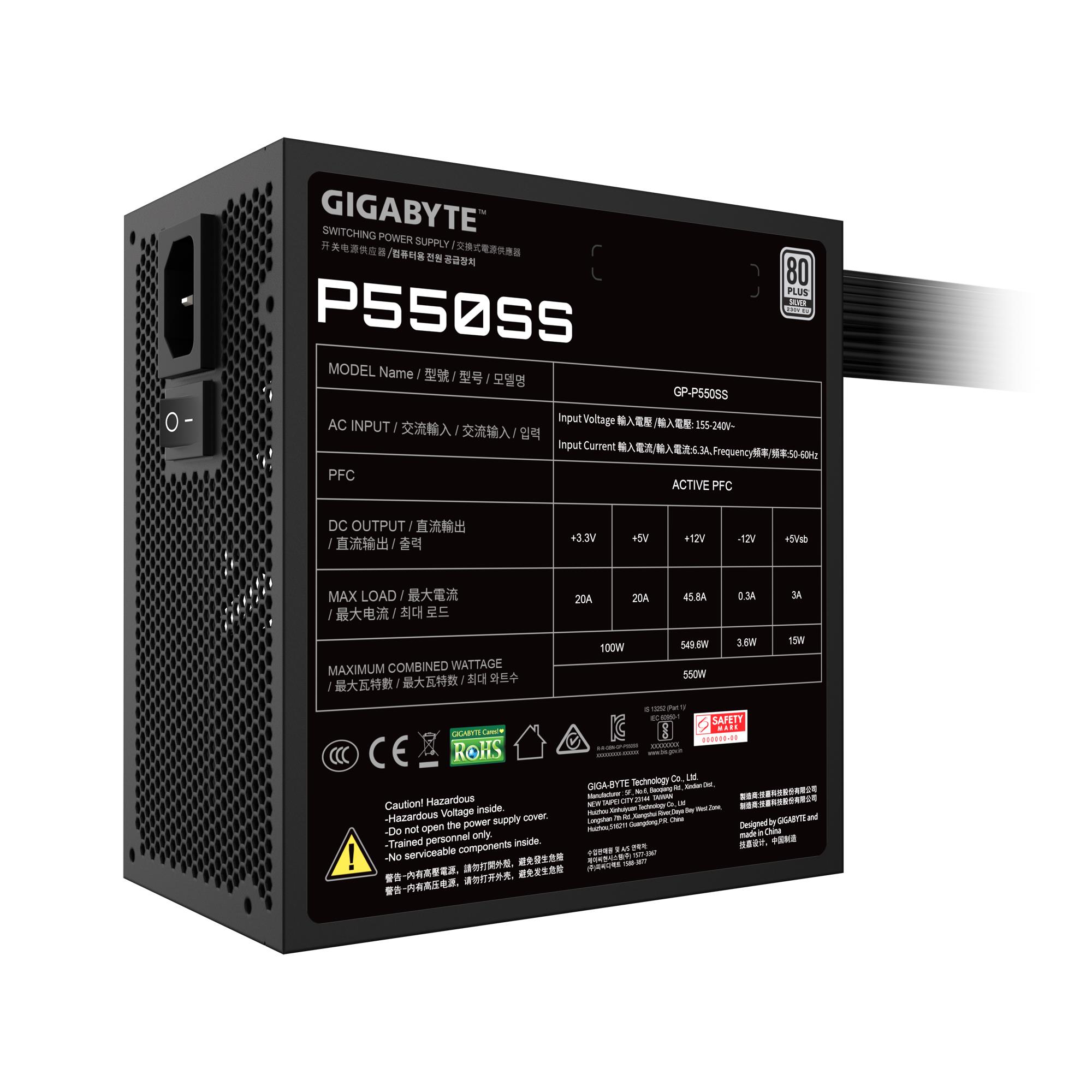

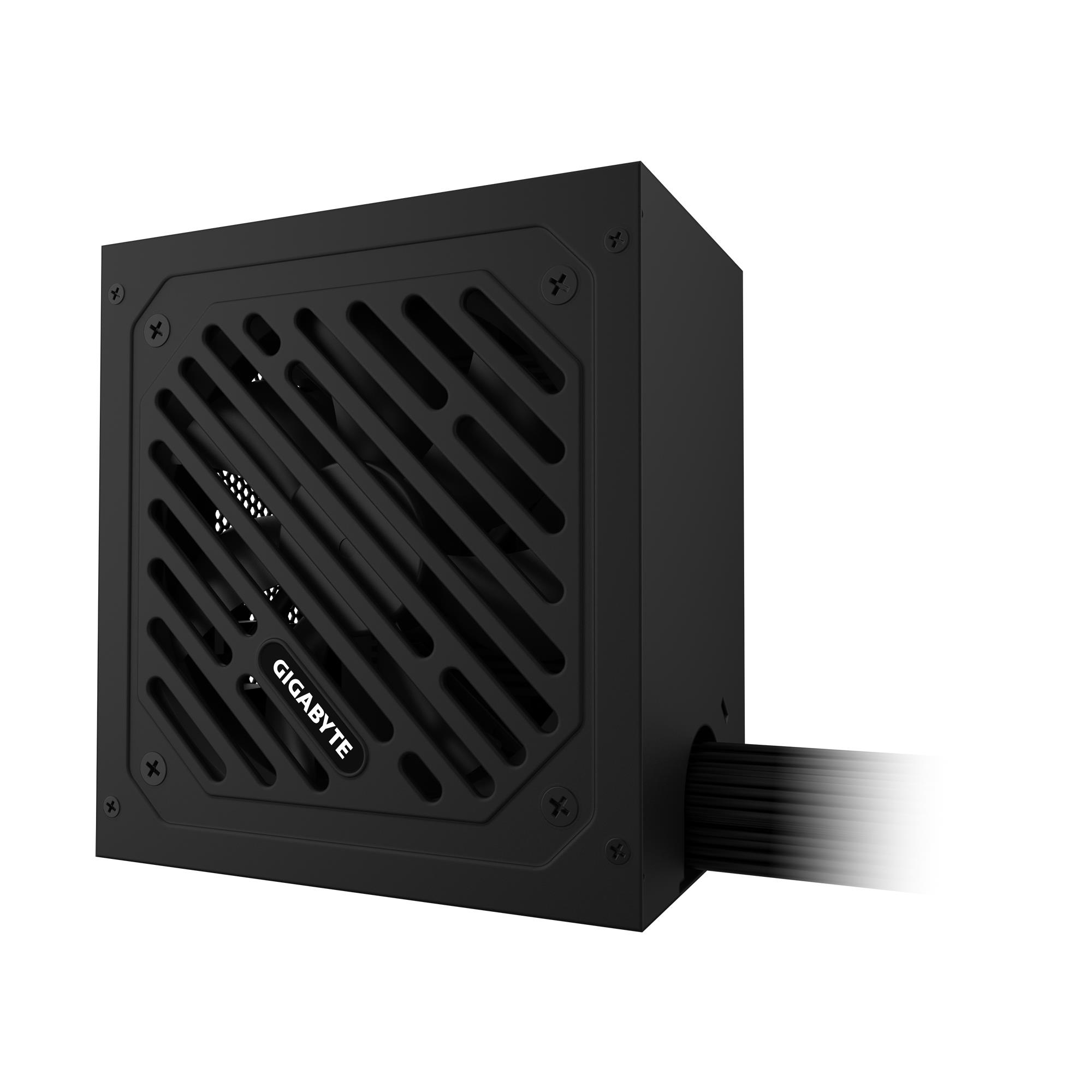

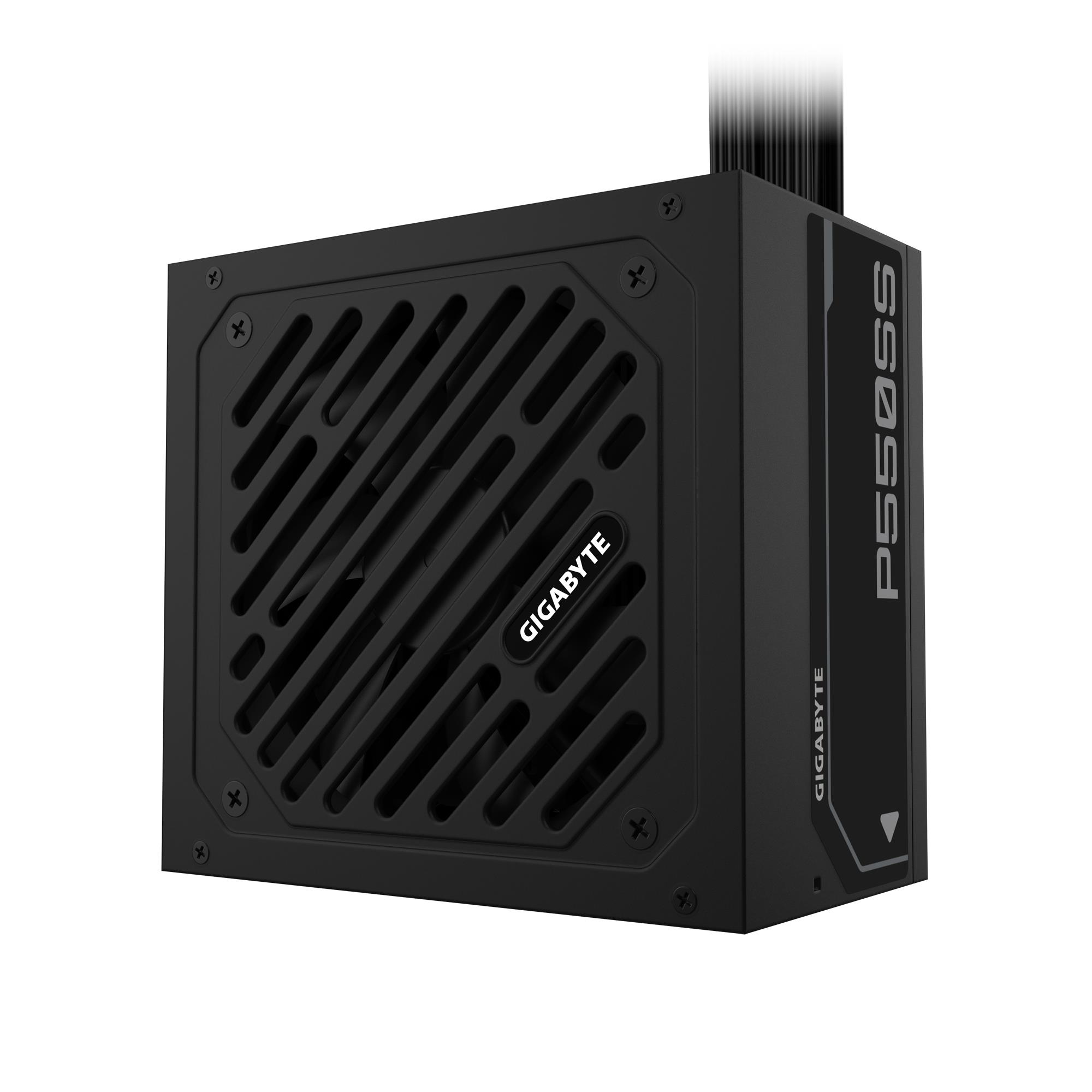

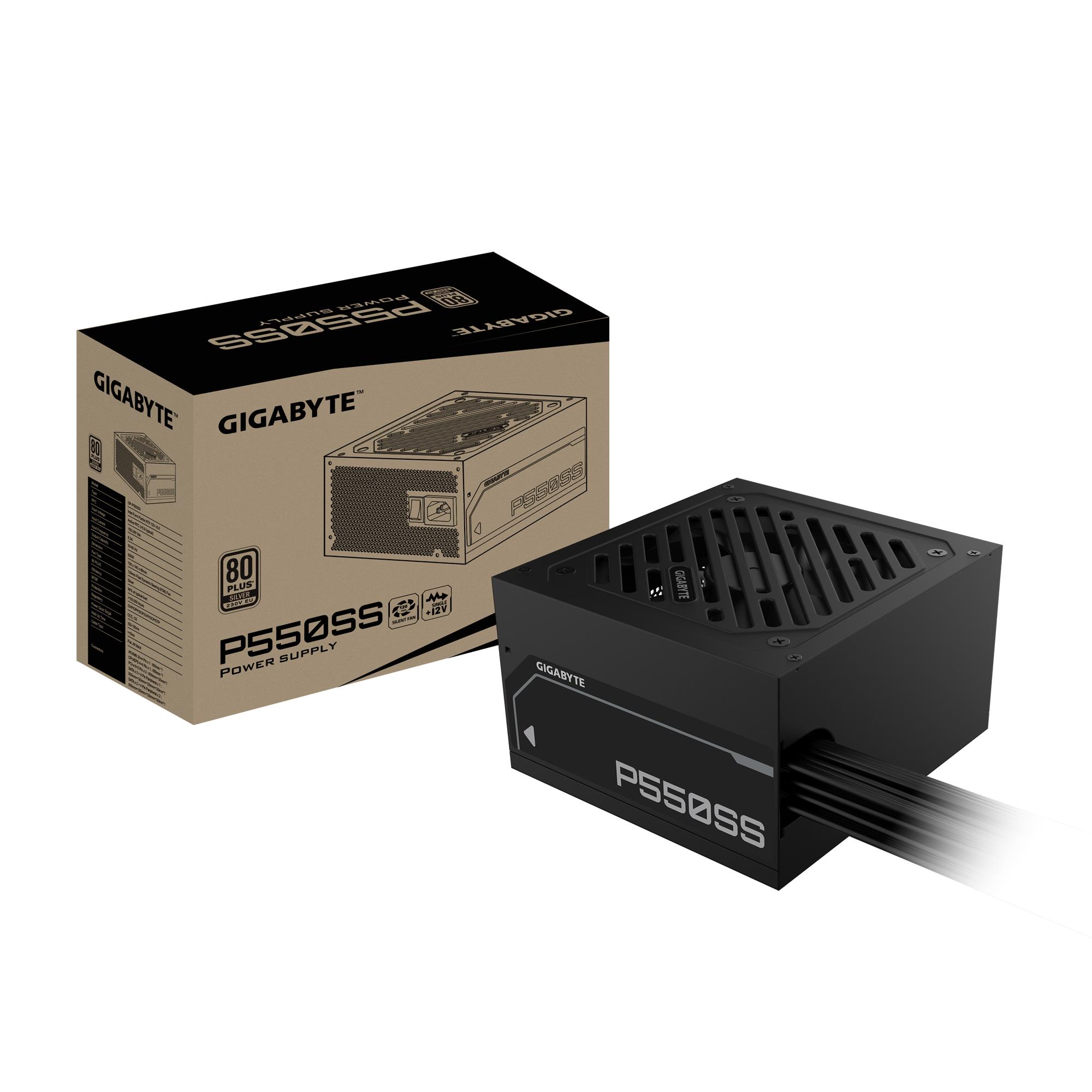

GIGABYTE P550SS Power Supply – PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Laost otsas
Laost otsas
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Vendor | GIGABYTE |
|---|---|
| Summary | GIGABYTE P550SS Power Supply – PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Silver. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm |
| AC input frequency | 50/60 Hz |
| AC input voltage | 155-240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 90 % |
| Hold time | 16 ms |
| Input current | 6.3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 – 150 ms |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 550 W |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 3.1 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | White |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2460 g |
| Width | 140 mm |
| Package depth | 206 mm |
| Package height | 117 mm |
| Package type | Box |
| Package weight | 2632 g |
| Package width | 254 mm |
| Warranty period | 3 year(s) |
| Model name | GP-P650SS |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.007577 cubm |
| Unit Calculated Weight | 2.24 kg |
| CnCode | 85044095 |
| Manufacturer Code | GP-P650SS |
| ELKO Code | 1421061 |
| Warranty | 36 |
