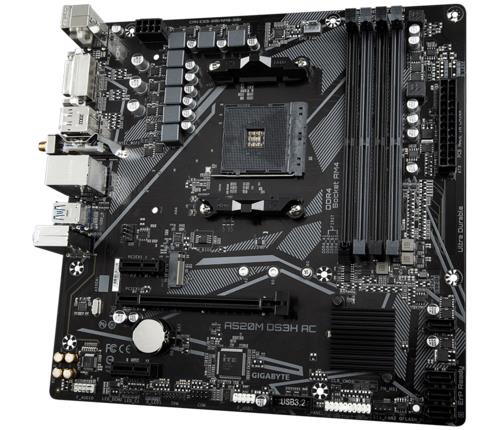

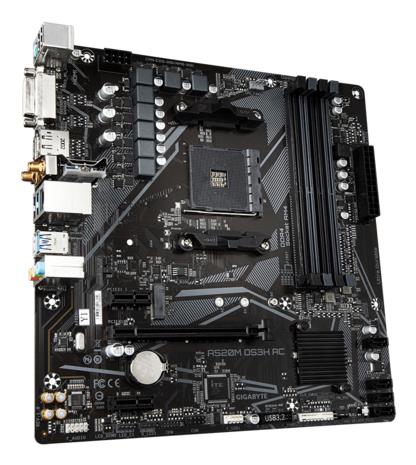

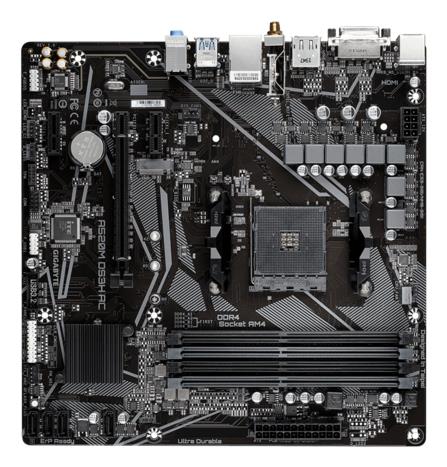

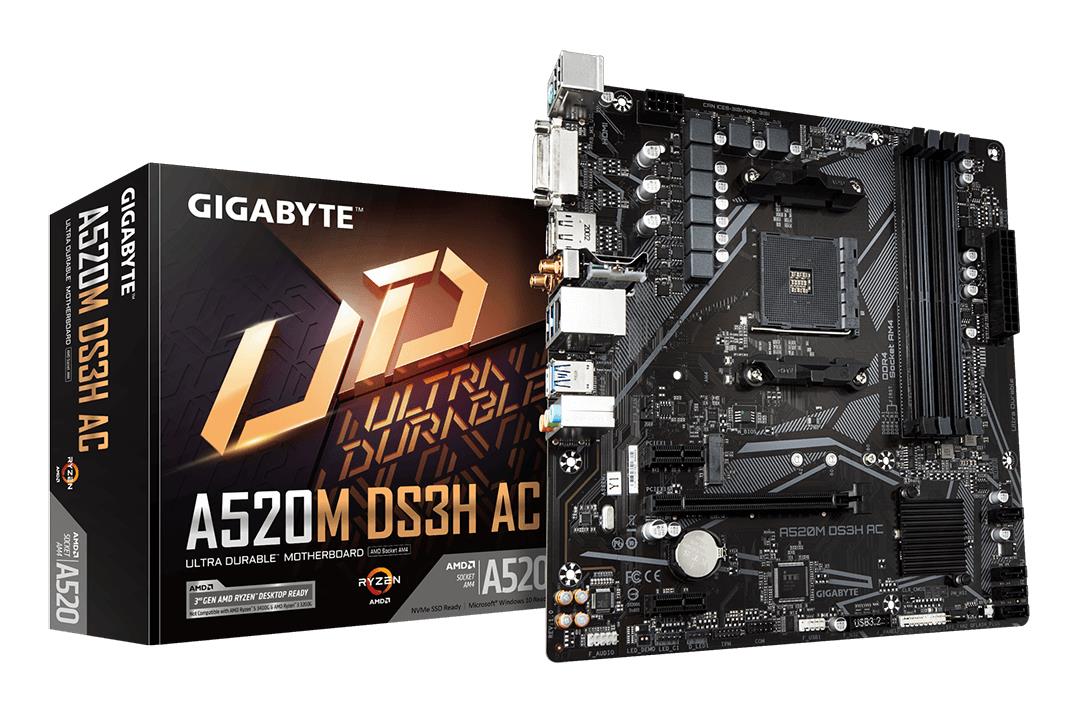

GIGABYTE A520M DS3H AC Motherboard – AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Laost otsas
Laost otsas
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Vendor | GIGABYTE |
|---|---|
| Summary | GIGABYTE A520M DS3H AC Motherboard – AMD Ryzen 5000 Series CPUs, 5+3 Phases VRM, up to 4733MHz DDR5 (OC), 1xPCIe 3.0 M.2, GbE LAN, WIFI 5, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4733 MHz |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3300/3333/3400/3466/3600/3733/3800/3866/4000/4400/4733 MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Discrete graphics support | Yes |
| HDCP | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Number of displays supported | 3 |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |

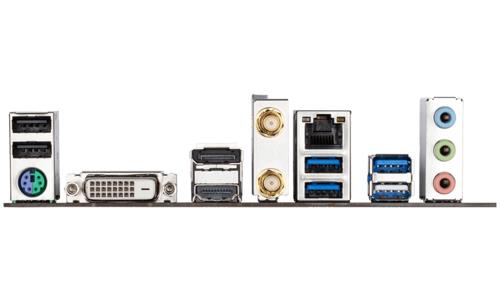

| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 3168 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| 1st M.2 highest PCI Express generation | 3.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1210 g |
| Package width | 270 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
| Antenna included | Yes |
| Batteries included | Yes |
| Screws included | Yes |
| Warranty period | 3 year(s) |
| Weight | 720 g |
| Model | A520M DS3H AC 1.4 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.0060088 cubm |
| Unit Calculated Weight | 1.03 kg |
| CnCode | 84733020 |
| Manufacturer Code | A520M DS3H AC 1.4 |
| ELKO Code | 1448100 |
| Warranty | 36 |
