ARCTIC P8 Max – High-Performance 80 mm PWM Fan. Type: Fan, Fan diameter: 8 cm, Noise level: 0.6 sone, Airflow: 67.96 m³/h. Product colour: Black
50 laos
50 laos

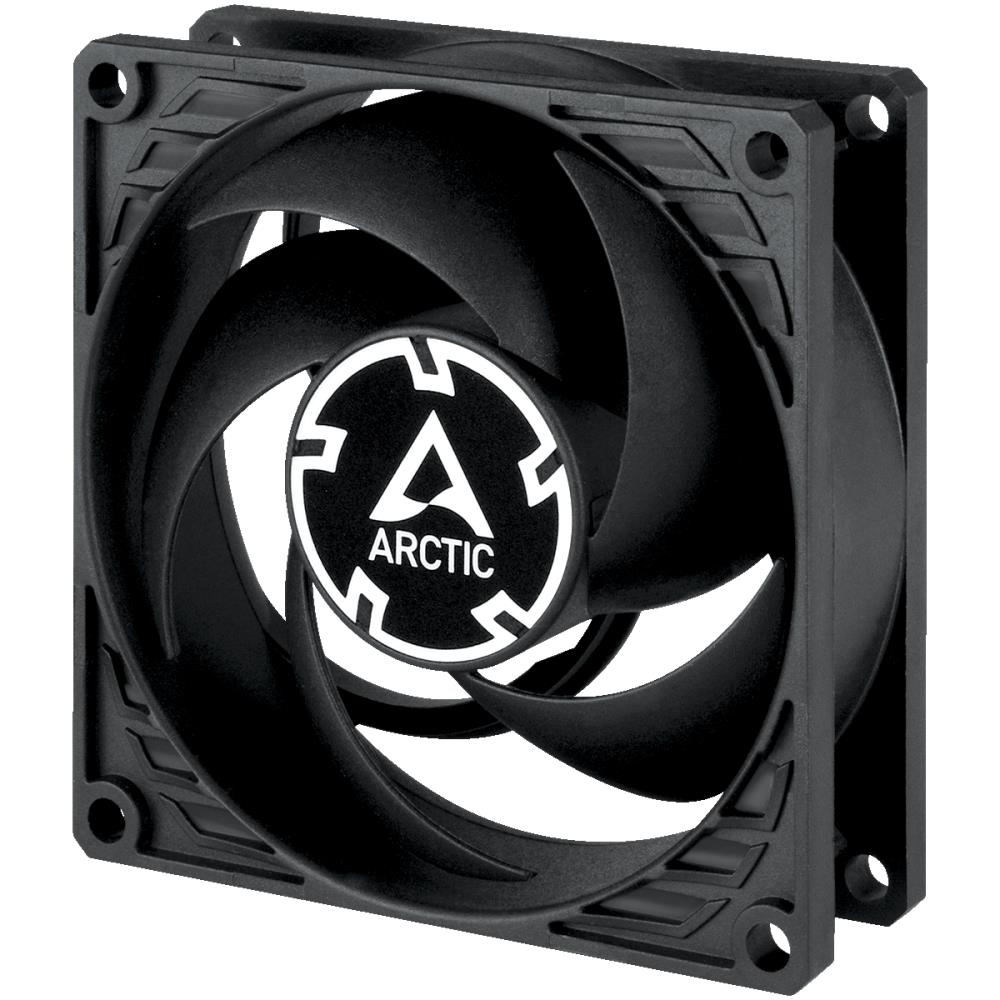

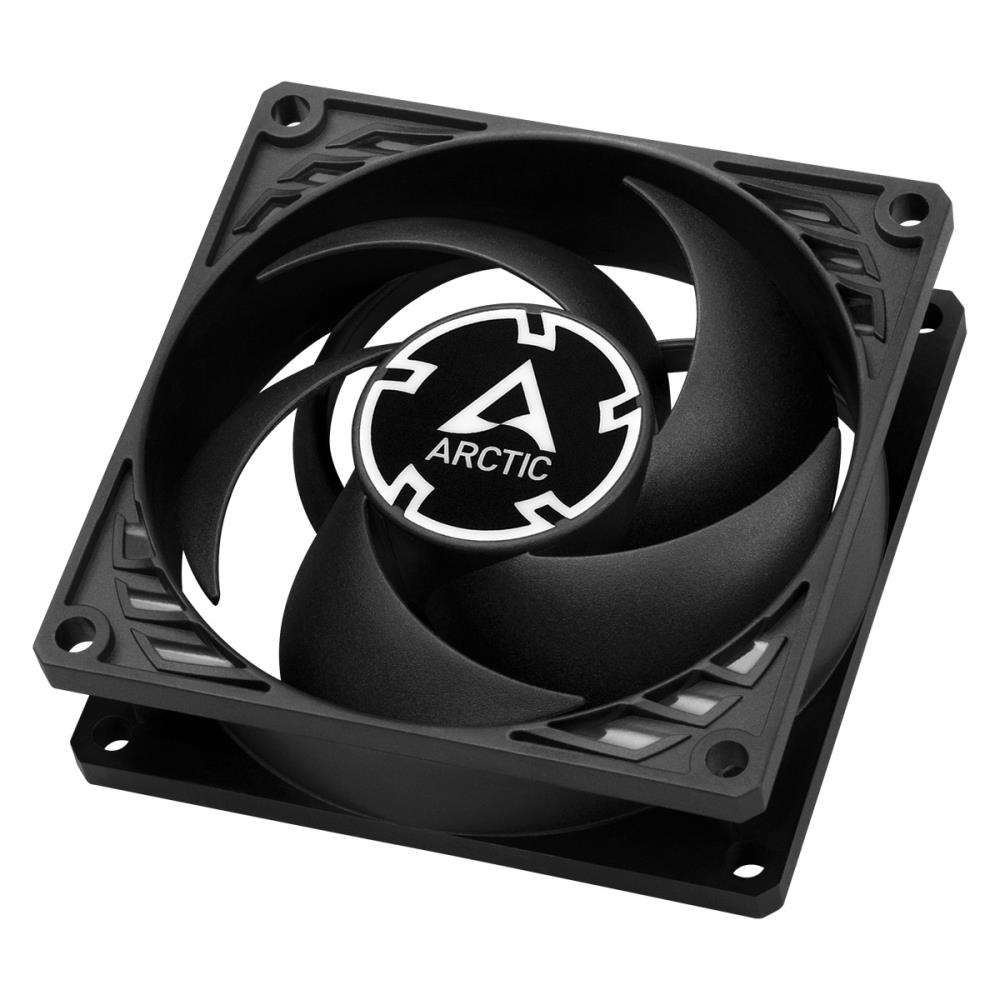

P8 Max
80 mm High Speed PWM Fan
The P8 Max is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 40 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.19 A. The P8 Max is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.
| Vendor | ARCTIC |
|---|---|
| Model | ACFAN00286A |
| Model name | P8 Max |
| Fan size group | 80mm |
| Bearing type | Ball |
| Number of fans | 1 fan(s) |
| Nominal voltage | 12 V |
| Fan speed | 500–5000 rpm |
| Airflow | 67.96 m³/h |
| Mainboard connection | 4-pin |
| Colour | Black |
| Dimensions | 80x80x25mm |
| Units per Shipping Box | 150 |
| Unit Calculated Volume | 0.0002376 cubm |
| Product Net Weight | 0.084 kg |
| Unit Calculated Weight | 0.105 kg |
| Summary | ARCTIC P8 Max – High-Performance 80 mm PWM Fan. Type: Fan, Fan diameter: 8 cm, Noise level: 0.6 sone, Airflow: 67.96 m³/h. Product colour: Black |
| Fan bearing technology | Double ball bearing |
| Fan diameter | 80 mm |
| Fan speed (max) | 5000 RPM |
| Fan speed (min) | 500 RPM |
| Fan static pressure | 5.3 mmH2O |
| Fan's mean time to failure (MTTF) | 500000 h |
| Maximum airflow | 40 cfm |
| Noise level | 0.6 sone |
| Operating temperature (T-T) | 0 – 40 °C |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Suitable location | Computer case |
| Type | Fan |
| Fan connector | 4-pin |
| Number of fan blades | 5 |
| Product colour | Black |
| Rack capacity | 2U |
| Fan current | 0.19 A |
| Fan voltage | 12 V |
| Starting voltage | 3.2 V |
| Cable length | 0.4 m |

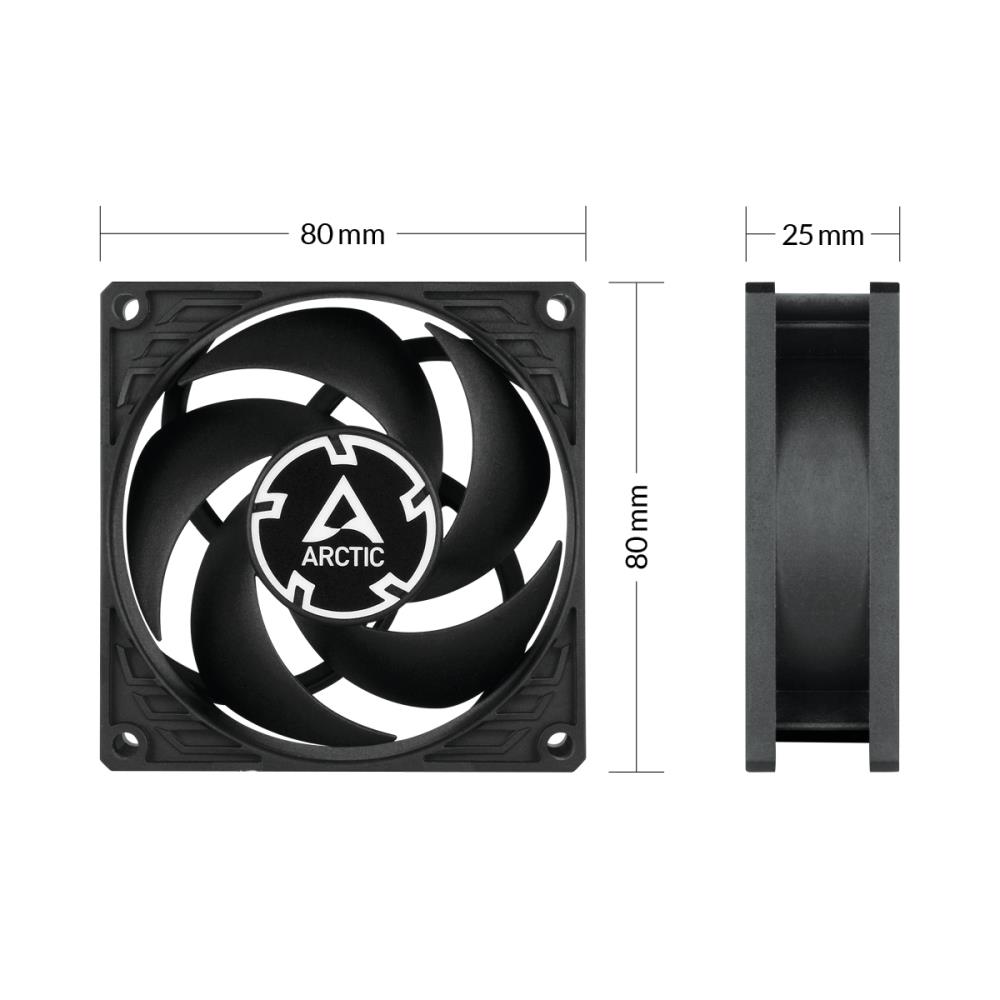

| Fan dimensions (W x D x H) | 80 x 80 x 25 mm |
| Fan weight | 84 g |
| Package depth | 82.5 mm |
| Package height | 26 mm |
| Package weight | 89 g |
| Package width | 82.5 mm |
| Mounting kit | Yes |
| Screws included | Yes |
| Country of origin | Hong Kong |
| Manufacturer Code | ACFAN00286A |
| ELKO Code | 1411602 |
| Warranty | 24 |
