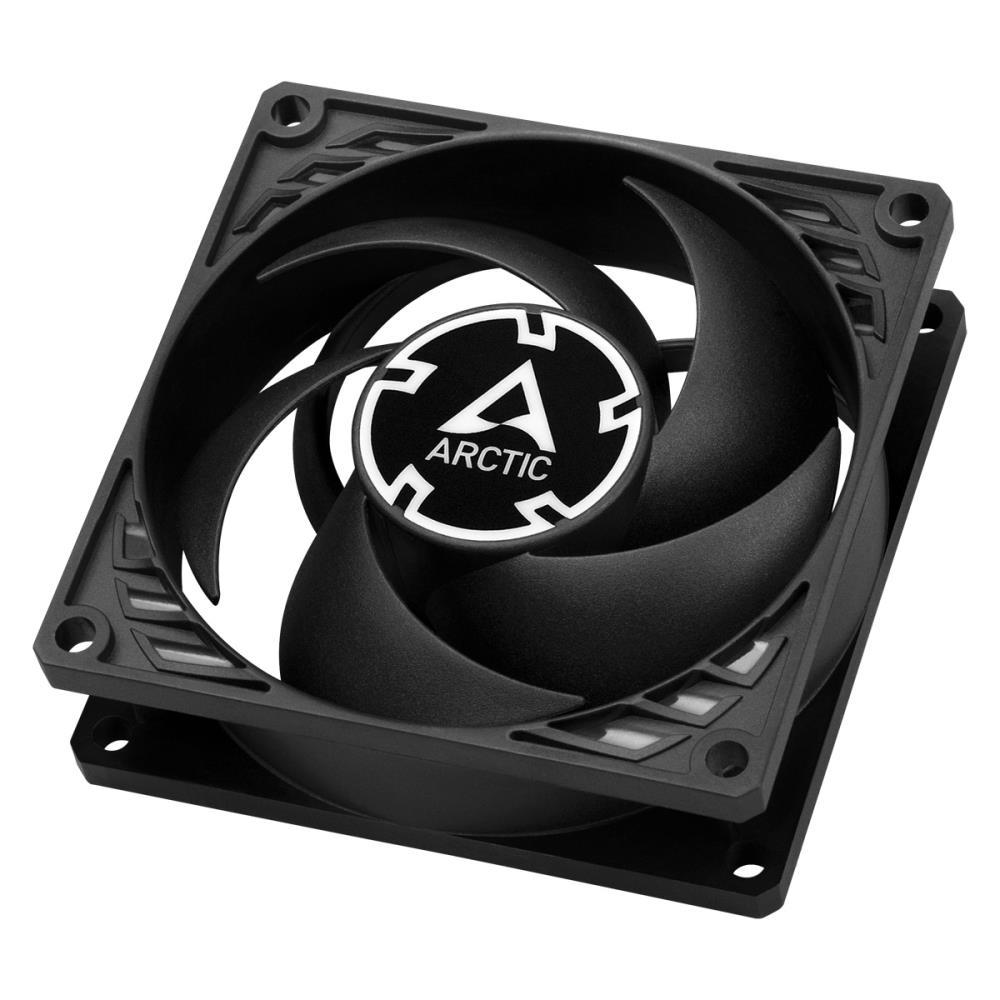

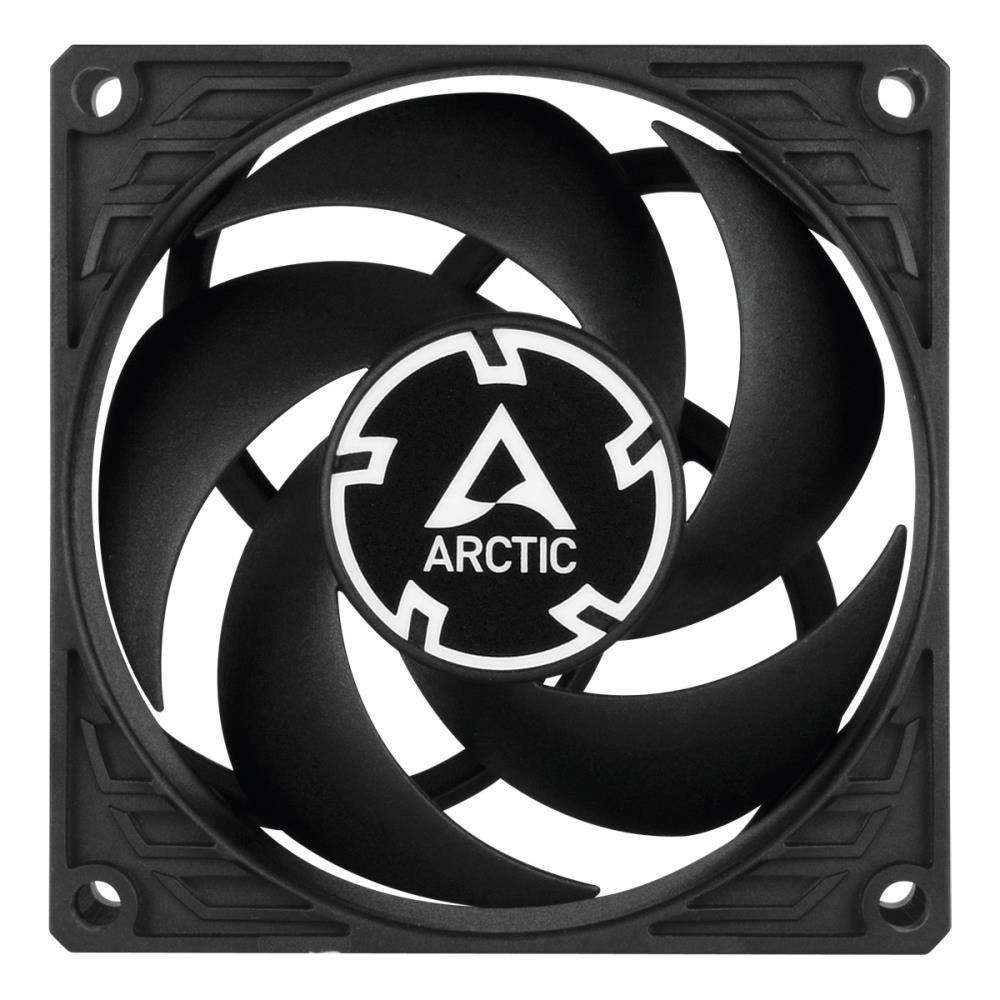

ARCTIC P8 PWM PST – Pressure-optimised 80 mm Fan with PWM PST. Type: Fan, Fan diameter: 8 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 80 mm, Depth: 25 mm, Height: 80 mm. Product colour: Black
100 laos
100 laos
Not only that we at ARCTIC free the IT world from noise – we care for the right sound as well!
As an international company, our expertise extends over noise reduction in PCs to consumer electronics products.
| Vendor | ARCTIC |
|---|---|
| Model | ACFAN00150A |
| Model name | P8 PWM PST |
| Fan size group | 80mm |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan speed | 200 – 3000 rpm |
| Airflow | 40.3 m³/h |
| Mainboard connection | 4-pin |
| Colour | Black |
| Dimensions | 80x80x25mm |
| Units per Shipping Box | 150 |
| Unit Calculated Volume | 0.0002212 cubm |
| Product Net Weight | 0.081 kg |
| Unit Calculated Weight | 0.103 kg |
| Summary | ARCTIC P8 PWM PST – Pressure-optimised 80 mm Fan with PWM PST. Type: Fan, Fan diameter: 8 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 3000 RPM, Noise level: 0.3 sone, Airflow: 40.3 m³/h, Maximum air pressure: 1.9 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 80 mm, Depth: 25 mm, Height: 80 mm. Product colour: Black |
| Compatible processor series | Not supported |
| Fan diameter | 80 mm |
| Maximum air pressure | 1.9 mmH2O |
| Maximum airflow | 23.4 cfm |
| Noise level | 0.3 sone |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 3000 RPM |
| Rotational speed (min) | 200 RPM |
| Suitable location | Computer case |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan connector | 4-pin |
| Number of fan blades | 5 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Voltage | 12 V |
| Cable length | 0.4 m |
| Depth | 25 mm |
| Height | 80 mm |
| Package depth | 26 mm |
| Package height | 82.5 mm |
| Package weight | 99 g |
| Package width | 82.5 mm |
| Weight | 81 g |
| Width | 80 mm |
| Manual | Yes |
| Number of screws | 4 |
| Package type | Box |
| Screws included | Yes |
| Country of origin | China |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Manufacturer Code | ACFAN00150A |
| ELKO Code | 1411627 |
| Warranty | 24 |
