PC komponendid / Jahutus / Süsteemi- ja VGA-jahutid / FAN 140MM/ACFAN00197A ARCTIC

FAN 140MM/ACFAN00197A ARCTIC

6,25

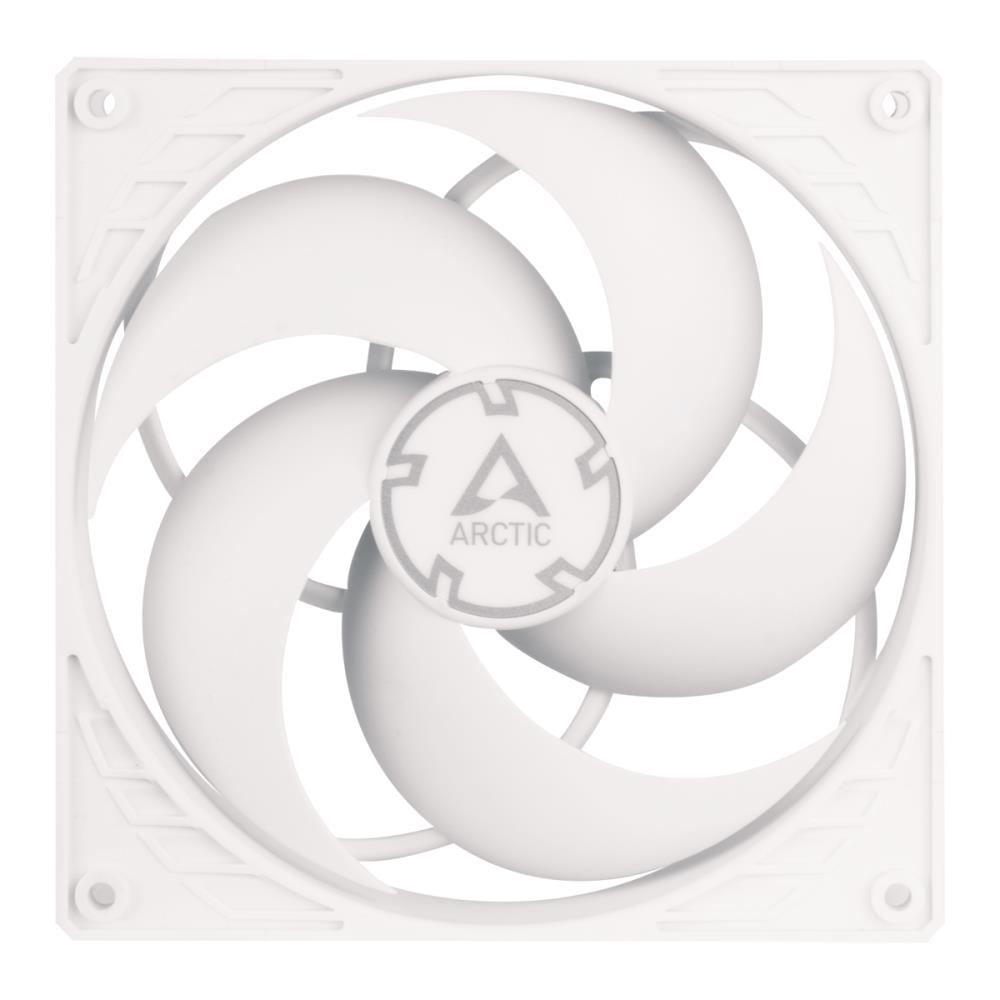

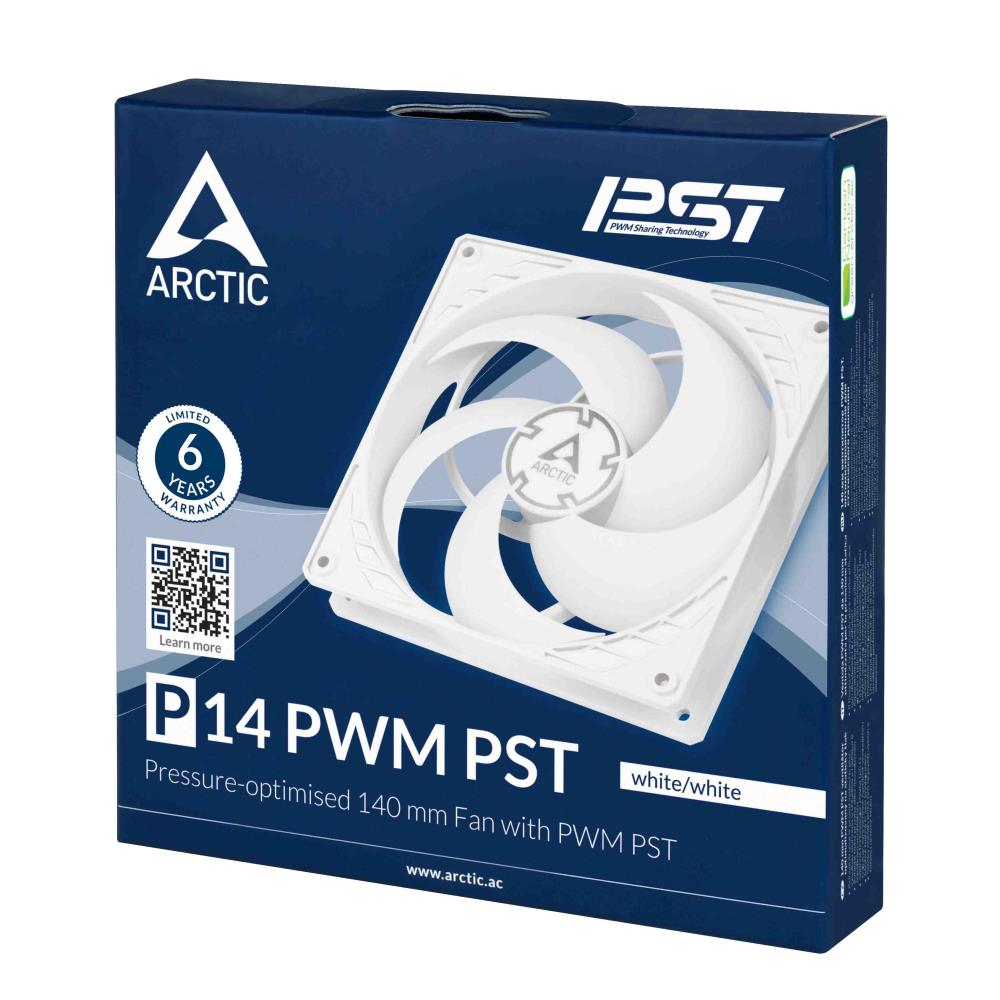

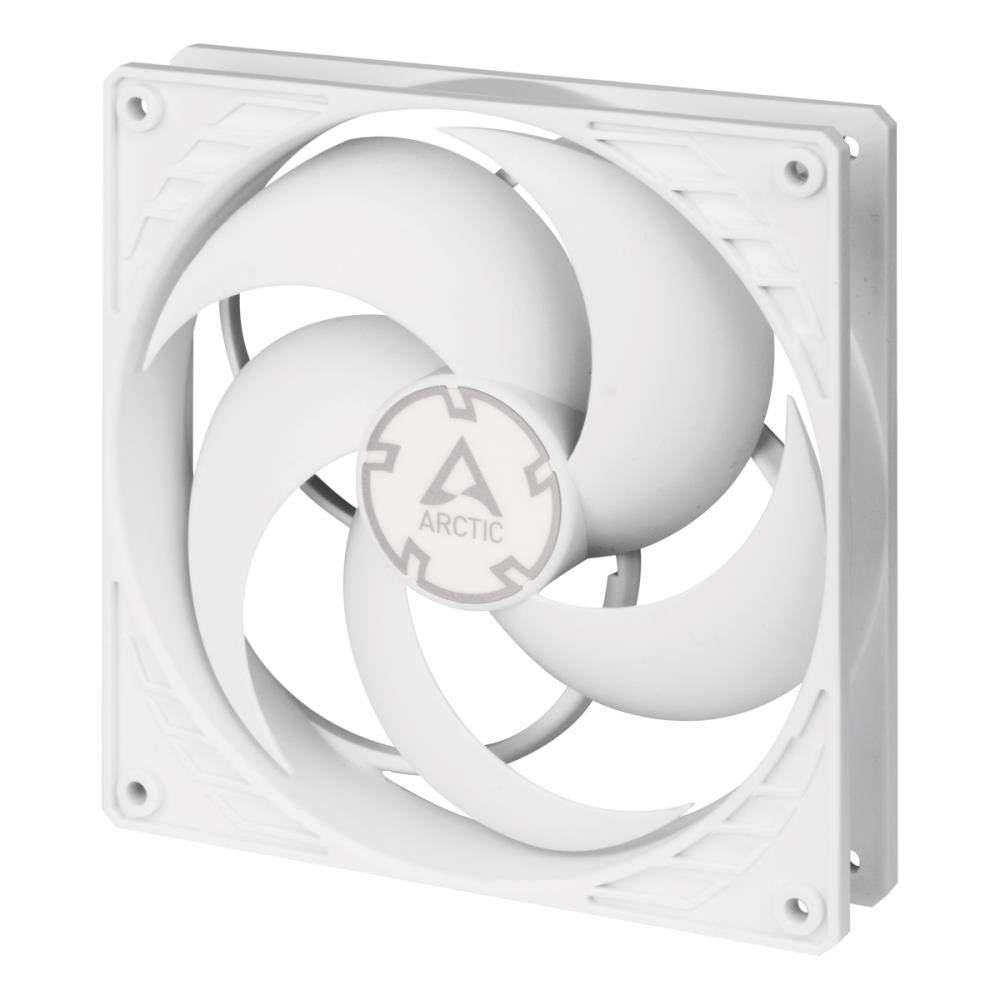

ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.69 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: White

50 laos

50 laos

Tootekood: ACFAN00197A Kategooriad: , , ,

Kirjeldus

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.

  • Optimised for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • Push- or pull-configuration
  • PWM Sharing Technology (PST) regulates fan speed synchronously
  • Newly developed, very quiet motor
  • Extended life span

Lisainfo

Vendor

ARCTIC

Model name

P14 PWM PST

Fan size group

140mm

Bearing type

Fluid Dynamic Bearing (FDB)

Fan speed

200 – 1700 rpm

Airflow

123.69 m³/h

Mainboard connection

4-pin

Colour

White

Dimensions

140x140x27mm

Units per Shipping Box

68

Unit Calculated Volume

0.0007249 cubm

Product Net Weight

0.194 kg

Unit Calculated Weight

0.244 kg

Summary

ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.69 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: White

Fan diameter

140 mm

Maximum air pressure

2.4 mmH2O

Maximum airflow

72.8 cfm

Noise level

0.3 sone

Pulse-width modulation (PWM) support

Yes

Rotational speed (max)

1700 RPM

Rotational speed (min)

200 RPM

Suitable location

Computer case

Type

Fan

Fan connector

4-pin

Product colour

White

Rated current

0.12 A

Starting voltage

6 V

Voltage

12 V

Cable length

0.4 m

Depth

140 mm

Height

27 mm

Package depth

29 mm

Package height

143 mm

Package weight

230 g

Package width

143 mm

Weight

194 g

Width

140 mm

Manual

Yes

Number of screws

4

Screws included

Yes

Harmonized System (HS) code

84733080

Manufacturer Code

ACFAN00197A

ELKO Code

1411609

Warranty

24

Brand

ARCTIC
