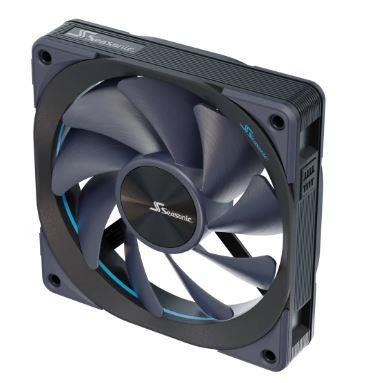

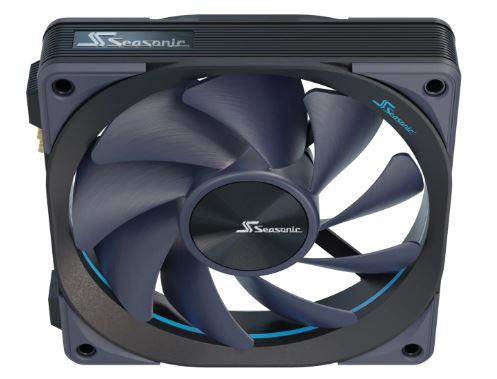

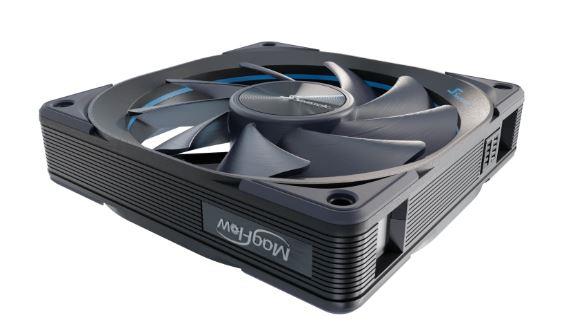

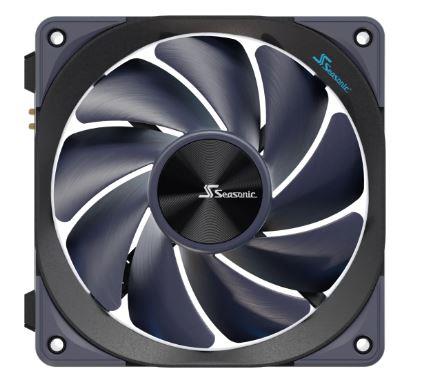

Seasonic MagFlow 1-Fan Kit. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 2.61 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 124.2 mm, Depth: 26.6 mm, Height: 120.4 mm. Product colour: Black
Laost otsas
Laost otsas

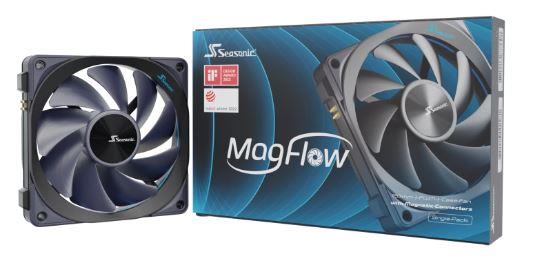

Thanks to the very innovative magnetic connection system, the installation of new MagFlow fans will be fast and effortless. Customers will have the choice to purchase single fan kits or a 3-Fan kit, depending on their needs to create the most efficient cooling for the PC components or radiators.
DAISY CHAIN DESIGN
Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner.
MODULARITY
Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process.
EASY INSTALLATION ON TOP OF THE RADIATOR
After the fans are connected, they can be installed on top of the water-cooling radiator with only four screws, which reduces the time spent on alignment and screw locking.
| Kaal | 0,212 kg |
|---|---|
| Warranty | 24 |
| Model | MAGFLOW-1 |
| Model name | MagFlow 120 mm |
| Fan size group | 120mm |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Number of fans | 1 fan(s) |
| Fan speed | 600'2000±10% RPM |
| Air flow | 63.33 cfm |
| Noise level, max | 33.7 dB |
| Colour | Black |
| Dimensions | 120.4 x 124.2 x 26.6 mm |
| Unit Calculated Volume | 0.00025 cubm |
| Product Net Weight | 0.212 kg |
| Unit Calculated Weight | 0.35 kg |
| Summary | Seasonic MagFlow 1-Fan Kit. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 2.61 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 124.2 mm, Depth: 26.6 mm, Height: 120.4 mm. Product colour: Black |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
| Maximum air pressure | 2.61 mmH2O |
| Maximum airflow | 63.33 cfm |
| Mean time between failures (MTBF) | 100000 h |
| Quantity per pack | 1 pc(s) |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 600 RPM |
| Suitable location | Computer case |
| Type | Fan |
| Number of fan blades | 9 |
| Product colour | Black |
| Fan current | 0.1 A |
| Fan voltage | 12 V |
| Maximum current | 0.18 A |
| Rated current | 0.1 A |
| Voltage | 12 V |
| Depth | 26.6 mm |
| Fan dimensions (W x D x H) | 124.2 x 26.6 x 120.4 mm |
| Fan weight | 212.7 g |
| Height | 120.4 mm |
| Weight | 212.7 g |
| Width | 124.2 mm |
| Cables included | Fan |
| Manual | Yes |
| Number of screws | 4 |
| Package type | Box |
| Screws included | Yes |
