PC komponendid / Korpused ja toiteplokid / Lauaarvuti toiteplokid / ENDORFY SUPREMO FM6 850 Watts Efficiency 80 PLUS GOLD MTBF 100000 hours EY7A012

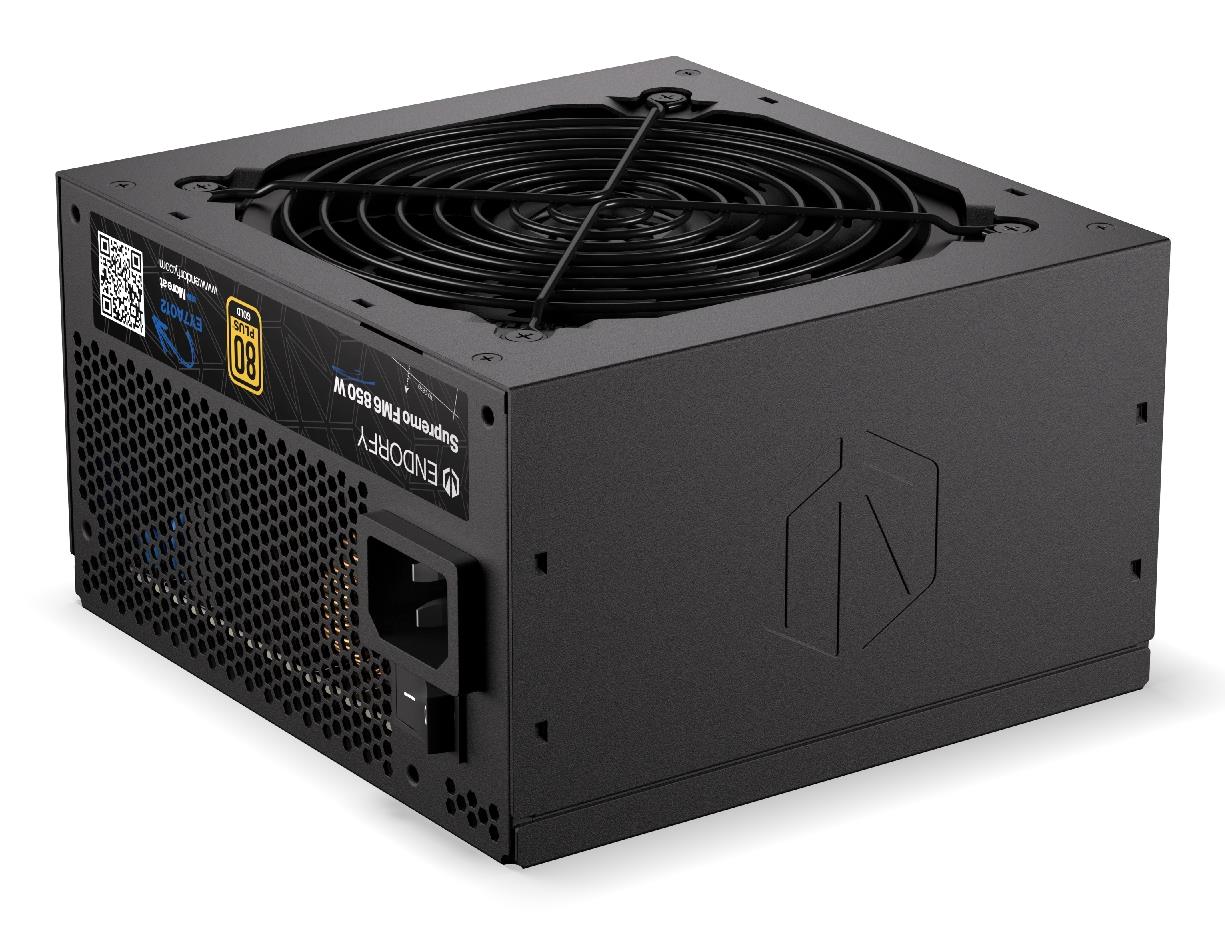

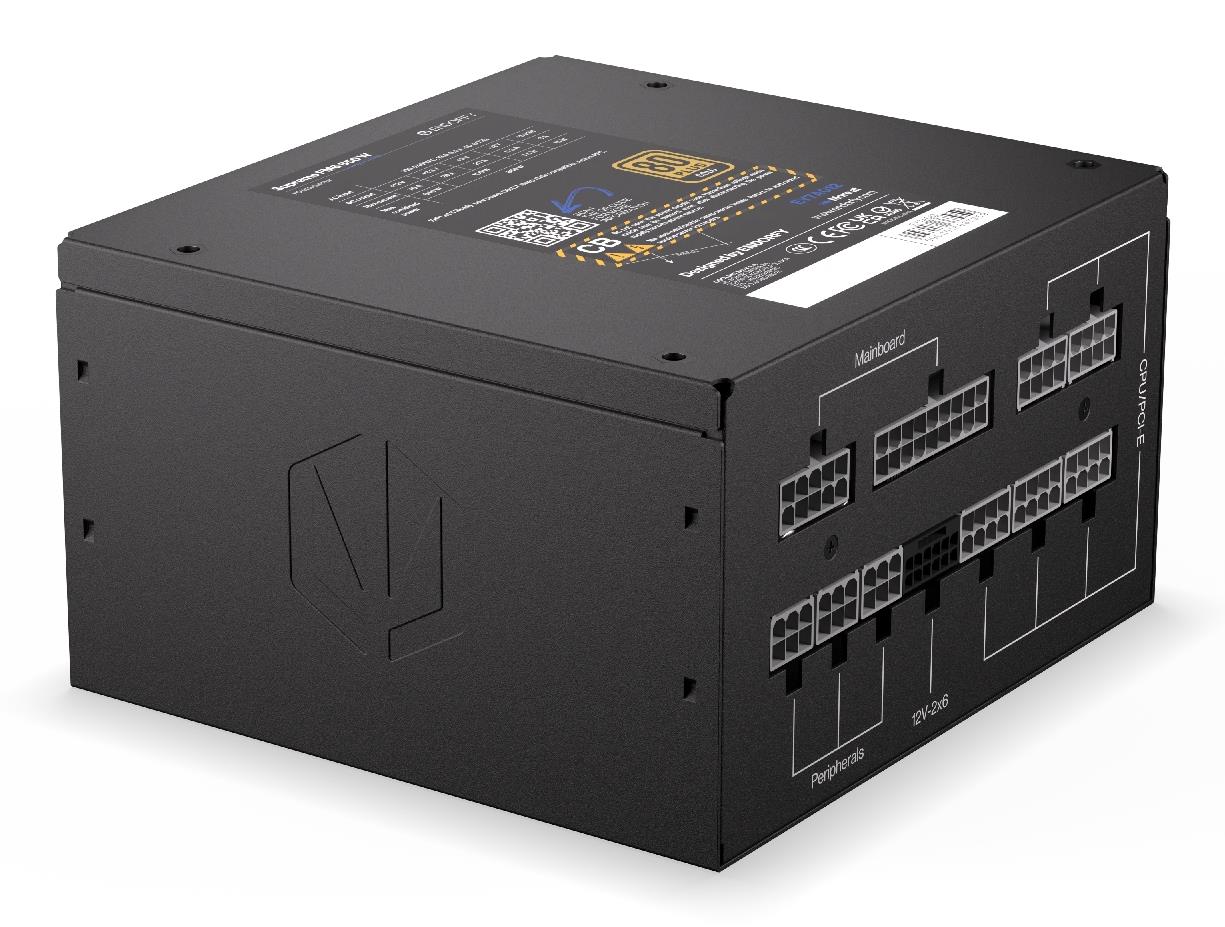

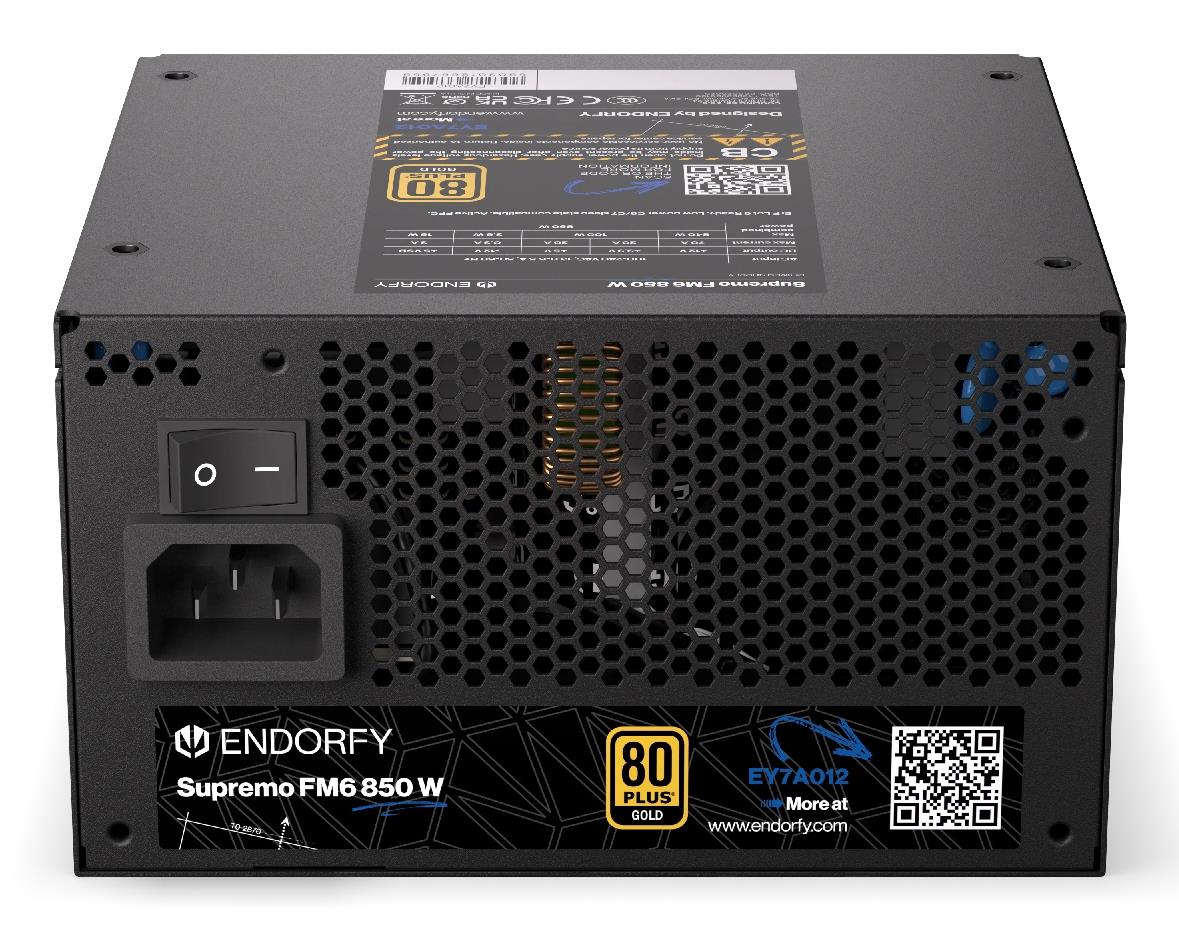

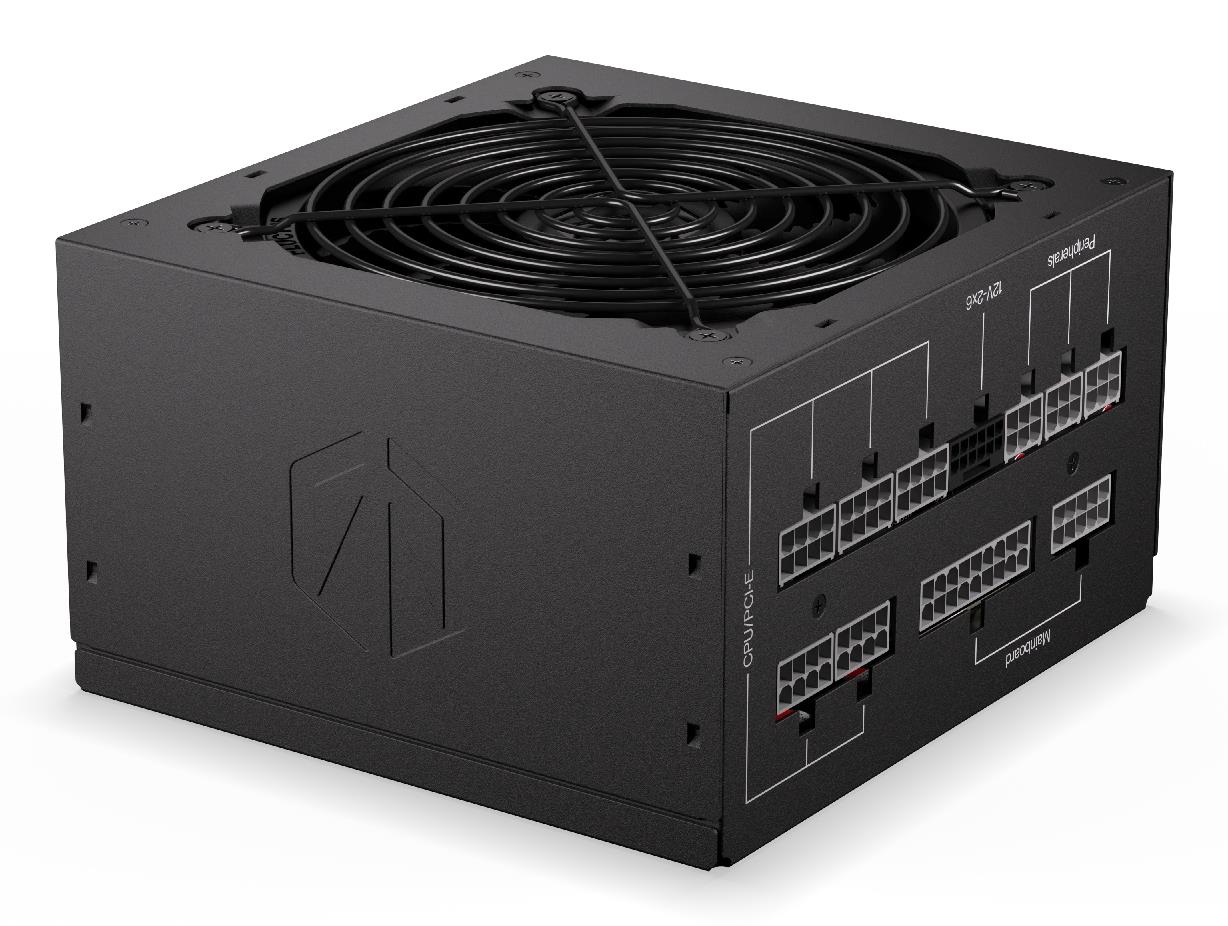

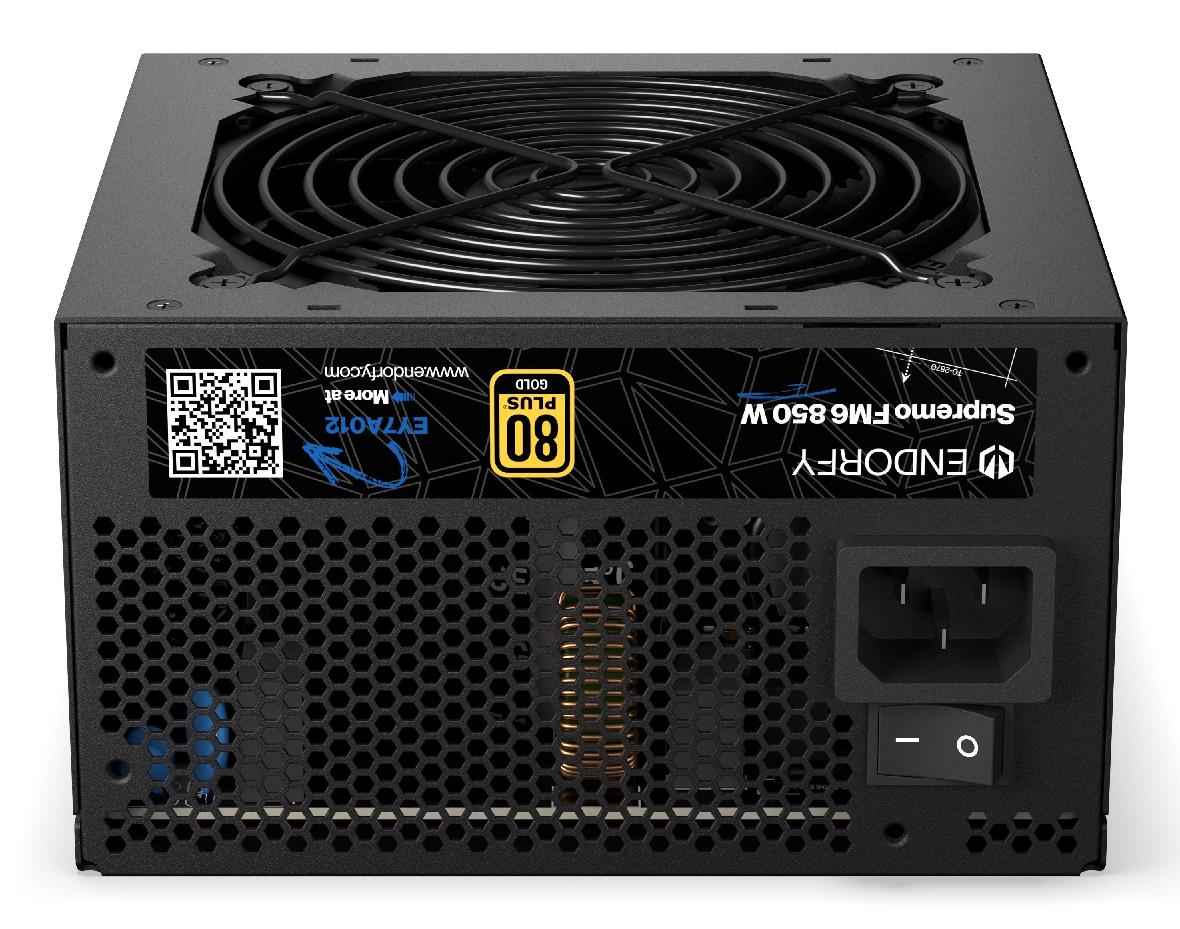

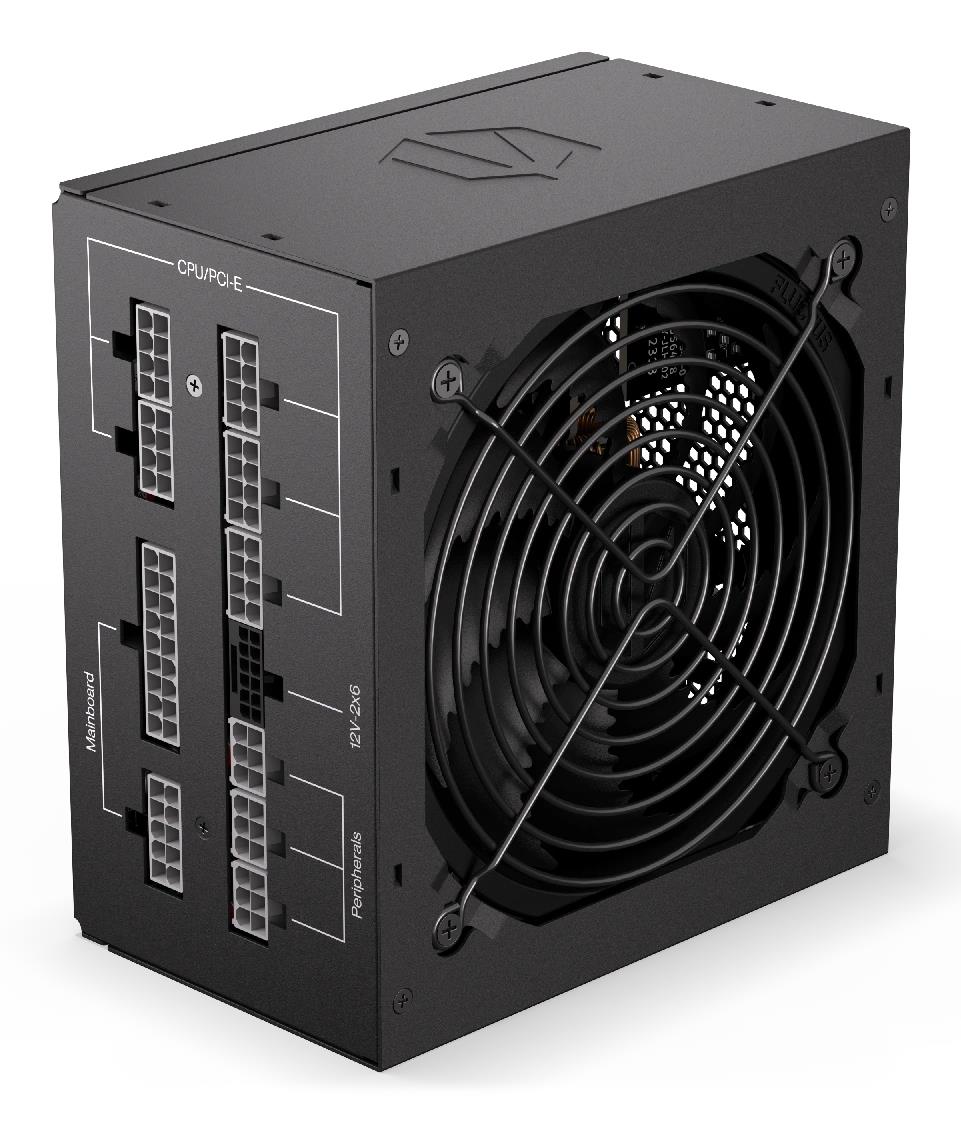

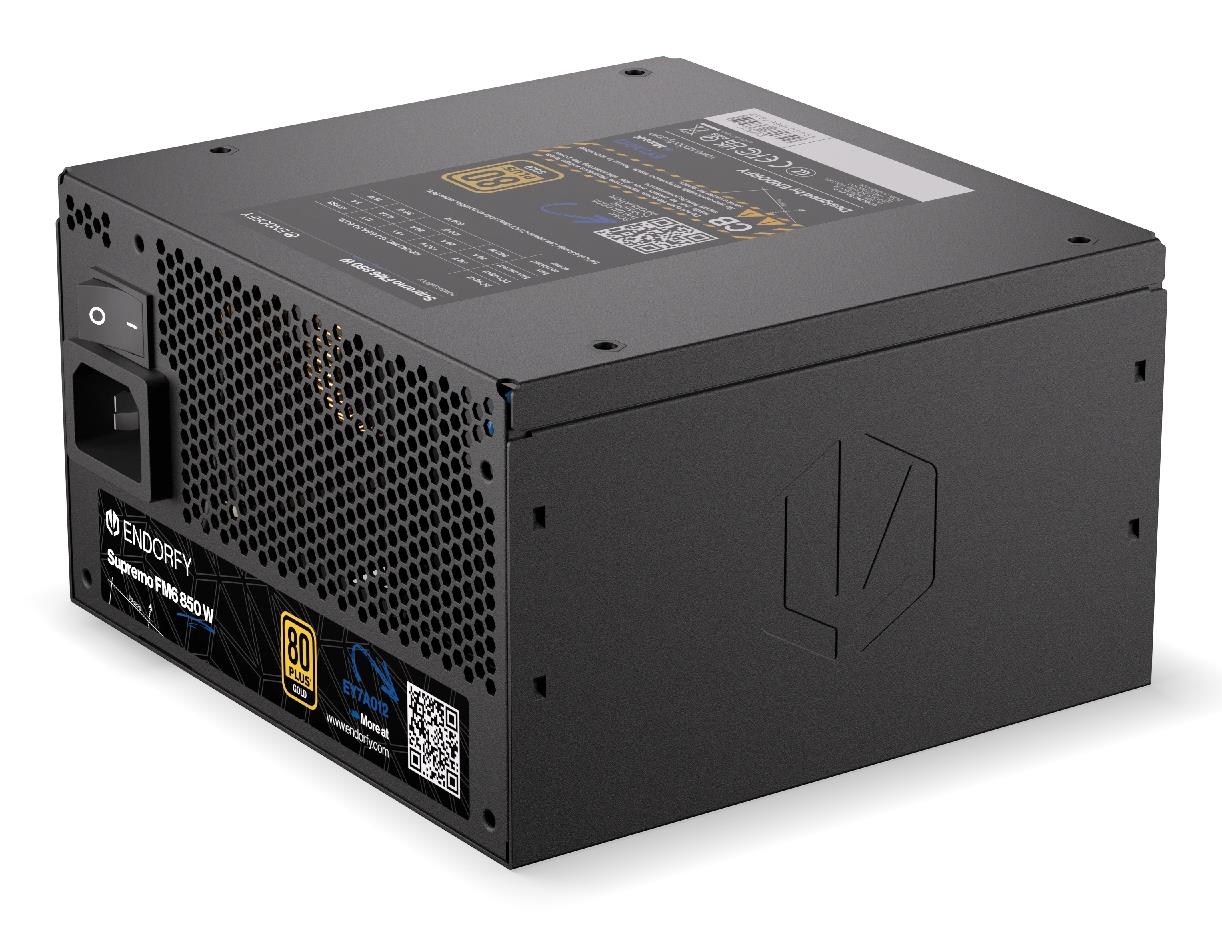

ENDORFY SUPREMO FM6 850 Watts Efficiency 80 PLUS GOLD MTBF 100000 hours EY7A012

127,92

ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

4 laos

4 laos

Kirjeldus

Supremo FM6 850 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

Supremo FM6 850 W
Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

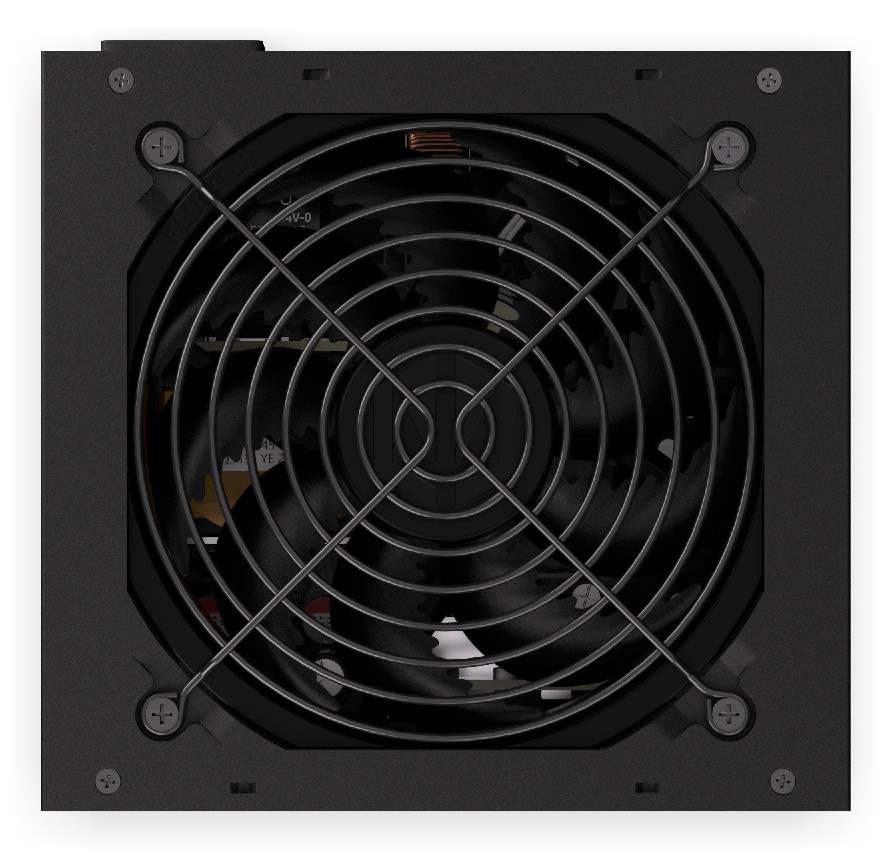

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

Ready for latest ATX 3.1 standards
Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2×6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life. 

Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions. 

Lisainfo

Mõõtmed 15 × 14 × 8,7 cm
Vendor

ENDORFY

Summary

ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC

AC input frequency

50/60 Hz

AC input voltage

100 – 240 V

Combined power (-12V)

3.6 W

Combined power (+3.3V)

66 W

Combined power (+5V)

100 W

Combined power (+5Vsb)

15 W

Input current

13 – 6.5 A

Max output current (-12V)

0.3 A

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Max output current (+5Vsb)

3 A

Power Factor Correction (PFC) type

Active

Power protection features

Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage

Total power

850 W

Cabling type

Fully-Modular

EPS power connector (4+4 pin)

Yes

Motherboard power connector

24-pin ATX

Number of SATA power connectors

8

PCI Express power connectors (12+4 pin)

1

PCI Express power connectors (6+2 pin)

3

Peripheral (Molex) power connectors (4-pin)

1

SATA power cable length

560 mm

80 PLUS certification

80 PLUS Gold

ATX version

3.1

Bearing technology

FDB

Mean time between failures (MTBF)

100000 h

Power supply unit (PSU) form factor

ATX

Purpose

PC

Cooling type

Active

Fan diameter

120 mm

Fan location

Top

Fan speed

1260 – 1540 RPM

Illumination

No

LED indicators

No

Number of fans

1 fan(s)

On/off fan switch

No

On/off switch

Yes

Product colour

Black

Cables included

AC

Compliance certificates

CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA

Depth

150 mm

Height

87 mm

Weight

1460 g

Width

140 mm

Case or master carton dimensions (W x D x H)

600 x 235 x 290 mm

Case or master carton weight

17000 kg

Manual

Yes

Package depth

270 mm

Package height

95 mm

Package type

Box

Package weight

2740 g

Package width

220 mm

Doesn't contain

Cadmium/Lead/Mercury

Country of origin

China

Warranty period

10 year(s)

Model name

SUPREMO FM6

Units per Shipping Box

1

Unit Calculated Volume

0.00594 cubm

Unit Calculated Weight

2.72 kg

CnCode

85044095

Manufacturer Code

EY7A012

ELKO Code

1439921

Warranty

24

Power — AC input frequency

50/60 Hz

Power — AC input voltage

100 – 240 V

Power — Combined power (+3.3V)

66 W

Power — Combined power (+5V)

100 W

Power — Combined power (+5Vsb)

15 W

Power — Combined power (-12V)

3.6 W

Power — Input current

13 – 6.5 A

Power — Max output current (+3.3V)

20 A

Power — Max output current (+5V)

20 A

Power — Max output current (+5Vsb)

3 A

Power — Max output current (-12V)

0.3 A

Power — Power Factor Correction (PFC) type

Active

Power — Power protection features

Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage

Power — Total power

850 W

Ports & interfaces — Cabling type

Fully-Modular

Ports & interfaces — EPS power connector (4+4 pin)

Yes

Ports & interfaces — Motherboard power connector

24-pin ATX

Ports & interfaces — Number of SATA power connectors

8

Ports & interfaces — PCI Express power connectors (12+4 pin)

1

Ports & interfaces — PCI Express power connectors (6+2 pin)

3

Ports & interfaces — Peripheral (Molex) power connectors (4-pin)

1

Ports & interfaces — SATA power cable length

560 mm

Performance — 80 PLUS certification

80 PLUS Gold

Performance — ATX version

3.1

Performance — Bearing technology

FDB

Performance — Mean time between failures (MTBF)

100000 h

Performance — Power supply unit (PSU) form factor

ATX

Performance — Purpose

PC

Design — Cooling type

Active

Design — Fan diameter

120 mm

Design — Fan location

Top

Design — Fan speed

1260 – 1540 RPM

Design — Illumination

No

Design — LED indicators

No

Design — Number of fans

1 fan(s)

Design — On/off fan switch

No

Design — On/off switch

Yes

Design — Product colour

Black

Packaging content — Cables included

AC

Certificates — Compliance certificates

CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA

Weight & dimensions — Depth

150 mm

Weight & dimensions — Height

87 mm

Weight & dimensions — Weight

1460 g

Weight & dimensions — Width

140 mm

Packaging data — Case or master carton dimensions (W x D x H)

600 x 235 x 290 mm

Packaging data — Case or master carton weight

17000 kg

Packaging data — Manual

Yes

Packaging data — Package depth

270 mm

Packaging data — Package height

95 mm

Packaging data — Package type

Box

Packaging data — Package weight

2740 g

Packaging data — Package width

220 mm

Technical details — Doesn't contain

Cadmium/Lead/Mercury

Logistics data — Country of origin

China

Logistics data — Warranty period

10 year(s)

Brand

ENDORFY
