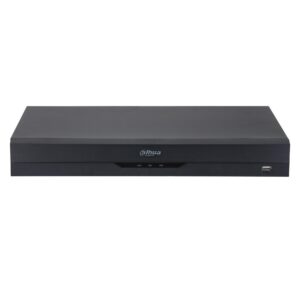

Dahua Technology DH-XVR5108HE-4KL-I3. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. Width: 325 mm, Depth: 257.1 mm, Height: 55 mm. Package width: 372 mm, Package depth: 117 mm, Package height: 308 mm
1 laos
1 laos
Pentabrid capability: Each channel supports up to 8MP: HDCVI, AHD, TVI, CVBS and IP Video input, Auto-detect

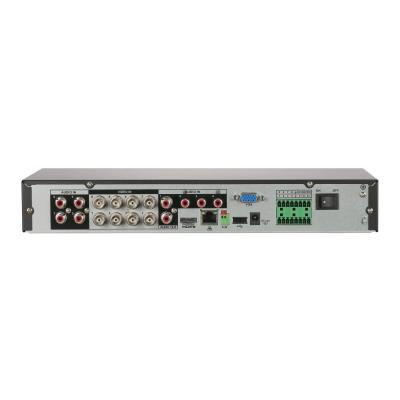

8-channel BNC interface
Recording: HDCVI/AHD/HD-TVI recording: 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
All channel 4K(1 fps–7 fps); 6MP(1 fps–10 fps); 5MP(1 fps–12 fps); 4K-N, 4MP/3MP(1 fps–15 fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30 fps)
IP: 8+8 channels, each channel up to 8MP
AI Coding/H.265+/H.265/H.264+/H.264 video compression
G.711A, G.711U, PCM audio compression
1x SATA interface up to 16 TB storage
VGA/HDMI up to 4K output
RJ-45, 2x USB ports, RS485
No front panel control, 8/1 Audio I/O, 8/3 Alarm I/O
Mini 1U case, mouse included
ONVIF 16.12, CGI Conformant, Smart Search, Coax audio support
Third-party IP camera support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
AI: Up to 2 channels video stream (analog channel) Perimeter Protection
Up to 8 channels video stream (analog channel) SMD Plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities
Free IP monitoring software available
| Kaal | 1,24 kg |
|---|---|
| Vendor | DAHUA |
| SATA | Yes |
| 15pin D-sub | 1 |
| Alarm In | 3 |
| Audio-In | 8 |
| Audio-Out | 1 |
| HDMI | 1 |
| VHDCI | 8 |
| DVR type | 8 Channel |
| Camera Compatibility | AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HDCVI 8MP/HD-TVI/TurboHD 5MP/IP |
| Power supply requirements | DC12V, 2A |
| Dimensions | 325.0 mm × 256.6 mm × 55.0 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01315 cubm |
| Product Net Weight | 1.24 kg |
| Unit Calculated Weight | 1.92 kg |
| Summary | Dahua Technology DH-XVR5108HE-4KL-I3. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Gigabit Ethernet, Supported network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. Width: 325 mm, Depth: 257.1 mm, Height: 55 mm. Package width: 372 mm, Package depth: 117 mm, Package height: 308 mm |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Analog signal format system | NTSC/PAL |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Bit rate | 64 Kbit/s |
| Channels quantity | 8 channels |
| Maximum video resolution | 3840 x 2160 pixels |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Depth | 257.1 mm |
| Height | 55 mm |
| Weight | 1240 g |
| Width | 325 mm |
| Package depth | 117 mm |
| Package height | 308 mm |
| Package weight | 1920 g |
| Package width | 372 mm |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -10 – 55 °C |
| Manufacturer Code | DH-XVR5108HE-4KL-I3 |
| ELKO Code | 1365501 |
| Warranty | 36 |
| Interface — SATA | Yes |
| Input/Output connectors — 15pin D-sub | 1 |
| Input/Output connectors — Alarm In | 3 |
| Input/Output connectors — Audio-In | 8 |
| Input/Output connectors — Audio-Out | 1 |
| Input/Output connectors — HDMI | 1 |
| Input/Output connectors — VHDCI | 8 |
