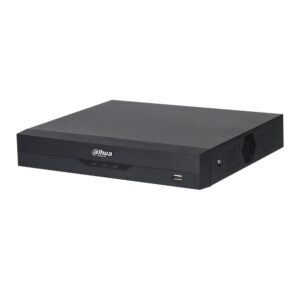

Dahua Technology XVR5104HS-4KL-I3. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 4 channels, Audio output: 1 RCA. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 7 W
2 laos
2 laos
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies,
WizSense provides intelligent, simple and inclusive products and solutions.
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-4KL-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to
customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
| Kaal | 0,53 kg |
|---|---|
| Vendor | DAHUA |
| SATA | Yes |

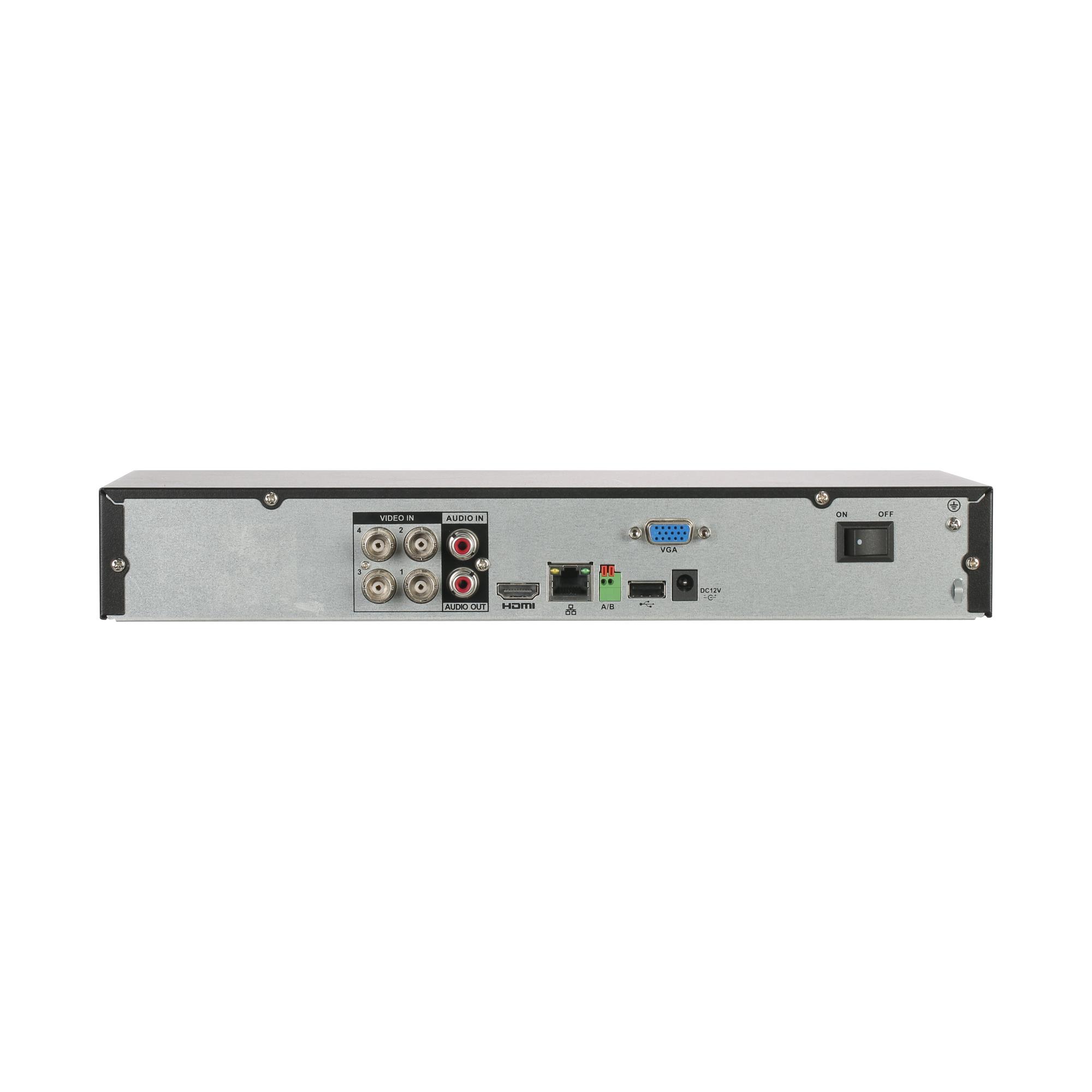

| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| RS-485 | 1 |
| USB 2.0 | 2 |
| DVR type | 4 Channel |
| Camera Compatibility | AHD 1080P/AHD 5MP/AHD 720P/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 6MP/HDCVI 720P/HD-TVI/TurboHD 1080P/HD-TVI/TurboHD 3MP/HD-TVI/TurboHD 5MP/HD-TVI/TurboHD 720P/IP |
| Number of channels | 4 |
| Power supply requirements | DC 12V/2A |
| Dimensions | 260.0 × 237.9 × 47.6mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.009497 cubm |
| Product Net Weight | 0.53 kg |
| Unit Calculated Weight | 1.42 kg |
| Summary | Dahua Technology XVR5104HS-4KL-I3. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 4 channels, Audio output: 1 RCA. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 7 W |
| Audio input | 1 |
| Audio output | 1 RCA |
| BNC input ports | 4 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 2 |
| Video input channels | 4 channels |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| HDD interface | SATA |
| Maximum HDD capacity | 16000 GB |
| Number of HDDs supported | 1 |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Backup function | Yes |
| Certification | FCC: Part 15 Subpart B |
| Channels quantity | 4 channels |
| Maximum video resolution | 3840 x 2160 pixels |
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| PTZ control | Yes |
| Rack capacity | 1U |
| Video capturing speed | 30 fps |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
| DC voltage | 12 V |
| Power consumption (typical) | 7 W |
| Power supply type | DC |
| Depth | 237.9 mm |
| Height | 47.6 mm |
| Weight | 530 g |
| Width | 260 mm |
| Package depth | 315 mm |
| Package height | 89 mm |
| Package weight | 1070 g |
| Package width | 333 mm |
| Built-in display | No |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -10 – 55 °C |
| Manufacturer Code | DH-XVR5104HS-4KL-I3 |
| ELKO Code | 1354883 |
| Warranty | 36 |
