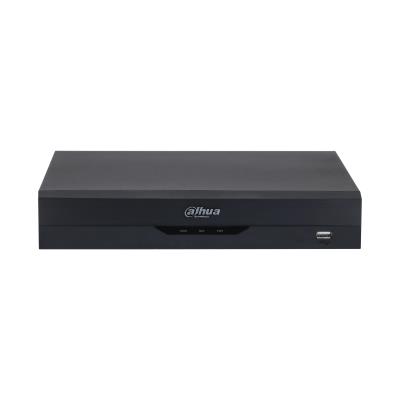

Dahua Technology XVR5116HS-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Audio input: 1 RCA, Audio output: 1 RCA, Video in: HDCVI/AHD/TVI/CVBS/IP. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V
2 laos
2 laos
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.
| Kaal | 0,9 kg |
|---|---|
| Vendor | DAHUA |
| SATA | Yes |
| USB | Yes |
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| Model | XVR5116HS-I3/T |
| DVR type | 16 Channel |
| Camera Compatibility | AHD 5MP/Analog/HDCVI 1080P/HDCVI 4MP/HDCVI 720P/HDCVI 8MP/HD-TVI/TurboHD 5MP/IP |
| Power supply requirements | DC12V, 2A |
| Dimensions | 260.0 mm × 237.4 mm × 47.6 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.008431 cubm |
| Product Net Weight | 0.9 kg |
| Unit Calculated Weight | 1.58 kg |
| CnCode | 85219000 |
| Audio input | 1 RCA |
| Audio output | 1 RCA |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 16000 GB |
| Number of HDDs supported | 1 |
| Channels quantity | 16 channels |
| Dual stream support | Yes |
| Multi-display supported | Yes |
| Playback modes | Event/General/Instant/Smart/Tag |
| Product colour | Black |
| Rack capacity | 1U |
| Supported protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| USB connectivity | Yes |
| DC current (max) | 2 A |
| DC voltage | 12 V |
| Power consumption (typical) | 12 W |
| Power supply type | DC |
| Dimensions (WxDxH) | 260.0 mm × 237.8 mm × 47.6 mm mm |
| Operating temperature (T-T) | -10 – 55 °C |
| Storage temperature (T-T) | –20 °C to +60 °C °C |
| Summary | Dahua Technology XVR5116HS-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Audio input: 1 RCA, Audio output: 1 RCA, Video in: HDCVI/AHD/TVI/CVBS/IP. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V |
| BNC input ports | 16 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Video in | HDCVI/AHD/TVI/CVBS/IP |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Analog signal format system | NTSC/PAL |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Backup function | Yes |
| Bit rate | 32 Kbit/s |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 |
| Maximum video resolution | 3840 x 2160 pixels |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
| Video capturing speed (NTSC) | 30 fps |
| Video capturing speed (PAL) | 25 fps |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Video streaming | Yes |
| Depth | 237.4 mm |
| Height | 47.6 mm |
| Weight | 1170 g |
| Width | 260 mm |
| Package depth | 333 mm |
| Package height | 315 mm |
| Package width | 89 mm |
| Operating relative humidity (H-H) | 10 – 90 % |
| Long Description | Dahua Technology XVR5116HS-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Audio input: 1 RCA, Audio output: 1 RCA, Video in: HDCVI/AHD/TVI/CVBS/IP. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V |
| Bullet Points | H.265+/H.265 dual-stream video compressionSupports Full-channel AI CodingSupports HDCVI/AHD/TVI/CVBS/IP video inputsMax 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidthUp to 2 channels video stream (analog channel) Perimeter ProtectionUp to 16 channels video stream (analog channel) SMD PlusUp to 2 channels video stream (analog channel) human face recognitionIoT & POS functionalities |
| Manufacturer Code | XVR5116HS-I3/T |
| ELKO Code | 1451681 |
| Warranty | 36 |
| Interface — SATA | Yes |
| Interface — USB | Yes |
| Input/Output connectors — 15pin D-sub | 1 |
| Input/Output connectors — Audio-In | 1 |
| Input/Output connectors — Audio-Out | 1 |
| Input/Output connectors — HDMI | 1 |
