CONTROL PANEL GRADE 3/INTEGRA128 PLUS SATEL

Kirjeldus

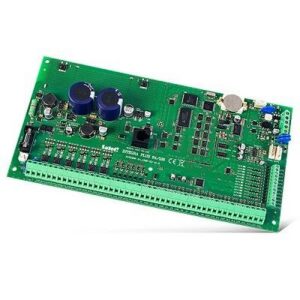

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 128 zones and outputs

• full compliance with EN50131 series of standards for Grade 3 equipment
• built-in advanced 2A+2A power supply with extended autodiagnostics
• up to 128 zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
• USB port for programming via PC
• up to 32 partitions, 8 tenants
• up to 128 fully programmable outputs
• dedicated buses for communication with keypads and expansion modules
• system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
• remote system operation with PC, smartphone or voice-guided telephone menu
• 64 independent timers for automatic control
• access control and home automation features
• non-volatile event log with 22527 entries, with on-line printing support
• support for 240+8+1 user codes
• firmware upgrades via PC
