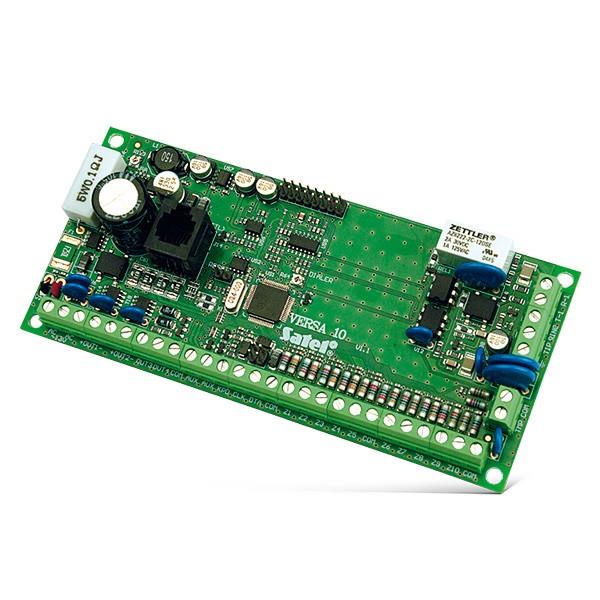

CONTROL PANEL 10-30ZONES/VERSA10 SATEL

Kirjeldus

• EN50131 Grade 2 compliance
• 10 zones expandable up to 30:

  • NO, NC, EOL, 2EOL/NO, 2EOL/NC zone configurations
  • support for vibration and roller shutter detectors
  • detectors supervision

• additional tamper input
• 4 up to 12 programmable outputs
• 2 supply outputs
• 2 partitions:

  • 3 arming modes for each partition
  • arming/disarming by users or timer controlled

• communication bus for keypads, readers and expansion modules
• RS-232 port (RJ type socket) for panel programming built-in telephone dialer for:

  • reporting (SIA, ContactID, other)
  • personal messaging (8 telephone numbers, 64 text/16 voice messages)
  • remote programming (built-in 300 bps modem)

• support for GSM/GPRS communicator:

  • SMS/GPRS reporting
  • voice/SMS messaging

• support for TCP/IP communicator:

  • e-mail messaging
  • TCP/IP reporting

• system operation via:

  • LCD or LED keypads (up to 6)
  • proximity tags/cards (up to 6 readers)
  • remote control key fobs

• easy update of firmware for enhancing the panel with new features
• support for 31 user codes:

  • 30 standard users
  • 1 installer

• individual naming for easy system operation and management
• timers:

  • 4 timers with holidays support

• event log with 2047 entries
• automatic diagnostics of basic system components
• built-in 2 A switching mode power supply:

  • overload protection
  • deep discharge protection
  • battery charging supervision
