Chieftec Vega 750W Series PPG-750-S. Total power: 750 W, AC input voltage: 100 – 240 V. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
Laost otsas
Laost otsas
The CHIEFTEC VEGA Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality.
The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.

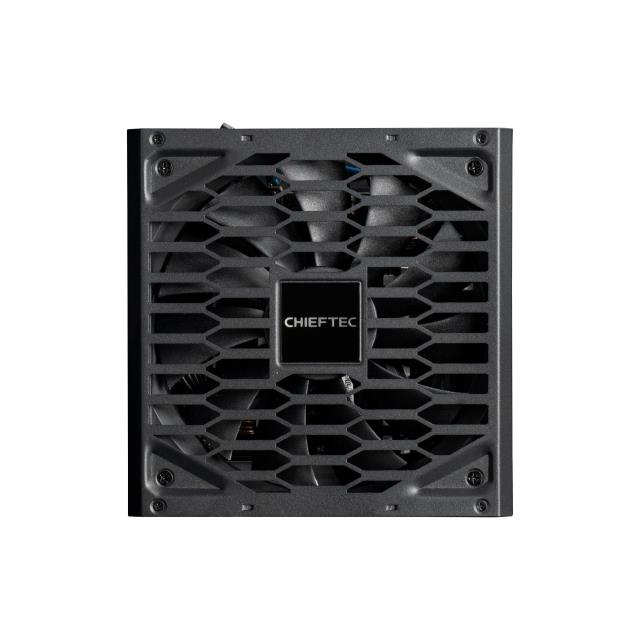

Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.
| Vendor | CHIEFTEC |
|---|---|
| Summary | Chieftec Vega 750W Series PPG-750-S. Total power: 750 W, AC input voltage: 100 – 240 V. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold |
| AC input voltage | 100 – 240 V |
| Total power | 750 W |
| ATX power connector (20+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power cable length | 600 mm |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 400 mm |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Illumination | No |
| Product colour | Black |
| Certification | 80PLUS Gold |
| Weight | 1960 g |
| Package weight | 2460 g |
| Model name | PPG-750-S |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.00792 cubm |
| Unit Calculated Weight | 2.46 kg |
| CnCode | 85044095 |
| Manufacturer Code | PPG-750-S |
| ELKO Code | 1430637 |
| Warranty | 24 |
| Power — AC input voltage | 100 – 240 V |
| Power — Total power | 750 W |
| Ports & interfaces — ATX power connector (20+4 pin) | Yes |
| Ports & interfaces — ATX Power connector (24-pin) | Yes |
| Ports & interfaces — Cabling type | Non-Modular |
| Ports & interfaces — CPU power cable length | 650 mm |
| Ports & interfaces — CPU power connector (4+4 pin) | Yes |
| Ports & interfaces — EPS power connector (4+4 pin) | Yes |
| Ports & interfaces — EPS power connector (8-pin) | Yes |
| Ports & interfaces — Motherboard power cable length | 600 mm |
| Ports & interfaces — Motherboard power connector | 20+4 pin ATX |
| Ports & interfaces — Number of SATA power connectors | 6 |
| Ports & interfaces — PCI Express power cable length | 600 mm |
| Ports & interfaces — PCI Express power connectors (12+4 pin) | 1 |
| Ports & interfaces — PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Ports & interfaces — PCI Express power connectors (6+2 pin) | 4 |
| Ports & interfaces — Peripheral (Molex) power cable length | 400 mm |
| Ports & interfaces — Peripheral (Molex) power connectors (4-pin) | 3 |
| Ports & interfaces — SATA power cable length | 400 mm |
| Performance — 80 PLUS certification | 80 PLUS Gold |
| Performance — ATX version | 3.1 |
| Performance — Bearing technology | FDB |
| Performance — Power supply unit (PSU) form factor | ATX |
| Performance — Purpose | PC |
| Design — Cooling type | Active |
| Design — Fan diameter | 135 mm |
| Design — Illumination | No |
| Design — Product colour | Black |
| Certificates — Certification | 80PLUS Gold |
| Weight & dimensions — Weight | 1960 g |
| Packaging data — Package weight | 2460 g |
