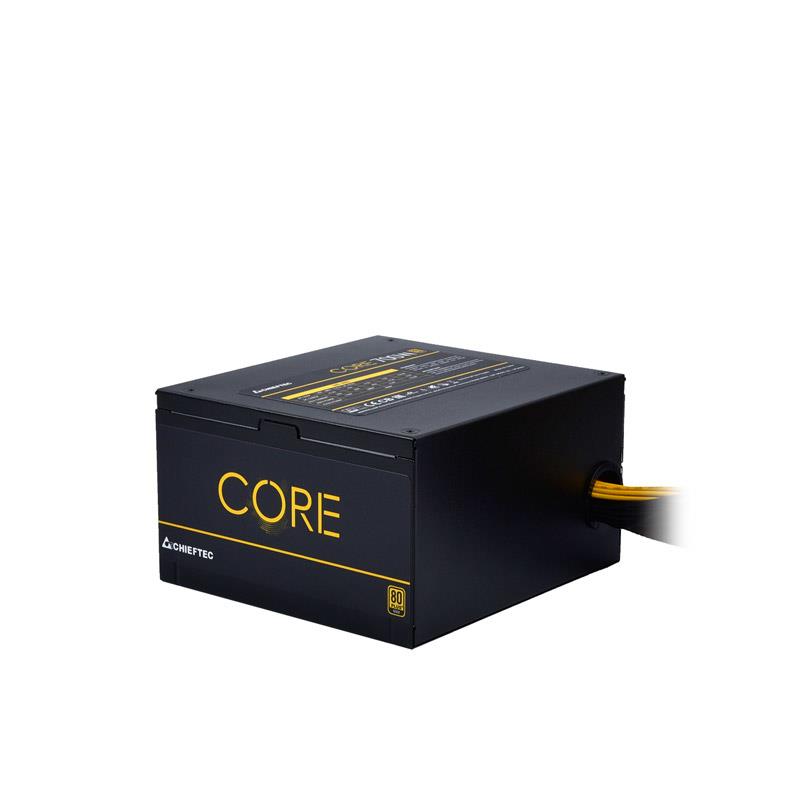

Chieftec Core BBS-700S. Total power: 700 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Laost otsas
Laost otsas
With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
| Mõõtmed | 15 × 14 × 8,6 cm |
|---|---|
| Vendor | CHIEFTEC |
| Summary | Chieftec Core BBS-700S. Total power: 700 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 150,500 mm, Peripheral (Molex) power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm |
| AC input frequency | 47 – 63 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Input current | 10 A |
| Max output current (+12V1) | 58 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit |
| Total power | 700 W |
| Cabling type | Non-Modular |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1720 g |
| Width | 140 mm |
| Package weight | 2130 g |
| Harmonized System (HS) code | 84733020 |
| Model name | BBS-700S |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005016 cubm |
| Unit Calculated Weight | 2.13 kg |
| Manufacturer Code | BBS-700S |
| ELKO Code | 1285223 |
| Warranty | 24 |
| Power — AC input frequency | 47 – 63 Hz |
| Power — AC input voltage | 100 – 240 V |
| Power — Combined power (+5Vsb) | 12.5 W |
| Power — Combined power (-12V) | 3.6 W |
| Power — Input current | 10 A |
| Power — Max output current (+12V1) | 58 A |
| Power — Max output current (+3.3V) | 22 A |
| Power — Max output current (+5V) | 22 A |
| Power — Max output current (+5Vsb) | 2.5 A |
| Power — Max output current (-12V) | 0.3 A |
| Power — Power Factor Correction (PFC) type | Active |
| Power — Power protection features | Over voltage/Overload/Short circuit |
| Power — Total power | 700 W |
| Ports & interfaces — Cabling type | Non-Modular |
| Ports & interfaces — CPU power cable length | 650 mm |
| Ports & interfaces — CPU power connector (4+4 pin) | Yes |
| Ports & interfaces — Floppy disk drive connector | Yes |
| Ports & interfaces — Floppy drive power connector | 1 |
| Ports & interfaces — Motherboard power connector | 24-pin ATX |
| Ports & interfaces — Number of SATA power connectors | 6 |
| Ports & interfaces — PCI Express power cable length | 500 mm |
| Ports & interfaces — PCI Express power connectors (6+2 pin) | 4 |
| Ports & interfaces — Peripheral (Molex) power cable length | 150/500 mm |
| Ports & interfaces — Peripheral (Molex) power connectors (4-pin) | 3 |
| Ports & interfaces — SATA power cable length | 150/500 mm |
| Performance — 80 PLUS certification | 80 PLUS Gold |
| Performance — Power supply unit (PSU) form factor | PS/2 |
| Performance — Purpose | PC |
| Design — Cooling type | Active |
| Design — Fan diameter | 120 mm |
| Design — Number of fans | 1 fan(s) |
| Design — Product colour | Black |
| Weight & dimensions — Depth | 150 mm |
| Weight & dimensions — Height | 86 mm |
| Weight & dimensions — Weight | 1720 g |
| Weight & dimensions — Width | 140 mm |
| Packaging data — Package weight | 2130 g |
| Logistics data — Harmonized System (HS) code | 84733020 |
