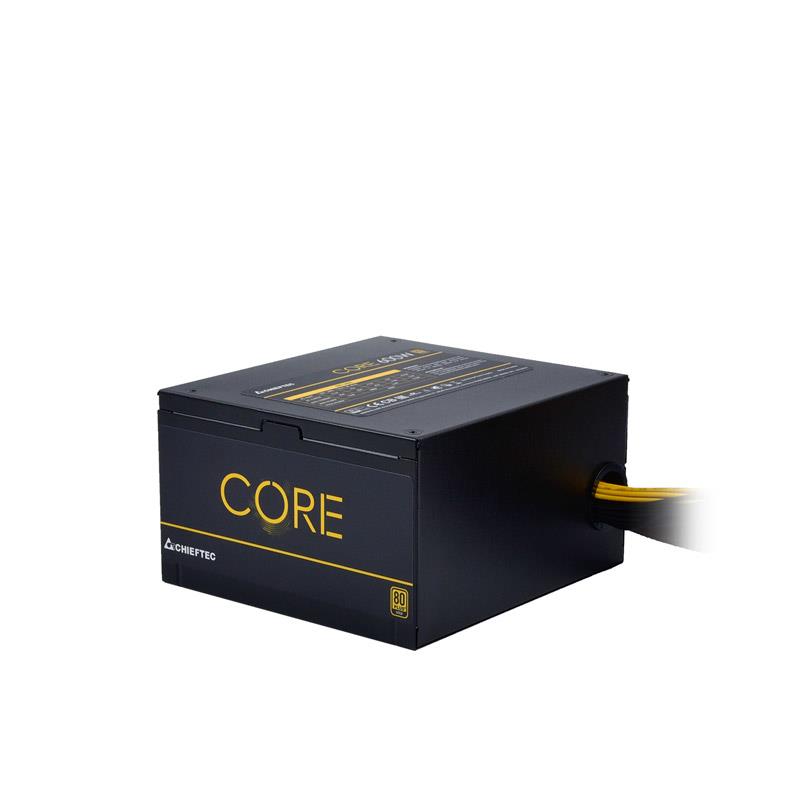

Chieftec Core BBS-600S. Total power: 600 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Laost otsas
Laost otsas
With the Core Series, Chieftec will be bringing a new 80 PLUS Gold certified PSU to market, offering the best possible value-formoney. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. With power output ranging from 500W to 700W, this product is idea for customers who want top-tier power output at the most attractive price.
| Mõõtmed | 15 × 14 × 8,6 cm |
|---|---|
| Vendor | CHIEFTEC |
| Summary | Chieftec Core BBS-600S. Total power: 600 W, AC input voltage: 100 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm |
| AC input frequency | 47 – 63 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Input current | 9 A |
| Max output current (+12V1) | 49 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit |
| Total power | 600 W |
| Cabling type | Non-Modular |
| CPU power cable length | 650 mm |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1670 g |
| Width | 140 mm |
| Package weight | 2080 g |
| Harmonized System (HS) code | 84733020 |
| Model name | Core 600W |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004662 cubm |
| Unit Calculated Weight | 2.02 kg |
| Manufacturer Code | BBS-600S |
| ELKO Code | 1268674 |
| Warranty | 24 |
