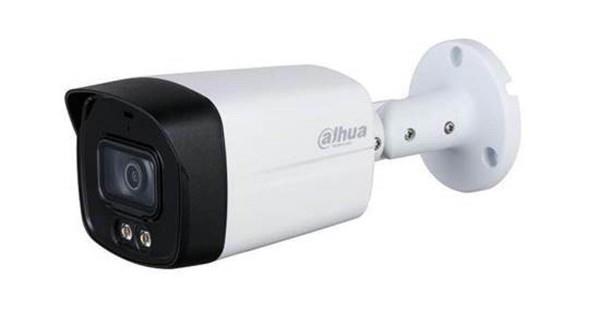

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price.
It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications.
This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.
5Megapixel progressive scan CMOS, 2880 × 1620 @25FPS
Minimum illumination: 0.001 Lux/F1.0, 0 Lux warm light on
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
BLC/HLC/True WDR 120 dB/HLC-Pro
3.6 mm fixed lens (88° HFOV)
Up to 40 meters white LED Illumination. 2 white LED
Built-in mic, audio over coax technology
Bullet design, combined shell, IP67, -40°C~+60°C
Power 12VDC ±30%, 6.4W max
| Kaal | 0,33 kg |
|---|---|
| Vendor | DAHUA |
| Camera design | Bullet |
| Network Camera Type | Fixed/HDTV/Megapixel/Outdoor |
| Resolution | 5 Mega Pixel |
| Net camera resolution | 5 – 7MP |
| Focal length | 3.6 – 4mm |
| Min. Illumination | 0.001 Lux |
| IR Illumination | Yes |
| Electronic Shutter Speed | PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12VDC |
| Power consumption | 6.4 Watts |
| Environment | Outdoor |
| Dimensions | 198.4 mm × 80.2 mm × 76.2 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003312 cubm |
| Product Net Weight | 0.33 kg |
| Unit Calculated Weight | 0.52 kg |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Form factor | Bullet |
| Camera shutter speed | PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s |
| Lens viewing angle, horizontal | 88 ° |
| Minimum illumination | 0.001 lx |
| Sensor type | CMOS |
| Fixed focal length | 3.6 mm |
| B/W night vision distance | 40 m |
| Night vision | Yes |
| Total megapixels | 5 MP |
| Built-in microphone | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 6.4 W |
| Power source type | DC |
| Operating temperature (T-T) | -40°C~+60°C °C |
| Depth | 80.2 mm |
| Height | 76.2 mm |
| Weight | 330 g |
| Width | 198.4 mm |
| Manufacturer Code | HFW1509TLM-A-LED-0360B-S2 |
| ELKO Code | 1363202 |
| Warranty | 36 |
