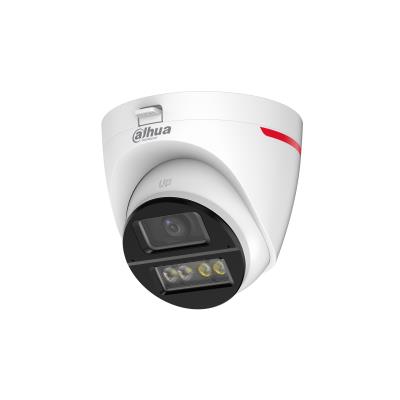

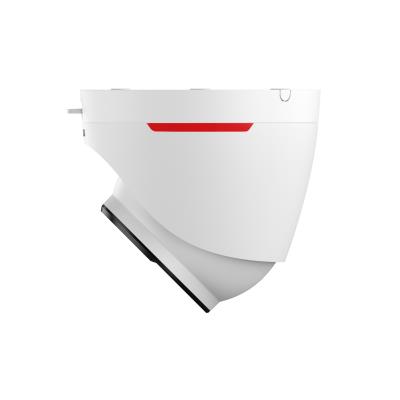

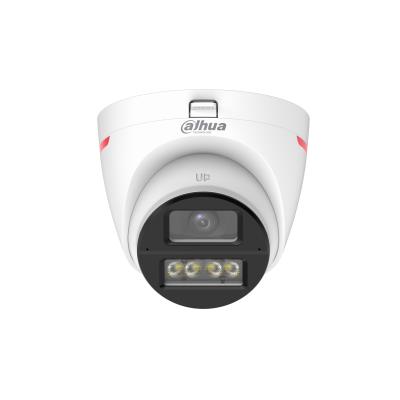

5MP WizColor HDCVI Fixed-focal Eyeball Camera
> * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
> 24/7 color imaging, Max. 25 fps@5MP (16:9 video output)
> AI-ISP.
> Distortion Correction.
> Smart Light+.
> 50 m illumination distance
> Super Adapt,130 dB true WDR, 3D NR
> Built-in Dual Mic
> Quick-to-install eyeball saves installation time.
> 3.6 mm fixed lens (2.8 mm optional)
> CVI/CVBS/AHD/TVI switchable
> IP67, 12 VDC
> 2.8 mm (109.6°)
| Warranty | 36 |
|---|---|
| Unit Calculated Volume | 0.002018 cubm |
| Unit Calculated Weight | 0.46 kg |
| Model | HAC-HDW1549X-A-PRO |
| Camera design | Eyeball |
| Network Camera Type | Outdoor |
| Video interface | HDCVI |
| Resolution | 5 Mega Pixel |
| Net camera resolution | 5 – 7MP |
| Focal length | 3.6 – 4mm |
| Lens Mount | M12 |
| Min. Illumination | 0.0001 Lux |
| Effective pixels | 2880 (H) × 1620 (V) |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12 VDC ± 30% |
| Power consumption | 5.8 Watts |
| Environment | Outdoor |
| Colour | White |
| Dimensions | Φ109.9 mm × 102.2 mm |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.33 kg |
| Connectivity technology | Wired |
| Form factor | Eyeball |
| Product colour | White |
| Camera shutter speed | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s s |
| Camera shutter type | Electronic |
| Minimum illumination | 0.0001 lx |
| Effective sensor resolution | 5 pixels |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
| Fixed focal length | 3.6 mm |
| Built-in microphone | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 5.8 W |
| Diameter | 109.8 mm |
| Weight | 330 g |
| Width | 102.2 mm |
