HAC-HDW1509T-IL-A

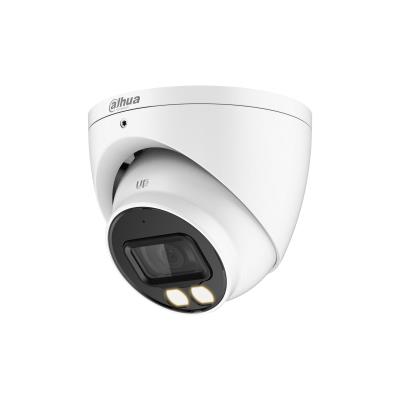

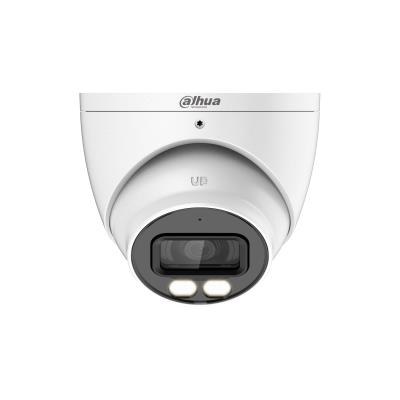

5MP Smart Dual Illuminators Eyeball Camera
> Max 25 fps@5MP (16:9 video output).
> 120 dB true WDR, 3D NR.
> Smart Dual Illuminators.
> 40 m illumination distance.
> Super Adapt.
> Built-in MIC.
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
| Kaal | 0,49 kg |
|---|---|
| Vendor | DAHUA |
| Model | HAC-HDW1509T-IL-A-0360B-S2 |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Video interface | HDCVI |
| Resolution | 5 Mega Pixel |
| Net camera resolution | 5 – 7MP |
| Sensor size | 5MP CMOS |
| Focal length | Varifocal |
| Lens Mount | M12 |
| Min. Illumination | 0.0001 Lux |
| IR Illumination | Yes |
| Effective pixels | 2880 (H) × 1620 (V) |
| Electronic Shutter Speed | PAL: 1/3 s–1/100000 s ; NTSC: 1/4 s–1/100000 s |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12 VDC ± 30% |
| Power consumption | 5.7 Watts |
| Colour | White |
| Dimensions | Φ106.0 mm × 93.6 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002929 cubm |
| Product Net Weight | 0.49 kg |
| Unit Calculated Weight | 0.68 kg |
| Connectivity technology | Wired |
| Number of effective pixels (H x V) | 2880 (H) × 1620 (V) pixels |
| Number of sensors | 1 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| Focal length range | 2.8 mm; 3.6 mm mm |
| B/W night vision distance | 40 m |
| LED type | IR/White |
| 3D NR (Noise Reduction) | Yes |
| Privacy masking | Yes |
| Total megapixels | 5 MP |
| Power consumption (max) | 5.7 W |
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Depth | 139 mm |
| Height | 137 mm |
| Weight | 490 g |
| Width | 148 mm |
| Manufacturer Code | HACHDW1509TILA-0360B-S2 |
| ELKO Code | 1422167 |
| Warranty | 36 |
