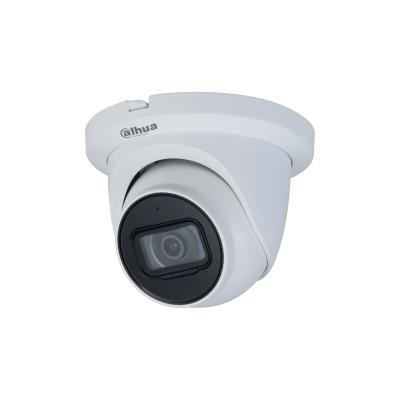

Dahua Technology Lite HAC-HDW1231TMQ-A. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Tilt angle range: 0 – 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Detect distance: 82.8 m, Observe distance: 33.1 m, Recognize distance: 16.6 m
Laost otsas
Laost otsas
| Vendor | DAHUA |
|---|---|
| Camera design | Eyeball |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 2 Mega Pixel |
| Net camera resolution | 2 – 4MP |
| Sensor size | 1/2.8" CMOS |
| Focal length | 2.8 – 3.5mm |
| Lens Mount | M12 |
| Min. Illumination | 0.02 Lux |
| IR Illumination | Yes |
| Effective pixels | 1920(H)×1080(V) |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12V ±30% DC |
| Power consumption | 5.1 Watts |
| Environment | Outdoor |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002835 cubm |
| Product Net Weight | 0.17 kg |
| Unit Calculated Weight | 0.62 kg |
| Summary | Dahua Technology Lite HAC-HDW1231TMQ-A. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Tilt angle range: 0 – 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 82.8 m, Observe distance: 33.1 m, Recognize distance: 16.6 m |
| Certification | CE (EN55032, EN55024, EN50130-4) |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter speed | PAL: 1/25 s-1/100,000 s/PAL: 1/25 s-1/100,000 s s |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Minimum illumination | 0.002 lx |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 90 ° |
| White balance | Auto/Manual |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Detect distance | 82.8 m |
| Focal length range | 2.8 – 3.6 – 6 mm |
| Identify distance | 8.3 m |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 33.1 m |
| Recognize distance | 16.6 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 60 m |
| Number of illumination LEDs | 2 |
| Analog signal format system | PAL |
| Back Light Compensation (BLC) | Yes |
| Frame rate | 30 fps |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080) |
| Supported video modes | 1080p/720p |
| Total megapixels | 2 MP |
| Audio input channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Built-in HDD | No |
| BNC output ports | 1 |
| Mirror | Yes |
| DC output voltage | 12 |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage relative humidity (H-H) | 0 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Diameter | 121.9 mm |
| Height | 99.1 mm |
| Weight | 420 g |
| Package weight | 620 g |
| Number of cameras | 1 |
| Manufacturer Code | HAC-HDW1231TMQ-A-0280B |
| ELKO Code | 1371359 |
| Warranty | 36 |
