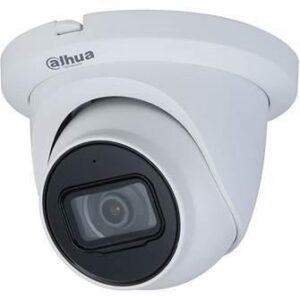

Dahua Technology Lite HAC-HDW1200T-IL-A. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Number of effective pixels (H x V): 1920 x 1080 pixels. Detect distance: 41.1 m, Observe distance: 16.5 m, Recognize distance: 8.3 m
5 laos
5 laos
The Lite Series is a great choice for consumers looking for high quality
monitoring products at a reasonable price. Its low cost and high
performance make it ideal for residential areas and SMB solutions. This
series is equipped with a wide range of technologies, such as full-color
and starlight, providing various solutions for different scenarios.
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on
the white light when Perimeter Protection/SMD Plus function of AI XVR
detects a target in the rule area to capture clear, vivid images. When the
target leaves the rule area, the camera automatically switches over from
the white light to the IR light to significantly reduce light pollution.
Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI
camera. It adopts a unique audio processing and transmission
technology that restores source audio and eliminates noise, ensuring
the quality and reliability of the audio information that is collected. This
becomes important for video surveillance applications that use audio
information as a type of supplementary evidence.
Super Adapt
With its intelligent algorithm, the camera automatically adjusts its
parameters to provide optimal performance and vivid images.
Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests.
Its enclosure is both dust-proof and waterproof, and can function
normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some
power supplies) and a wide voltage range, making it suitable for a variety
of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power)
which are simultaneously transmitted over a coaxial cable. Dual-way
data transmission allows the HDCVI camera to interact with the XVR to
perform various actions such as sending control signals and triggering
alarms. HDCVI technology also supports PoC, which makes the camera
easy and quick to install.
* Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time
without transmission loss. It supports transmission distances up to 700
m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300
m through UTP cables. The results were obtained and verified through
rigorous testing in Dahua’s test laboratory.
| Vendor | DAHUA |
|---|---|
| Model | HAC-HDW1200T-IL-A-0280B-S6 |
| Camera design | Eyeball |
| Network Camera Type | Fixed/HDTV/Megapixel |
| Video interface | HDCVI |
| Resolution | 2 Mega Pixel |
| Net camera resolution | 2 – 4MP |
| Sensor size | 2 MP CMOS |
| Focal length | 3.6 – 4mm |
| Lens Mount | M12 |
| Min. Illumination | 0.01 Lux |
| IR Illumination | Yes |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s |
| Microphone | Built-in |
| Number of channels | 1 |
| Power supply requirements | 12 VDC ± 30% |
| Power consumption | 4.1 Watts |
| Dimensions | φ106.0 mm × 99.2 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002818 cubm |
| Product Net Weight | 0.45 kg |
| Unit Calculated Weight | 0.65 kg |
| Summary | Dahua Technology Lite HAC-HDW1200T-IL-A. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Number of effective pixels (H x V): 1920 x 1080 pixels. Detect distance: 41.1 m, Observe distance: 16.5 m, Recognize distance: 8.3 m |
| Built-in light | Yes |
| Certification | CE-LVD: EN 62368-1; |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Waterproof |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/30 – 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 129 ° |
| Lens viewing angle, horizontal | 102 ° |
| Lens viewing angle, vertical | 60 ° |
| Number of Privacy masking areas | 8 |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 78 ° |
| White balance | Area white balance/Auto |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
| Number of sensors | 2 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.5 m |
| Detect distance | 41.1 m |
| Fixed focal length | 2.8 mm |
| Fixed focus | Yes |
| Identify distance | 4.1 m |
| Maximum aperture number | 2 |
| Observe distance | 16.5 m |
| Recognize distance | 8.3 m |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/960 x 480/960 x 576 |
| Supported video modes | 1080p |
| Total megapixels | 2 MP |
| Audio input channels | 1.0 channels |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Built-in HDD | No |
| BNC output ports | 1 |
| Mirror | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 4.1 W |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage relative humidity (H-H) | 0 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Diameter | 106 mm |
| Height | 99.2 mm |
| Weight | 450 g |
| Package weight | 580 g |
| Number of cameras | 1 |
| Manufacturer Code | HAC-HDW1200T-IL-A-0280B-S6 |
| ELKO Code | 1425255 |
| Warranty | 36 |
