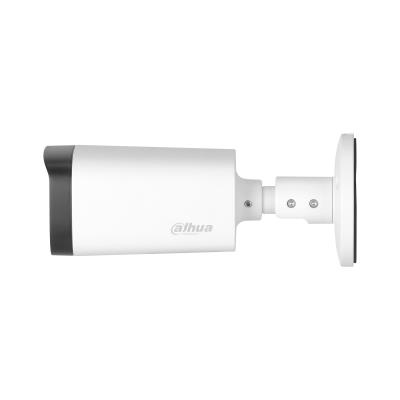

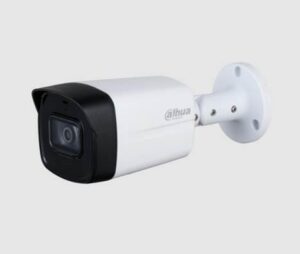

Dahua Technology Lite DH-HAC-HFW1231R-Z-A. Type: CCTV security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Detect distance: 132.1 m, Observe distance: 52.9 m, Recognize distance: 26.4 m
4 laos
4 laos
Lite Series is suitable for users who requires high quality monitoring products at areasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.
Starlight
With the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
* Audio input is available for some models of HDCVI cameras.
Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Super Adapt
Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.
Advanced 3D NR
3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.
Smart Illumination
The camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
| Kaal | 0,55 kg |
|---|---|
| Vendor | DAHUA |
| Model | HAC-HFW1231R-Z-A-2712 |
| Camera design | Bullet |
| Network Camera Type | Outdoor |
| Video interface | HDCVI |
| Resolution | 2 Mega Pixel |
| Net camera resolution | 2 – 4MP |
| Sensor size | 1/2.8" |
| Focal length | Varifocal |
| Lens Mount | M14 |
| Min. Illumination | 0.002 Lux |
| IR Illumination | Yes |
| Effective pixels | 1920 (H) × 1080 (V) |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12V DC±30%; |
| Power consumption | 9.4 Watts |
| Environment | Outdoor |
| Colour | White |
| Dimensions | 209.6 × 90.4 × 90.4mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002883 cubm |
| Product Net Weight | 0.55 kg |
| Unit Calculated Weight | 0.71 kg |
| Summary | Dahua Technology Lite DH-HAC-HFW1231R-Z-A. Type: CCTV security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 132.1 m, Observe distance: 52.9 m, Recognize distance: 26.4 m |
| Certification | CE (EN55032:2015, EN 61000-3-2:2014, EN |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 130 dB |
| Placement supported | Outdoor |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/25 – 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 123 ° |
| Lens viewing angle, horizontal | 102 ° |
| Lens viewing angle, vertical | 53 ° |
| Minimum illumination | 0.002 lx |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 90 ° |
| White balance | Auto |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Closest focusing distance | 0.5 m |
| Detect distance | 132.1 m |
| Detect distance (tele) | 132.1 m |
| Detect distance (wide) | 47.6 m |
| Focal length range | 2.7 – 12 mm |
| Focus | Motorized |
| Identify distance | 13.2 m |
| Identify distance (tele) | 13.2 m |
| Identify distance (wide) | 4.76 m |
| Maximum aperture number | 1.5 |
| Number of lenses | 1 |
| Observe distance | 52.9 m |
| Observe distance (tele) | 52.9 m |
| Observe distance (wide) | 19 m |
| Recognize distance | 26.4 m |
| Recognize distance (tele) | 26.4 m |
| Recognize distance (wide) | 9.5 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 80 m |
| Number of illumination LEDs | 4 |
| Analog signal format system | PAL |
| Back Light Compensation (BLC) | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/960 x 480/960 x 576 |
| Supported video modes | 1080p |
| Total megapixels | 2 MP |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Built-in HDD | No |
| BNC output ports | 1 |
| Mirror | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 9.4 W |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage relative humidity (H-H) | 0 – 95 % |
| Storage temperature (T-T) | -30 – 60 °C |
| Depth | 90.4 mm |
| Height | 90.4 mm |
| Weight | 550 g |
| Width | 209.6 mm |
| Package weight | 760 g |
| Number of cameras | 1 |
| Manufacturer Code | HAC-HFW1231R-Z-A-2712 |
| ELKO Code | 1451664 |
| Warranty | 36 |
