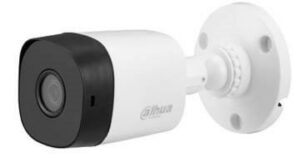

2MP IR HDCVI Fixed-focal Bullet Camera
> Max. 30 fps@1080p.
> Smart IR Illumination.
> 30 m illumination distance.
> 3.6 mm fixed lens (2.8 mm, 6 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
> Focal Length / Field of View: 3.6 mm / 80°
| Kaal | 0,15 kg |
|---|---|
| Vendor | DAHUA |
| Model | HAC-B1A21-U-0360B |
| Camera design | Bullet |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Video interface | HDCVI |
| Resolution | 2 Mega Pixel |
| Focal length | 3.6 – 4mm |
| Lens Mount | M12 |
| Min. Illumination | 0.002 Lux |
| IR Illumination | Yes |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s |
| Power options | 12V |
| Power supply requirements | 12 VDC ± 30% |
| Power consumption | 2.8 Watts |
| Environment | Outdoor |
| Colour | White |
| Dimensions | 146.1mm × 70.0 mm × 69.8mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001024 cubm |
| Product Net Weight | 0.15 kg |
| Unit Calculated Weight | 0.24 kg |
| Connectivity technology | Wired |
| Form factor | Bullet |
| Product colour | White |
| Camera shutter speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s s |
| Camera shutter type | Electronic |
| Minimum illumination | 0.002 lx |
| Effective sensor resolution | 2 pixels |
| Fixed focal length | 3.6 mm |
| DC output voltage | 12 |
| Power consumption (max) | 2.8 W |
| Depth | 70 mm |
| Height | 146.1 mm |
| Weight | 150 g |
| Width | 69.8 mm |
| Manufacturer Code | HAC-B1A21-U-0360B |
| ELKO Code | 1439087 |
| Warranty | 36 |
